Domestic UFN3-70B413 Fork Sensor Slot Type Ultrasonic Detector with 2-Meter Cable Replacement for SICK
Specification:
- Functional principle detail: ultrasonic detection principle
- Dimensions (W x H x D): 18 mm x 47.5 mm x 92.5 mm
- Housing design: Fork shaped
- Fork width: 3 mm
- Fork depth: 69 mm
- Minimum detectable object (MDO): Gap between Labels / Size of labels: 2 mm (depends on the label thickness)
- Label detection: yes
- Adjustment: Plus/minus button (Teach-in, sensitivity, light/dark switching)
- Teach-in mode: 2-point teach-in; teach-in dynamic
- Supply voltage: 10VDC - 30VDC (Limit values, reverse-polarity protected, operation in short-circuit protected network: max. 8 A.)
- Ripple: < 10 % (May not exceed or fall below UV tolerances)
- Current consumption: 40mA (without load)
- Switching frequency: 1.5kHz (With light/dark ratio 1:1, typical, depending on material and speed)
- Response time: 250µs (Signal transit time with resistive load)
- Switching output: PNP, NPN
- Switching output (voltage):
PNP: HIGH = UV ≤ 2V / LOW approx. 0V
NPN: HIGH = approx. UV / LOW ≤ 2V
- Switching mode: Light/dark switching
- Output current max.: 100mA (output current minimal 0.03mA)
- Initialization time: 100ms
- Connection type: Male connector M8, 4-pin
- Protection class: III (Reference voltage DC 50V)
- Circuit protection: output Q short-circuit protected; interference pulse suppression
- Enclosure rating: IP65
- Weight: + 95g
- Housing material: metal, aluminum

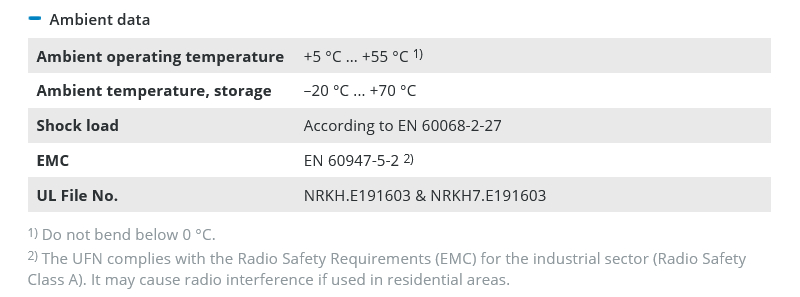

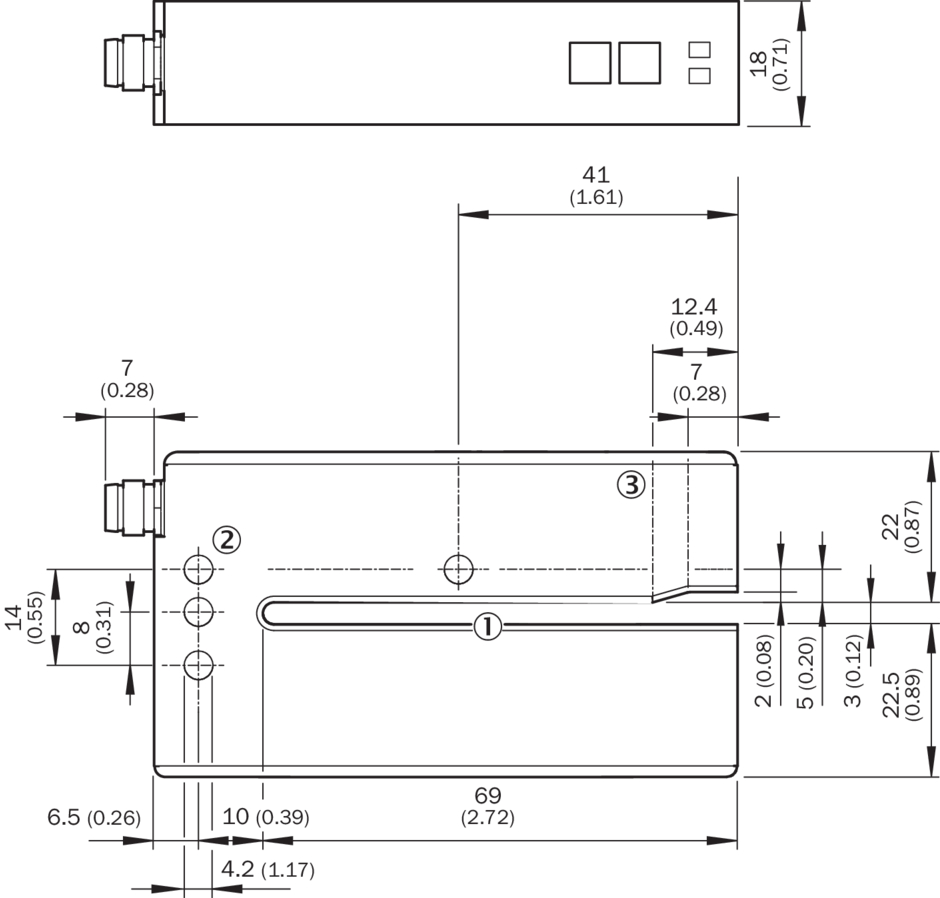

Dimensional drawing UFnext - Plus/minus buttons
Dimensions in mm (inch)
① Fork opening: fork width 3 mm, forks depth 69 mm
② Mounting hole, diameter 4.2 mm
③ Detection axis
Adjustments Adjustment: teach-in via plus/minus buttons (WFxx-B416)
① Function signal indicator (yellow), switching output
② Function indicator (red)
③ "+"/"–" buttons and function button

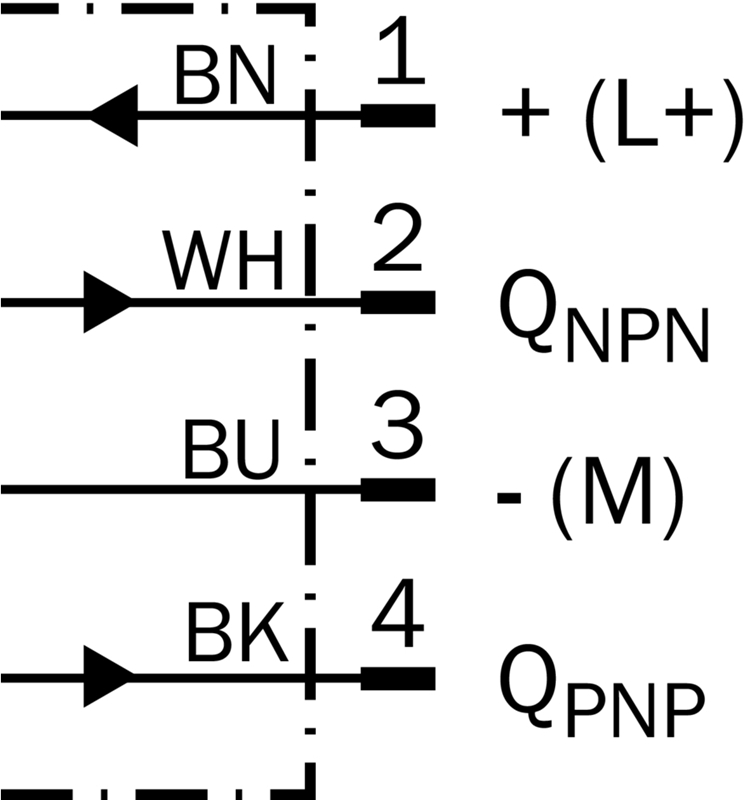

Connection Diagram Cd-086:

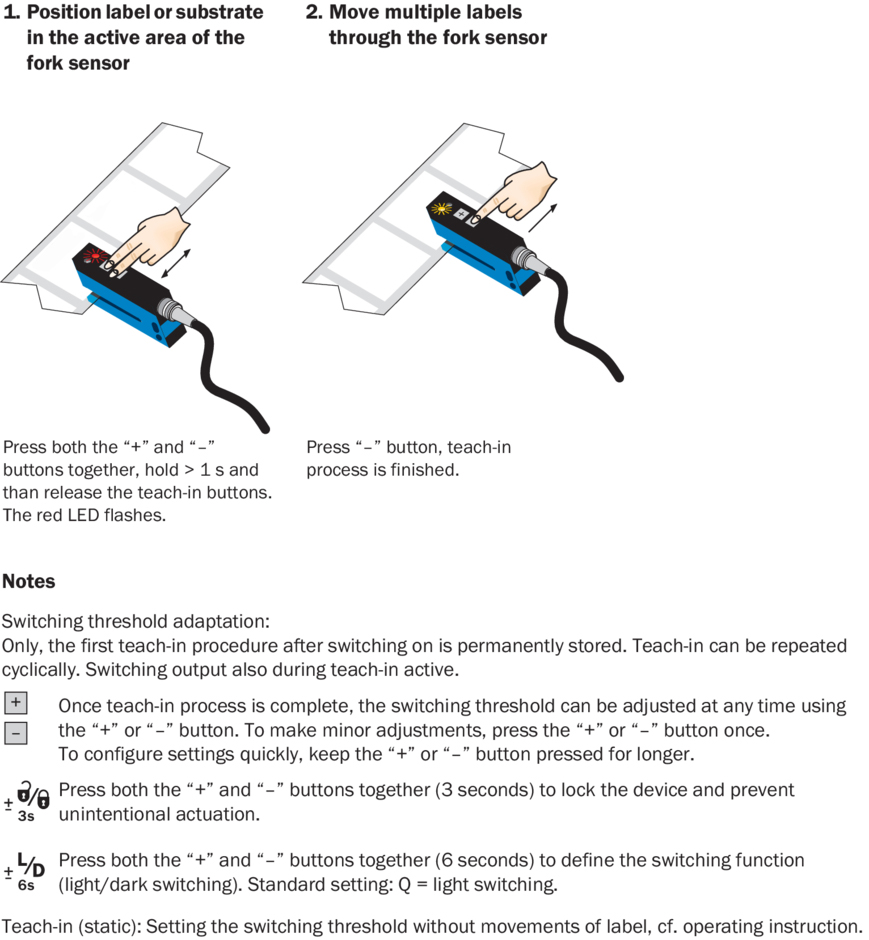

Concept of Operation Teach-in Dynamic via plus/minus buttons:
Package Included:
- 1 x Fork Sensor
- 1 x 2-Meter Cable
