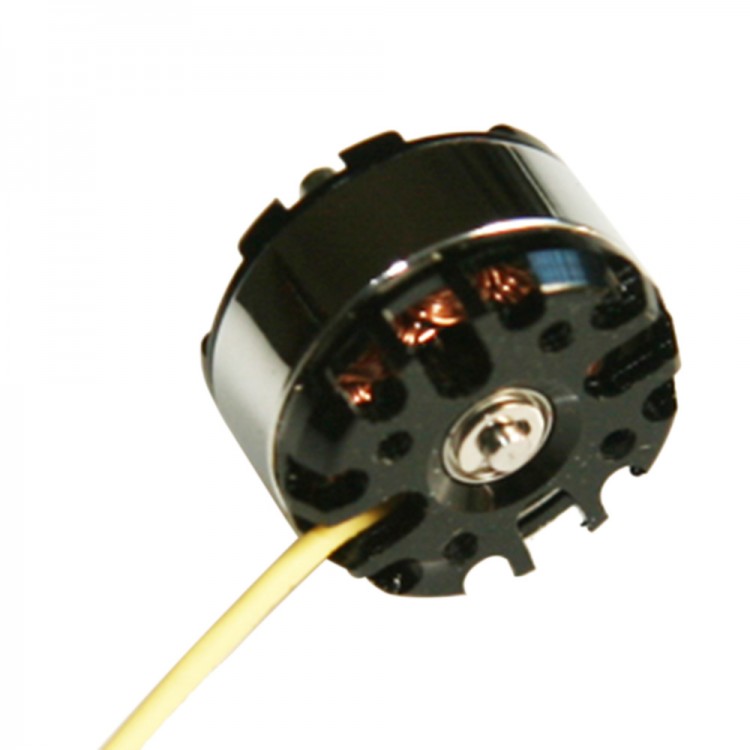

DP03 Brushless Outrunner Motor 1S Version 7800KV 1.5mm Shaft for Mini Multicopter Quadcopter RC Toys
Specification:
- Weight: 3.5g
- KV: 7800
- Idle current: 0.18A/3.5V
- Max current:2.95A
- Shaft:1.5mm
Test result on 75mm propeller:
- Full throttle 45g/2.95A/3.7V
- Half throttle 21g/1.2A/3.7V
- Below half throttle 13g/0.65A/3.7V

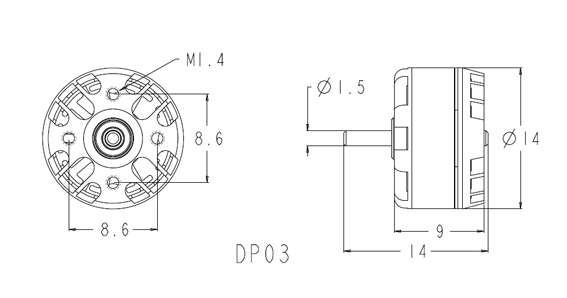

Note: As it is a very small motor, propeller saver is not recommended, because the propeller saver will be too heavy compare with such a small motor, you can use a plastic tube on the shaft and push the propeller onto the shaft. Diameter of the motor is 14mm Shaft is 1.5mm Screw hole spacing is 8.5mm, the screw is M1.4*3
Package Included:
- 1 x Motor
