DPA-2698 2-CH Function Generator Amplifier 0-10MHz 5W*2 for DDS Functional Signal Generator
Description:
Made of high-strength aluminum alloy, the DPA-2698 dual-channel function generator amplifier is strong and durable, featuring excellent heat dissipation. The voltage amplitude of the input signal can be amplified by 2 times. The maximum current of each channel can reach to 0.5A. It works in the range of 0 to 10MHz.
It can be used together with our signal generators and signal generators produced by other manufacturers. It is perfect for teaching instruments, industrial control, product line tests, metal detection, medical therapy, medical beauty and other scopes.
Technical Parameters:
- Signal Bandwidth: 0-10MHz
- Input Amplitude Range: 0-20Vpp
- Output Amplitude Range: 0-25Vpp
- Voltage Gain: 6dB (Magnify by 2 times)
- Maximum Output Current: 0.5A
- Maximum Output Power: 5W*2
- Output Impedance: ≤5Ω
- Output Phase: The same phase as that of input
- Distortion: ≤ 1%
- Flatness of Output Signal: ±1dB
- Input Power Supply Voltage: DC12V ± 10%
- Maximum Input Current: 5A
- Size: 103.3 x 80 x 37.6mm
- Weight: 351g

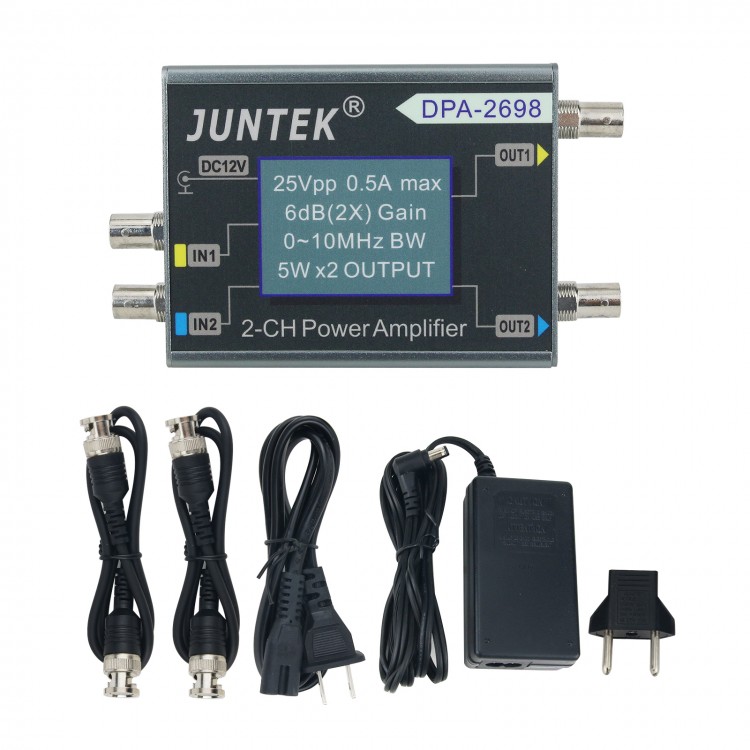

Package Included:
- 1 x DPA-2698 2-CH Function Generator Amplifier
- 1 x 12V 5A Power Adapter
- 2 x Q9-Q9 Cables
