DPG-2416R 240mm Nodal Rail Quick Release Plate Multi-Purpose For Arca Style Really Right Stuff Clamp

DPG-2416R 240mm Nodal Rail Quick Release Plate Multi-Purpose For Arca Style Really Right Stuff Clamp

Description:

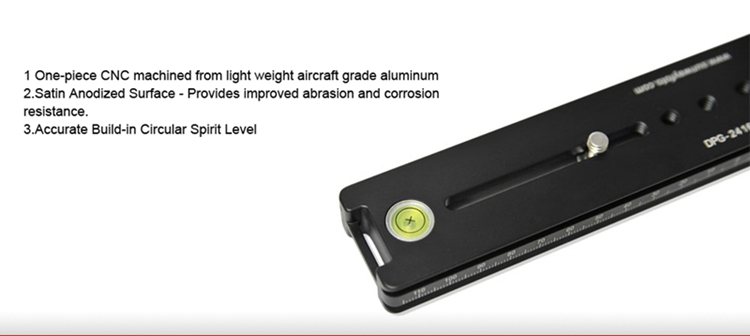

DPG-2416R Multi-Purpose Rail, one piece CNC cutting machined from light weight aircraft-grade aluminum, stain anodized surface finish for better abrasion and corrosion resistant. For Arca-Swiss style.

The most important function of this product is that it can accurately take the lens axis as the nodal point when in panoramic photography. So that to maximize the realization of seamless panoramic shoot. At the same time, when in close-up photography, this product allows the large-scale back/front shifting adjustment. So that can reduce the moving of the tripod and make your shooting efficiently.

Features:
- Double dovetail.

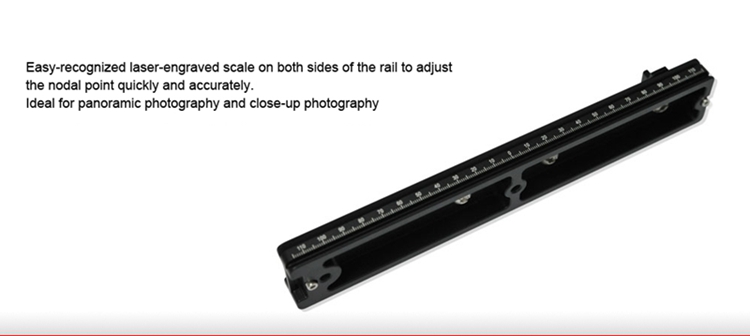

- Both sides of the rail are equipped with easy-recognized laser-engraved scale, which you can adjust the nodal point conveniently and accurately.

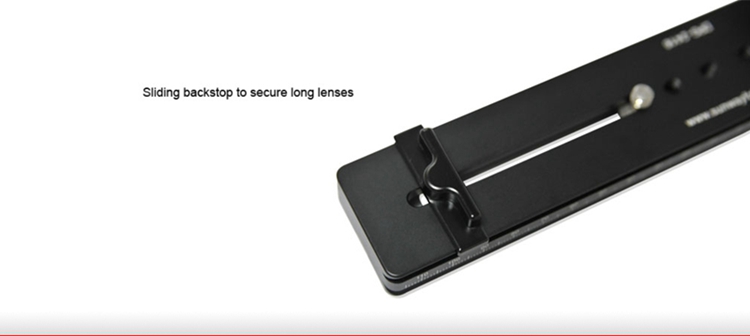

- This rail having a movable stop bar to accurately position your camera and re-create the same setup each time.
- The strap mounting hole functionally provide one more hole for fasten the strap or wrist strap.

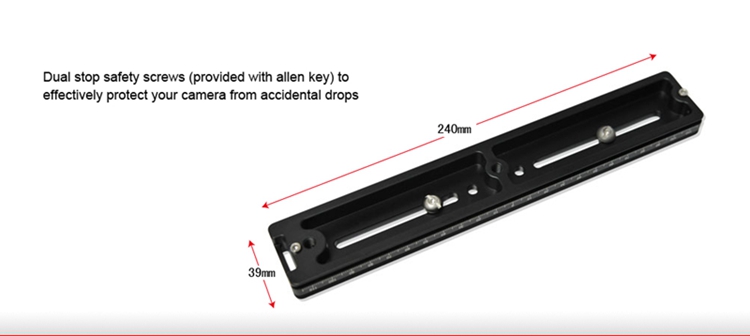

- Integrate two safety stop mounting holes on the back of the plate. (provides safety stop screws).
- This design provides many positions to install the screws and have very good compatibility. So that can be used for most of the cameras that available on market.

Specifications:
- Model: DPG-2416R
- Width: 39mm
- Thickness: 16mm
- Length: 240mm
- Net Weight: 194g
- Mounting thread: UNC 1/4"
- Groove length: 64mm/76.5mm
- Suitable for all Arca style clamps, Really Right Stuff clamps (including its lever clamps)

Package Included:
- 1 x Set of Rail
