DPM8605 60V 5A Constant Voltage Current Power Supply DC-DC Step-down Communication Power Supply
Description:
DPM8600 series programmable DC power supply can digitally display the output voltage, current, temperature and other parameters. They have two different output statuses of constant voltage and constant current. They are especially suitable for use in factory equipment power supply, product aging and debugging, solar charging, LED lamp bead driving and battery charging and discharging.
DPM8600 series power supplies support TTL serial communication with standard "TTL to USB" communication line.
DPM8600-485 series power supplies support 485 communications with built-in "isolated 485 to TTL module".
Features:
- Based on the switching power supply technology of BUCK structure, the working frequency is up to 150KHz, and with the minimum differential voltage of 0.5V can still work stably
- Input DC voltage 10-75V, with an AC-DC (AC to DC) switching power supply or battery, you can combine them into a high-precision digital adjustable DC power supply or charger
- The output voltage is 0-60V digitally continuously adjustable, the minimum voltage resolution is 10mV, and the ripple is lower than 50mVpp
- The output current is divided into 0-5A/8A (minimum resolution 1mA), 2 different models, the current is digital and continuously adjustable

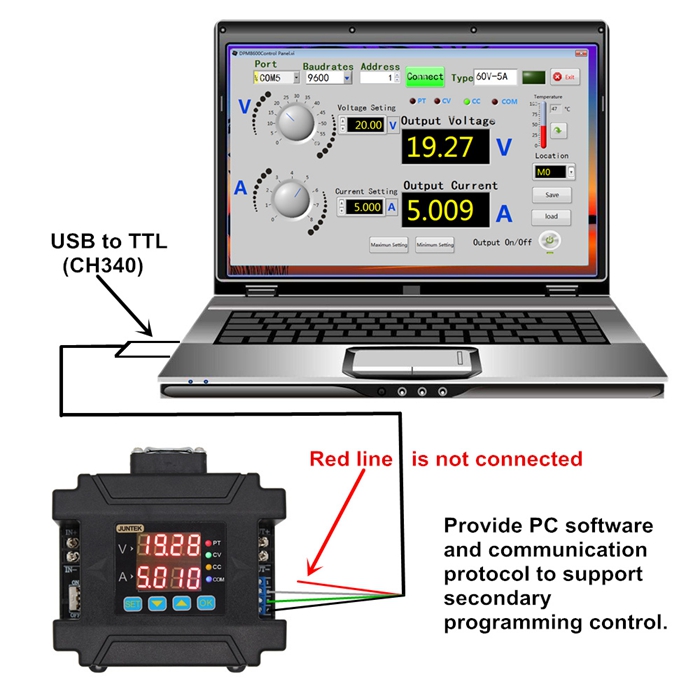

- Provide PC software and communication protocol to support secondary programming control
- The communication protocol is divided into a simple communication protocol and a MODBUS-RTU communication protocol, which can be freely selected in the machine menu
- It can set the power-on automatic output, with its own temperature-controlled fan, intelligently adjust the speed, and it can automatically stop output when over-temperature
- With quick discharge function, the voltage response speed is adjusted very fast
- Automatically save parameters when power is off, there are 10 groups of M0~M9 storage locations, which can be saved and recalled at any time

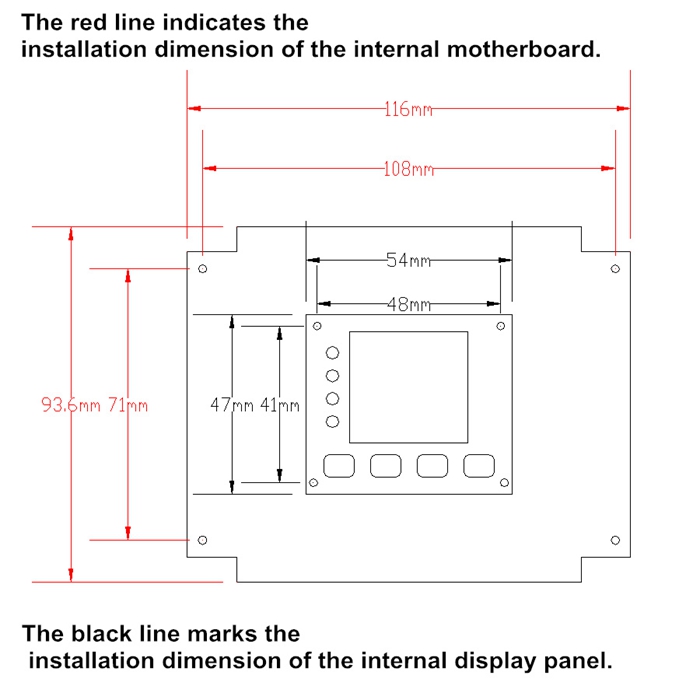

- The internal structure is simple, and it is divided into two parts: the main board and the display board. Removing the shell allows for easy integration into your own device
Package Included:
- 1 x DC-DC Power Supply
- 1 x USB to TTL Data Cable
- 1 x User Manual
Download User Manual & Software Here:
http://68.168.132.244/DPM8600.rar
