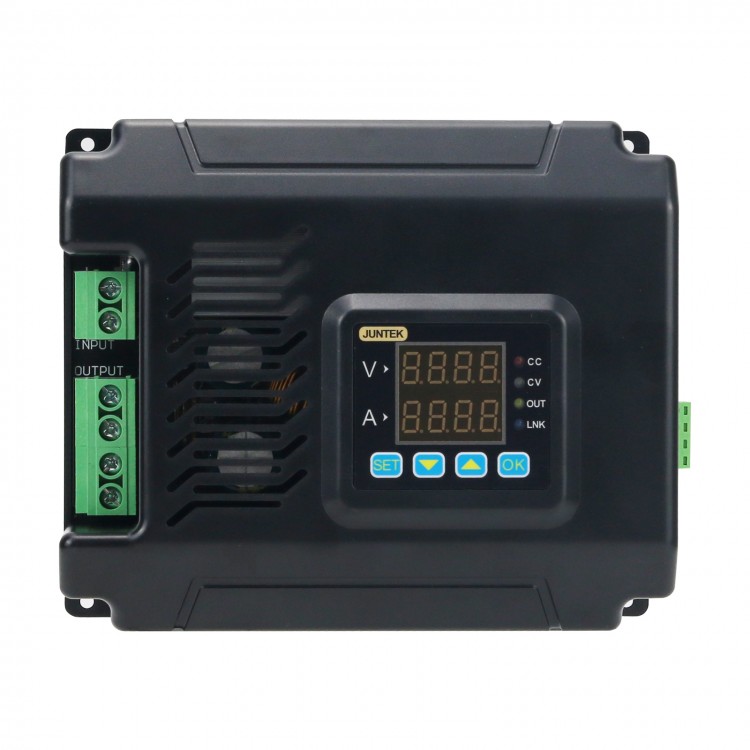

DPM8650-485 DC-DC Power Supply 60V 50A Programmable Communication Power Voltage Regulator Converter
Specification:
Input voltage: 10-75V
Output voltage: 0-60V
Output current: 0-50A
Wireless function: Yes
Wireless remote controller: No
Communication method: isolated 485
Power effect: CV is less than 0.5%+10mV, CC is less than 1%+5mA
Load effect: CV is less than 0.5%+10mV, CC is less than 1%+5mA
Output ripple: 50mVpp (input 40V, output 12V, 7A)
Typical efficiency: 92% (input 40V, output 30V, 7A)
Response time: <50ms
Communication channel: 01-30
Mailing address: 00-99
Storage operation: M0-M9 total 10 sets of parameter storage
Protection type: PT (over temperature protection)
Application environment temperature: onboard radiator, fan cooling
Product size: 180*150*77mm
Features:
1. Wireless Programmable Power Supply: Automatic storage after power failure, continuously adjustable parameters, 0A-50A.
2. Various Power Supply Control Methods: Wireless control terminal adjustment, computer software and automatic communication control, and use the buttons on the power supply to adjust.
3. High-quality Flame-retardant Shell: The shell uses high-quality ABS material, which has high strength, corrosion resistance and high temperature resistance.
4. High-speed Air-cooled Heat Dissipation: Each power supply is designed with multiple hollow vents and high-speed fans, which can quickly dissipate heat.
Package List:
1 Set of DPM8650-485 DC-DC Power Supply
