DPS-6015 Programmable DC Power Supply Module Isolate 485 232 Isolation NC DC-DC

Availability: In stock, usually dispatched in 1 business day

  • Price:$85.94
  • Price in reward points: 859 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $84.22 $82.50 $79.92 $76.49 Contact US
Quantity:

DPS-6015 Programmable DC Power Supply Module Isolate 485 232 Isolation NC DC-DC

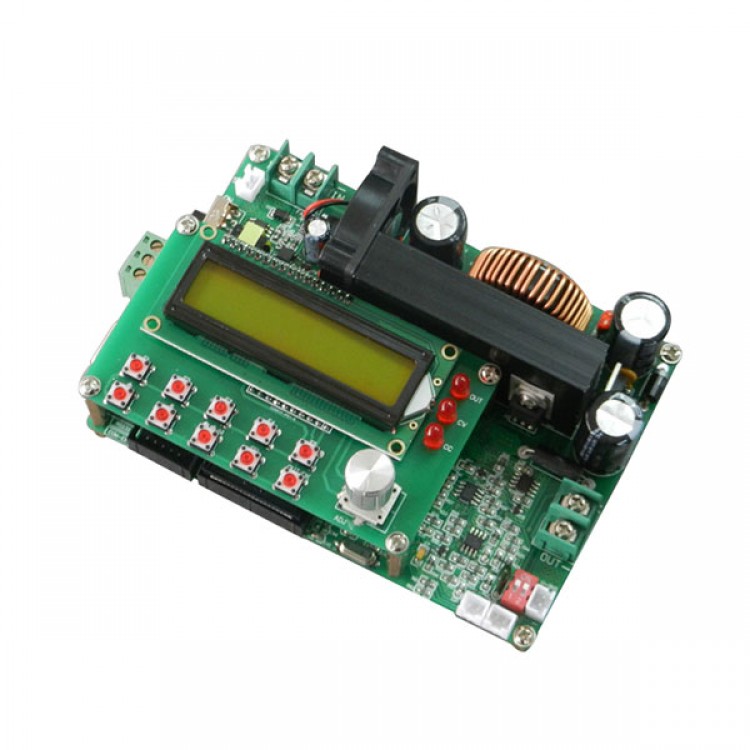

DPS-6015 is single output programmable switch power supply. Its specification is 60V, 15A, 900W. It is designed by DC-DC modularization. Small size and  high output power. Besides, it is equipped with TTL serial interface, provide a serial communication protocol, support secondary development. We can provide versatile solutions according to your design and test requirements.

Features:
- Based on BUCK structure of switch power supply technology, the work frequency can reach to150 KHZ
- DC input voltage range: 15V~ 80V, which is suitable for multiple kinds of pre-stage input power supplies
- Combined with the operating buttons and multifunction encoders, it is convenient and easy to use
- High accuracy and high resolution: 10 mV / 10 mA
- Low ripple and low noise
- Indicator light: constant current( CC), constant voltage (CV) and output state (ON)
- LCD1602 display
- Adjust voltage and current by adjustment knob and keys
- Support measuring and displaying output voltage, output current, output power, output electric quantity (AH) and working time
- The minimum pressure differential is 2V, the module can still work steadily under the circumstance
- With output turn off function key, users can turn on or off  the output flexibly
- 10 groups of parameter settings of M0-M9, which can be conveniently called out at any moment
- Prompt for operation or alarm function of onboard buzzer
- Convenient and simple three-phase charge intelligent control function of storage battery
- With TTL serial communication, and improved communication protocol so as to be convenient for centralized control
