DR-512 Handheld DMX Recorder Supports 255 Effects to be Recorded for Home Stage Performance KTV

DR-512 Handheld DMX Recorder Supports 255 Effects to be Recorded for Home Stage Performance KTV

Description:
DR-512 is an offline controller which is very suitable for stage performances, KTVs, bars, exhibition halls with sand tables, advertising signs, building lighting, debugging and maintenance of lighting equipment, etc. It is powerful because it supports DMX signal recording, offline playing, channel test, signal amplification, signal packet loss test, and line troubleshooting.

Advantages:
- This is a multi-functional tool that integrates DMX signal recording, playing, DMX signal analysis, DMX signal amplification, and packet loss tests on signal lines.
- 1 set of DMX512 signal input and play interface can control 512 channels, support multiple simultaneous use, and can be expanded to 1024, 2048 and other channels.
- The DMX recorder can record the effects of devices with DMX output (not limited to ARTNET protocol software, consoles and mobile phones)
- Can be connected to DMX controllers. You can recall the recorded effects through a mobile phone/computer/console.
- 32G SD card can record 255 effects to meet the application needs of different scenarios.
- The DMX recorder with channel mapping function (channel 1 for effect and channel 2 for total dimming).
- The current DMX channel value can be displayed. And the total duration of the effect and the running time of the current effect can be displayed.
- DMX512 signal detector: Three indicators (number of channels, channel value and refresh rate) can be used to determine whether the signal line has an output or not. It's an essential tool for troubleshooting lights.
- It can perform packet loss tests on signal lines (to evaluate the stability of lighting lines).

Features:
- It can record effects with DMX output, not limited to ARTNET protocol software, consoles, mobile phones and other devices
- DR-512 can be used with WIFI-DMX family products. It is convenient to use recorded effects through a mobile phone, and enable visual operation
- Up to 255 effects
- Intelligently identifies the refresh rate of external devices
- 1-way DMX512 signal recording
- Chinese and English interfaces for overseas users
- Channel test signal amplification
- Ideal for packet loss test and troubleshooting
- Suitable for stage performances, KTVs, bars, exhibition halls with sand tables, advertising signs, building lighting, debugging and maintenance of lighting equipment, etc.

Specifications:
- Connection: Via a DMX cable
- Degree of protection: IP20
- LED indicator lights: With
- Supported protocols: DMX
- OLED display: With
- Operation: Via buttons, or call via tablet/phone/desktop computer
- Maximum number of recorded effects: 255
- Output interface: 3-pin XLR
- Output refresh rate: 30FPS
- Input voltage: 5V (via USB/DC)
- Configuration software: For WIFI-DMX PRO and WIFI512
- Input current: 500mA
- Power: 2.5W
- Ambient operating temperature: 0°-50°C; 32°-122°F
- Ambient operating humidity: 5-95% (non-condensing)
- Body material: Alloy
- Dimensions: 90mm x 40mm x 40mm/3.5" x 1.6" x 1.6" (LxWxH)
- Weight: 122G/0.3LB

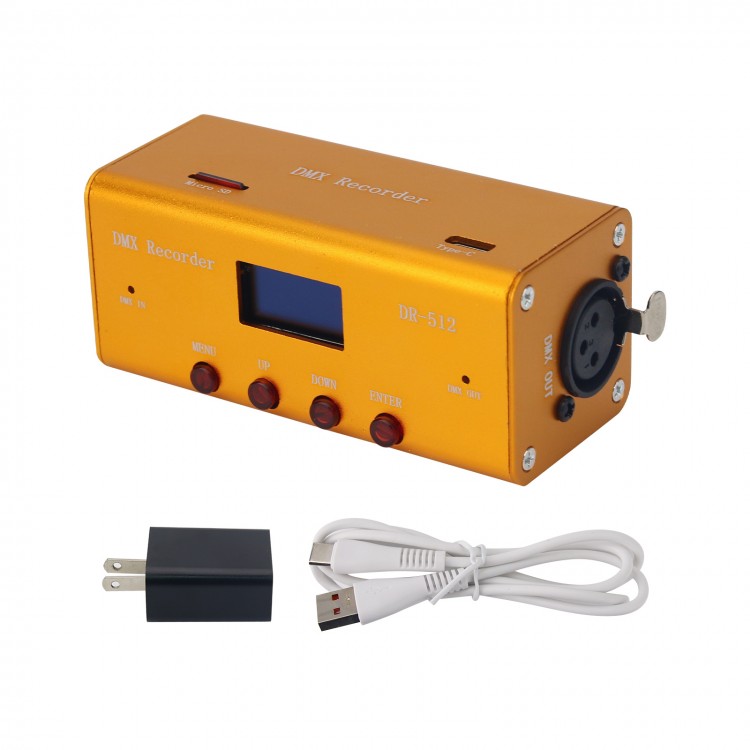

Package Included:
- 1 x DMX Recorder
- 1 x USB to Type-C Cable
- 1 x Adapter

Packaging Details:
- Weight: 0.4kg

Attention:
- Do not expose the device to rain or moisture. It is for indoor use only.
- Do not remove the lid as there are no user-serviceable parts inside.
- Never connect the DMX GND to an electrical "ground" connection.
