DRAGINO LPS8 Indoor IoT Gateway For LoRaWAN SX1308 LoRa Concentrator Version 915 For US915 AU915

DRAGINO LPS8 Indoor IoT Gateway For LoRaWAN SX1308 LoRa Concentrator Version 915 For US915 AU915

Description:
The LPS8 is an open source gateway for LoRaWAN. It lets you bridge LoRa wireless network to an IP network via WiFi or Ethernet. The LoRa wireless allows users to send data and reach extremely long ranges at low data-rates.

The LPS8 uses packet forwarder for Semtech and fully compatible with protocol for LoRaWAN. It includes a SX1308 LoRa concentrator, which provide 10 programmable parallel demodulation paths.

LPS8 has pre-configured standard frequency bands for LoRaWAN to use for different countries. Users can also customized the frequency bands to use in their own LoRa network.

Version 915: Effective frequency range 902Mhz-928Mhz. Suitable for US915, AU915, AS923, and KR920 frequency bands.

Features:
- Open Source system for OpenWrt
- Managed by Web GUI, SSH via LAN or WiFi
- Emulates 49x LoRa demodulators
- For LoRaWAN Gateway
- 10 programmable parallel demodulation paths

Applications:
- Smart Buildings & Home Automation
- Logistics and Supply Chain Management
- Smart Metering
- Smart Agriculture
- Smart Cities
- Smart Factory

Specifications:
LoRa Spec:
- 1 x SX1308 + 2 x 1257 LoRa Transceiver

General Specification:
- 10M/100M RJ45 Ports x 1
- 1 x 2.4G WiFi (802.11 bgn)
- 1 x USB host port
- Power Input via USB Type-C: 5V, 2A

Dimensions and Weight:
Device:
- Size:120 x 120 x 30 mm/4.7 x 4.7 x 1.2" (per piece)
- Weight: 187g/0.4 lb

Package Included:

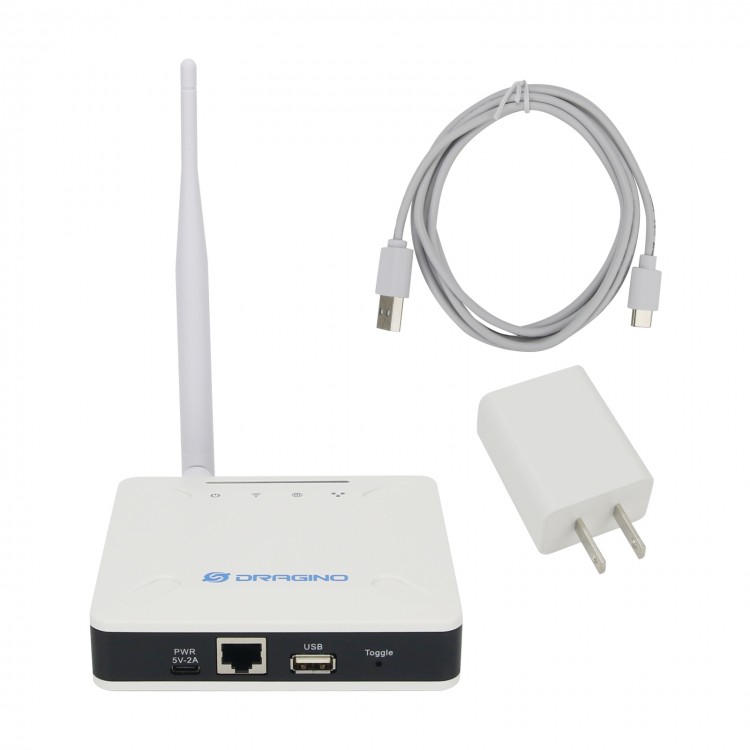

- 1 x Set of Gateway

Note:
- It cannot be used for helium mining.
