Drone Transmitter Receiver Kit 1.2GHz 1W Transmitter TX-120015 & 1.2GHz Receiver RX-1260

Drone Transmitter Receiver Kit 1.2GHz 1W Transmitter TX-120015 & 1.2GHz Receiver RX-1260

Features of Transmitter:
- 1W 1.2GHz A/V wireless transmitter module in compact size
- 8 Audio/Video output frequencies for each transmitter
- Integrated Circuit: Adopted digital phase locked loop circuit
- With light aluminum housing, it weighs 17g

Transmitter Channel List:
- Model: TX-120015
- Switch A/B of Receiver: B
- CH1: 1080
- CH2: 1120
- CH3: 1160
- CH4: 1200
- CH5: 1010
- CH6: 1040
- CH7: 1240
- CH8: 1280

Specifications of Transmitter:
- Model: TX-120015
- Frequency: 1200MHz
- Available Channels: 8-Ch
- Voice Frequency Carrier: 5.5MHz
- Working Voltage: DC 12V
- Working Current: 300 to 350mA
- Reverse Distance: 200m (Open Space)
- Transmission Power: 30±1dBm
- Power Consumption: 3.6W
- Operating Temperature: 0 to 60℃
- Working Humidity: 20 to 80%
- Select Channels: Via Dip Switch
- Connector of Antenna: SMA
- Frequency Locking Method: Digital Phase Lock Loop
- Size: 37.5 x 27 x 12.6mm (L*W*H)
- Weight: 17±1g

Specifications of Receiver:
- Model: RX-1260
- Receiving Frequency: 1200MHz
- Sensitivity: -90dBm
- Numbers of Channels: 8-Ch
- Video Format: PAL/MTSC
- Input Voltage: DC 11 TO 16V
- Power Consumption: 3.6W
- Working Current: 280mA (Average)
- Voice Frequency Carrier: 5.5MHz
- Video Output: 75Ωvia RCA (Cable Included)
- Audio Output: 10Ωvia RCA (Cable Included)
- Connector of Antenna: SMA
- Weight: 26g

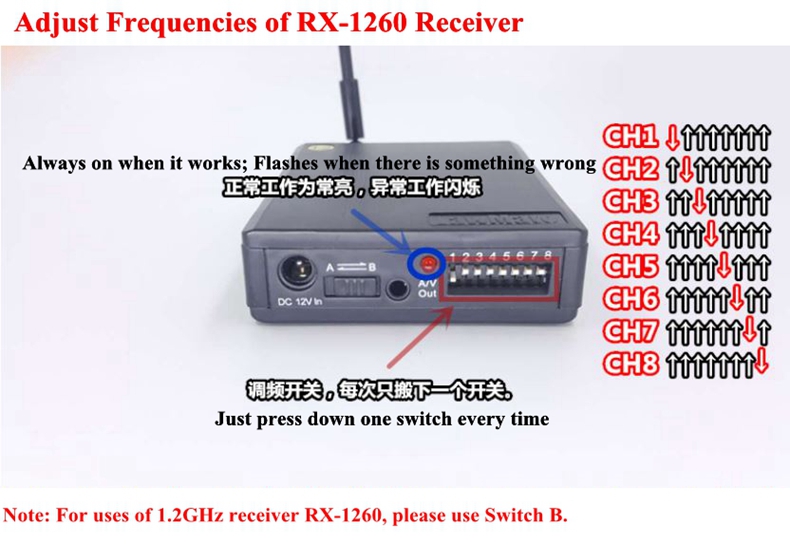

- Select Channels via A/B Switch:
  Switch A: 1080-1120-1160-1100-1140-1180
  Switch B: 1080-1120-1160-1200-1010-1040-1240-1280

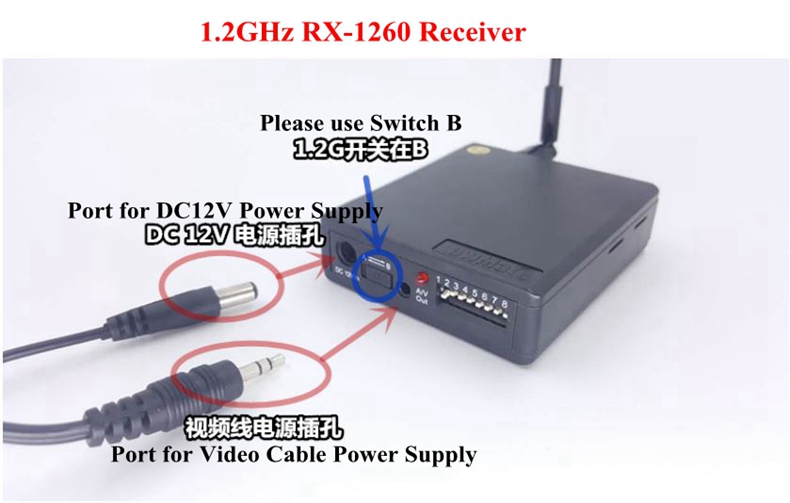

Note: For uses of 1.2GHz receiver RX-1260, please use Switch B.

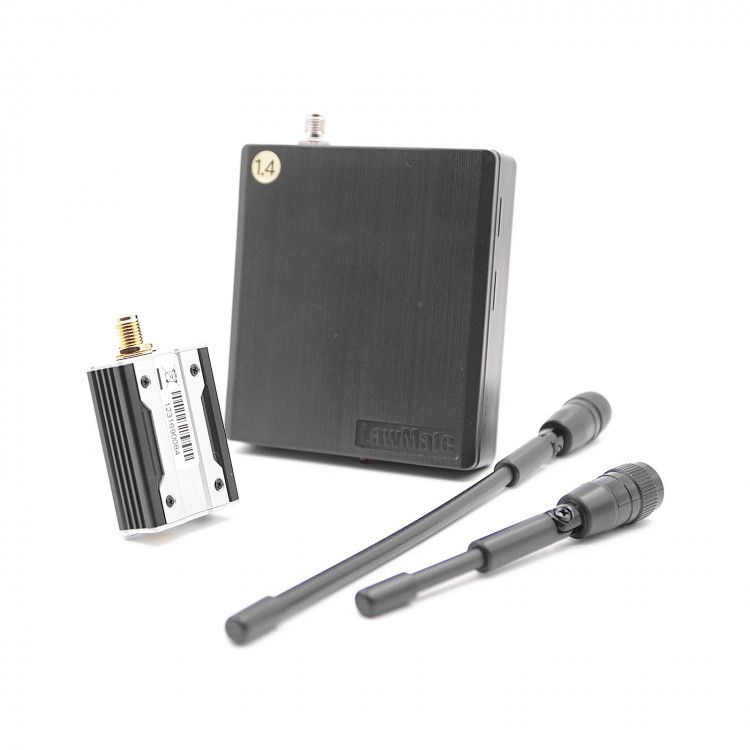

Package Included:
- 1 x TX-120015 1.2GHz 1W Transmitter
- 1 x RX-1260 1.2GHz A/V Receiver
- 2 x Antennas
- 1 x A/V Cable

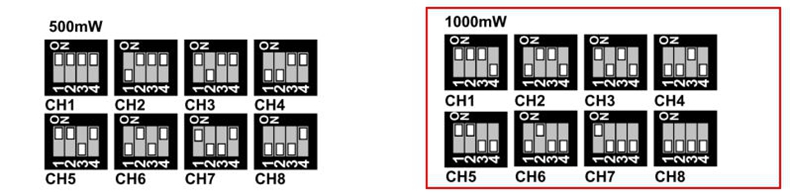

Adjust Frequencies of the Transmitter:
