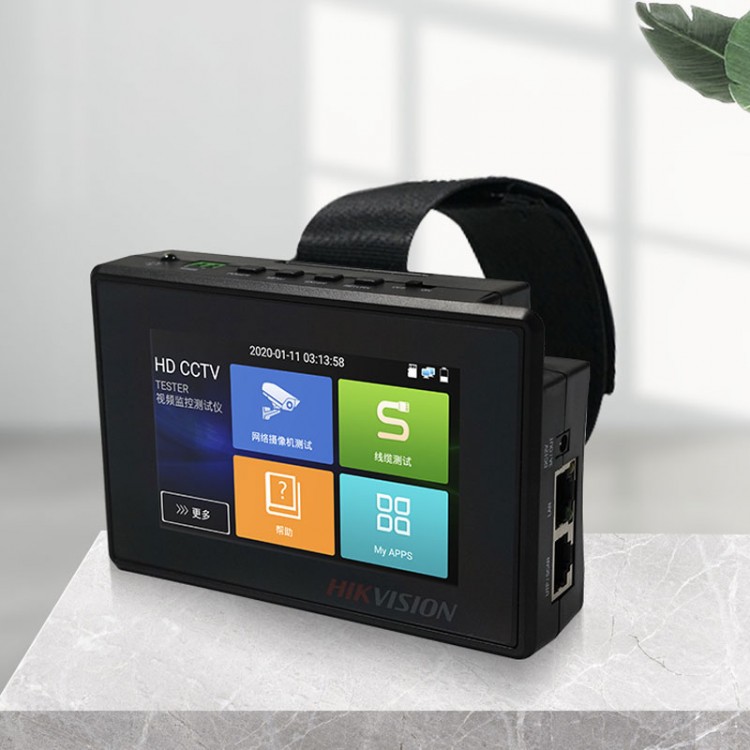

DS-2FG0001-W Wrist CCTV Tester 4K IP Camera Tester H.265 H.264 Encoding With Wifi 4" Touch Screen

DS-2FG0001-W Wrist CCTV Tester 4K IP Camera Tester H.265 H.264 Encoding With Wifi 4" Touch Screen

Features:
- Waist type IPC tester for HIKVISION, touch-screen operation
- One-click image output + password reset. Supports one-click image output from mainstream brand cameras, and supports for HIKVISION IPC password reset. Direct connection for HIKVISION cameras, open the direct connection tool for HIKVISION. After searching the camera IP, it can support one-key activation and one-key recovery of the field settings. For example, if you forget the password of the camera for HIKVISION, you can click the Forget Password item to assist the camera password reset (this machine needs to be preset to the same bridge segment as your camera)
- Webcam test. 4K H.265/H.264 encoding main stream test, bid farewell to sub-stream test. Using the new system, the test screen is clearer and smoother. Support network cable test, network cable TDR quality test and other functions. Support network cable connection test, support WiFi connection test
- 4" display screen, the image display is clearer. Adopt 4-inch IPS high-definition display touch screen, resolution up to 800x480P, touch operation, easy to use
- POE power supply, DC12V power output. POE 48V power output, provides temporary working power for POE cameras, and meets power supply for most models of cameras on the market. No need for external power supply, easier to install and test
- Network cable detection. It can directly display the network cable pair status, length, attenuation, quality, reflectivity, impedance, delay deviation and other parameters
- Integrated test APP, multiple operations can be completed with one key. Batch activate/modify IP/restore factory/video settings/preview/parameter modification and other one-key operations, and support batch activation of mainstream brand cameras, and batch modify IP to modify the channel name, which improves the efficiency of engineering construction
- Wear it on the wrist to free your hands. The product adopts wrist wear, touch screen operation, more convenient, and supports screen lock, optional password lock screen and picture lock screen
- 7.4V 2400mAh polymer lithium battery, charge for 4~5 hours, 8-hour using time
- Support WiFi hotspot, screen projection function. Turn on the WiFi hotspot, you can debug the wireless camera, and support screen projection. You can share the screen of the current instrument, support for Android phone and PC projection

Product Parameters:
- Product model: DS-2FG0001-W
- Display: 4-inch IPS full-view capacitive touch screen, resolution 800x480
- Network port: 10/100M/1000M adaptive, RJ45
- WIFI: Built-in wireless WIFI, rate 150M, receiving wireless network camera images, etc.
- H.265 main stream test: New hardware decoding, support H.265 main stream to play camera images, the highest resolution is 4K
- IP camera test: For ONVIF (with PTZ pan/tilt control), support for HIKVISION DS-2CD864-E13 and other brands of cameras
- IP Discovery: Find camera IP addresses in the entire network segment
- For Speed ONVIF: Automatically log in to play images, activate the camera for HIKVISION with one key and modify IP and other parameters
- Direct connection for HIKVISION tool: Support the camera forget the password item, pop up the QR code for the phone to scan and reset the camera
- For HIKVISION test tool: For HIKVISION camera one-key activation, image test, modify channel name, user name, password, IP and other parameters can be modified
- Video image enlargement: Support IP network camera image enlargement and movement
- Video taking, recording, photo browsing, and video playback: Take screenshots and videos of the test screen, support Chinese name storage, photo browsing, and video playback operations
- Network cable TDR test: test network cable pair status, length, attenuation, quality, reflectivity, impedance, delay deviation and other parameters
- PoE power output: 48V PoE power output, maximum power 25.5W
- DC 12V power output: output 12V maximum DC current of about 3A, providing temporary working power for the camera
- Screen projection: Support mobile phone or PC terminal projection, real-time receiving engineering treasure screen picture
- Intelligent interface: The simplified mode interface has a four-square grid layout, which is simple and beautiful. Ordinary user interface can change the order of function icons and customize the number of icons on the page
- Theme function: Customize function icons, desktop and application interface backgrounds, modify interface sliding effects
- Drop-down menu: drop-down shortcut menu, shortcut buttons for PoE power switch, instrument IP settings, LAN port flow monitoring and other functions
- Audio test: Input one audio signal to test whether the sound is normal, and support the network camera audio test. Recording can be saved
- UTP network cable test: Test any two or more network cables, the connection sequence and network cable number will be displayed on the screen
- Network test function: IP address scan, link scan, PING packet test. Quickly find the IP address of the IP camera or other device connected to the instrument

Power Supply:
- External power supply: DC12V 1A
- Battery power supply: Built-in 7.4V polymer lithium battery 2400mAh

System Parameters:
- Operation setting: Capacitive touch screen, Chinese and traditional OSD menu, optional
- Automatic standby: off/5-30 minutes

Working Environment and Specifications:
- Working temperature: -10℃ to 50℃
- Working humidity 30%-90%
- Dimensions: 126mmx83mmx33mm/0.32kg

Package Included:
- 1 x Set of IPC Tester
