DS100 250MSa/s 50M Mini Oscilloscope w/ Black Protective Sleeve + 2 P6100 Probes + MCX to BNC Cable
Features:- DS100 is a mini digital oscilloscope.
- It is a highly practical and cost-effective handheld oscilloscope, which is aimed at the maintenance industry and the research education industry.
- The oscilloscope has a real-time sampling rate of 250MSa/s, a bandwidth of 50M, and complete trigger functions (single, normal, and automatic).
- Two channels makes it widely used.
- It can also be used as a signal generator.
- It can be used freely for both periodic analog signals and non-periodic digital signals, and can measure voltages up to ±400V.
- With an efficient AUTO key, it can display the measured waveform without cumbersome adjustments.
- Equipped with a 3.5-inch 480*320 resolution high-definition LCD screen.
- With built-in 2000mAh lithium battery, it can be used continuously for about 7 hours after fully charged.
Specifications:- Model: DS100
- Screen size: 3.5" IPS
- Analog bandwidth: 50M
- Channel isolation: >40dB
- Storage depth: 128Kpts
- Time base range: 8ns~50s
- Trigger mode: automatic/normal/single
- Vertical sensitivity: 110mV/div and 100V/div
- Afterglow time: >0/1s/∞
- Automatic function: Supported
- Waveform collection rate: 500wfms/s
- Measurement parameters: 20 types
- Measurement accuracy: ±2%
- Firmware upgrade: Supported
- Battery life: about 7 hours (normal use)
- Maximum measuring voltage: ±40V (at X1 gear); ±400V (at X10); ±4kV (at X100); ±40kV (at X1000)
- Number of channels: 2
- Screen resolution: 480*320
- Sampling rate: 250MSa/s
- Rise time: <7ns
- Input impedance: 1MΩ
- Time-base mode: YT/XY/Scroll
- Trigger type: Rising edge/falling edge
- Interface: MCX (probe interface); USB (charging & communication)
- Coupling mode: AC/DC
- One-click centering: Supported
- Waveform saving: BMP and CSV formats
- Output waveform: square wave/sine wave/triangular wave/sawtooth wave
- Frequency accuracy: ±1‰
- Language selection: Simplified Chinese/Traditional Chinese/English
- Charging time: Approx. 3 hours (USB)
- Size: 100mm x 58mm x 15mm/3.9" x 2.3" x 0.6"
- Product net weight: 109g/0.2lb

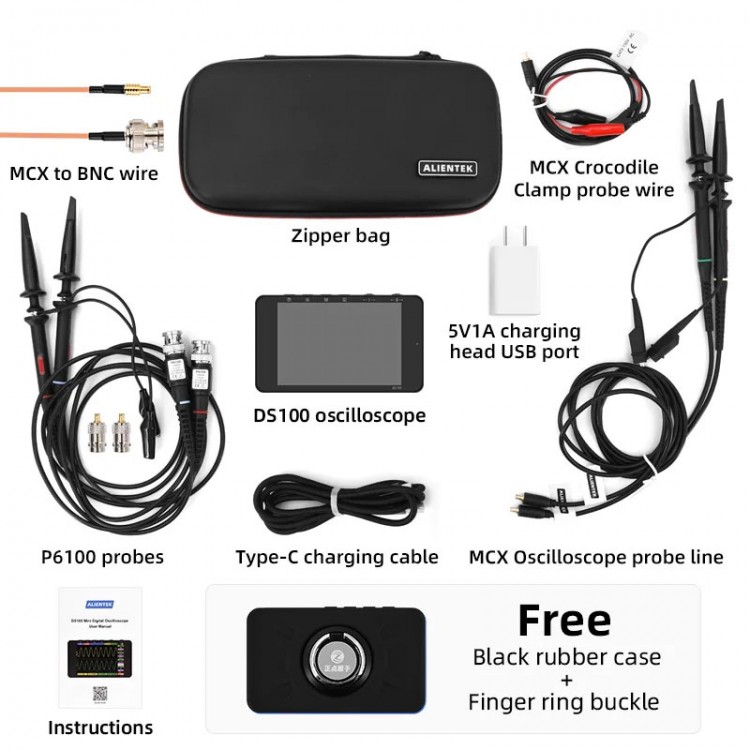

Package Included:- 1 x DS100 digital oscilloscope
- 1 x Adjustable MCX oscilloscope probe cable (yellow ring)
- 1 x Adjustable MCX oscilloscope probe cable (green ring)
- 1 x Slotted screwdriver (to adjust compensation capacitor)
- 1 x MCX alligator clip probe cable
- 1 x 5V 1A USB charger plug
- 1 x Type-C charging cable (3A, 1.2m)
- 1 x User manual
- 1 x Zipper bag
- 1 x Black protective sleeve
- 2 x P6100 probes
- 1 x MCX to BNC cable
Packaging Details:- G.W.: 0.7kg
