DS202 10Mps Pocket Handheld Oscilloscope Mini Display Full Color TFT LCD 320x240 Digital Oscilloscope

Availability: In stock, usually dispatched in 1 business day

  • Price:$100.34
  • Price in reward points: 1003 Reward Points: 10
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $98.33 $96.33 $93.32 $89.30 Contact US
Quantity:

DS202 10Mps Pocket Handheld Oscilloscope Mini Display Full Color TFT LCD 320x240 Digital Oscilloscope

Description:

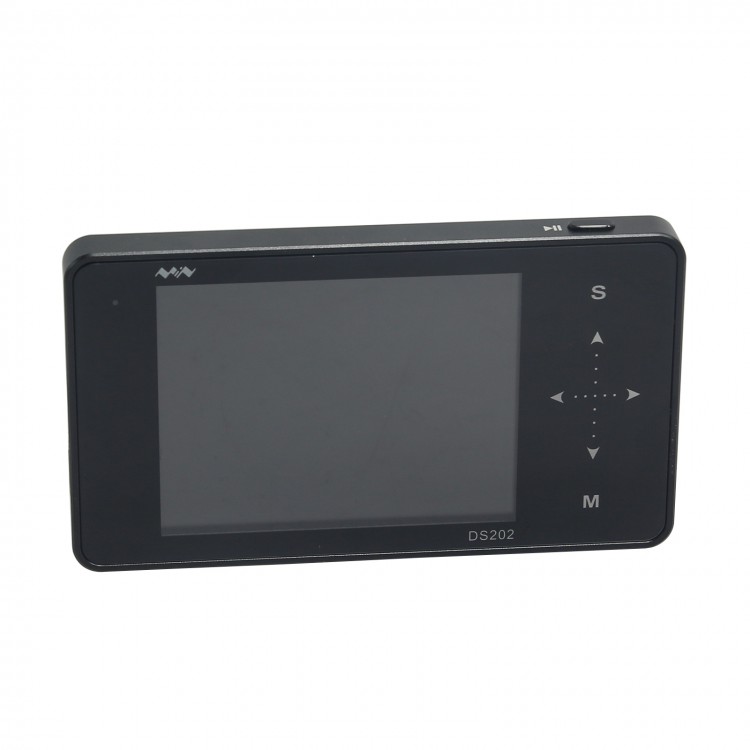

DS202 is a pocket size digital storage oscilloscope fulfills basic electronic engineering requirements. It is has a dual trace three lines, new kind of system interface, capacitive convenient operation. You can easily operate it with the gestures of one-click, double-click, press and slide. The Aluminum shell is very fashionable. It is equipped with 320*240 color display, 8M Memory Card (U Disk), and chargeable Lithium batteries. The thickness is 11mm only! The volume is small enough to take it anywhere. It can meet the demands in many fields, such as, school experiment, electronic repairing and electric engineering.

Specification:
- Analog bandwidth: 1MHz
- Max sample rate: 10Mps
- Sample memory depth: 8K
- Analog Input impedance: 1MΩ
- Max input voltage:±40v (×1 probe)
- Coupling:AC/DC
- Analog input sensitivity: 10mV/Div~10V/Div (1-2-5 Step)
- Vertical position: Adjustable with indicator
- Horizontal sensitivity: 1uS/Div~10S/Div (1-2-5 Step)
- Horizontal position: adjustable with indicator
- Independent Channel Display:-A,-B,A+B,A-B,RecA,RecB
- Trig modes: Auto, Norma, Single, None and Scan
- Rising/falling edge trigger ,Maximize/Minimize level trigger
- Automatic measurement: frequency, cycle, duty, peak/effective/Maximum/Min/average NO.of Voltage
- Test signal: Built-in 10Hz~1MHz or 10~20kHz Analog sine wave/ Triangle wave/ Sawtooth Wave
- Waveform storage: 8MB Memory
- Built-in: 600mAh Chargeable Lithium battery / USB
- Color TFT LCD display Resolution: 320×240
- Input: Capacitive touch and slide gesture
- Dimension: 100mm X 56mm X 10mm

Package list:
- 1x Ocilliscope;
- 1x MCX combined Probe
- 1x User Manual
