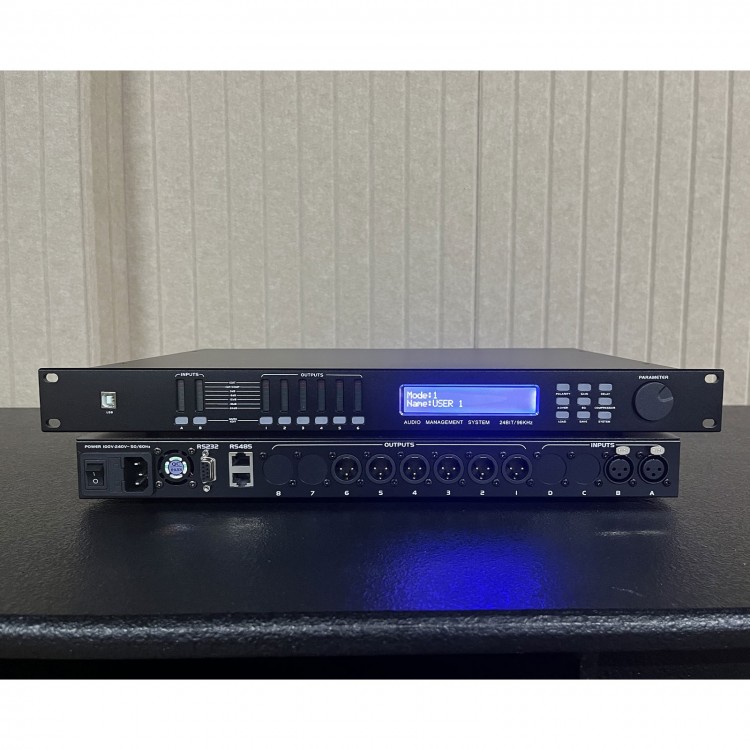

DS26 24Bit 96KHz Digital Audio Processor Audio Management System with 2 Input and 6 Output Ports

DS26 24Bit 96KHz Digital Audio Processor Audio Management System with 2 Input and 6 Output Ports

Features:
- Model: DS26
- Input/output channels: 2 in 6 out
- Function of each input channel: mute (Separate mute control for each channel)
- Delay: each input channel has independent delay control. The delay value is 0-1000MS, less than 10MS, the step distance is 21US, greater than 10MS, and the step distance is 1MS
- Polarity: same-phase (+) and opposite phase (-)
- Equalization: Each input channel has 31-segment GEQ and 10-segment PEQ. In the PEQ state, the adjustment parameters are: center frequency point 20Hz-20KHz, step 1Hz, gain ±20dB, step 0.1dB. Q value: 0.404 to 28.8
- Per-output channel function: mute (separate mute control for each channel)
- Mixed: Each output channel can be individually selected with a different input channel or any combination of input channels can be selected
- Gain: Adjustable range: -36dB to +12dB in 0.1dB steps
- Delay: Each input channel has individual delay control. Adjustment range 0-1000ms
- Polarity: same-phase (+) and opposite phase (-)
- Equalization: Each channel can be set with 10-segment equalization, with PEQ/LO-shelf/Hi-shelf options
- Divider: Low-pass filter (LPF), high-pass filter (HPF), filter type (PF mode): LinkwitzRiley/Bessel/Butterworth. Divider point: 20Hz-20KHz
- Attenuation slope: 12dB/oct, 18dB/oct, 24dB/oct and 48dB/oct
- Limiter: Each output channel can be individually set compressor. Adjustable parameters are: threshold: ±20dBμ, step Step: 0.05dBμ, starting time: 03ms-100ms, <1ms step: 0.1ms; >1ms, step distance: 1ms, release time: 2 times, 4 times, 6 times, 8 times, 16 times, 32 times the starting time
- Input/output interface: Input: XLR female; Output: XLR male
- Processor: 255MHz clock speed 96KHz sampling frequency 32-bit DSP processor, 24-bit A/D and D/A conversion
- Display: 2X24LCD blue backlit display settings and 8-segment LED display input/output level display

Specifications:
- Input impedance: balanced: 20KΩ
- Output impedance: balanced: 100Ω
- Input range: ≤17dBu
- Frequency response: 20Hz-20KHz (0 to -0.5dB)
- Signal-to-noise ratio: >110dB
- Distortion: <0.01% (Output=0dBu/1KHz)
- Resolution: >80dB (1KHz)
- PC interface: 1 USB port on the panel, 2 RS485 ports (RJ-45) and RS232 port on the back panel
- Power consumption: ≤30W
- Net weight: 4.1kg/9lb
- Optional voltage: 110V and 220V

Package Included:
- 1 x Audio Processor
