DS4T1012 150M/1GSa/s/16Mpts Digital Oscilloscope Signal Generator Portable Handheld Oscilloscope

DS4T1012 150M/1GSa/s/16Mpts Digital Oscilloscope Signal Generator Portable Handheld Oscilloscope

Description:
FPGA and DRAM:
- Its core consists of a powerful FPGA hardware waveform processing engine and DRAM memory, rather than an MCU-based software implementation. DRAM and FPGA is essential for high frame rates and smooth waveforms.

Ultra-high Waveform Refresh Rate:
- Its real-time performance is better than that of ordinary MCU solutions.

Bandwidth and Sampling Rate:
- Bandwidth of 150MHz and real-time sampling rate of 1GSa/s.

Storage Depth:
- Its storage depth is as high as 16Mpts.

Accuracy and Noise:
- The original high-precision oscillator (for EPSON) with low temperature drift and hardware real-time frequency measurement are used. High-precision frequency display with three decimal places reserved
- DC/DC power supply ripple analysis: measured millivolt level of weak signals, support 20M bandwidth limit. Tool for power supply ripple measurement
- It has a minimum vertical sensitivity of 10mV/div and less background noise
- Withstand voltage of BNC input terminal ± 200V
- When used with a X100 high-voltage probe, the oscilloscope can measure signals of ±2000V. When measuring high voltage, please pay attention to grounding. The high-voltage probe should be purchased separately.

Touch Screen to Operate:
- The oscilloscope is designed with a complete set of "single finger touch" operation. All functions are simplified into 1-3 steps of touch and swipe, so users can use the buttons and menu easily.
- With 2 taps, you can add/remove a measurement option. 20 automatic measurement options available.
- The horizontal resolution supports single-finger swipe adjustment of the entire waveform area. At the same time, the roller area can be quickly adjusted by dragging and dropping.
- Extensive channel control options are available vertically, with wheel adjustment. Support quick adjustment by dragging and dropping.
- It supports storage and on-boarding in 9 configurations. In order to adapt to different measurement scenarios, users can switch configurations with one click.

More Functions:
- X-axis/Y-axis curved cursor
- Lissajous figure in X-Y mode
- Afterglow display
- Signal generator
- File feature

Industrial Design:

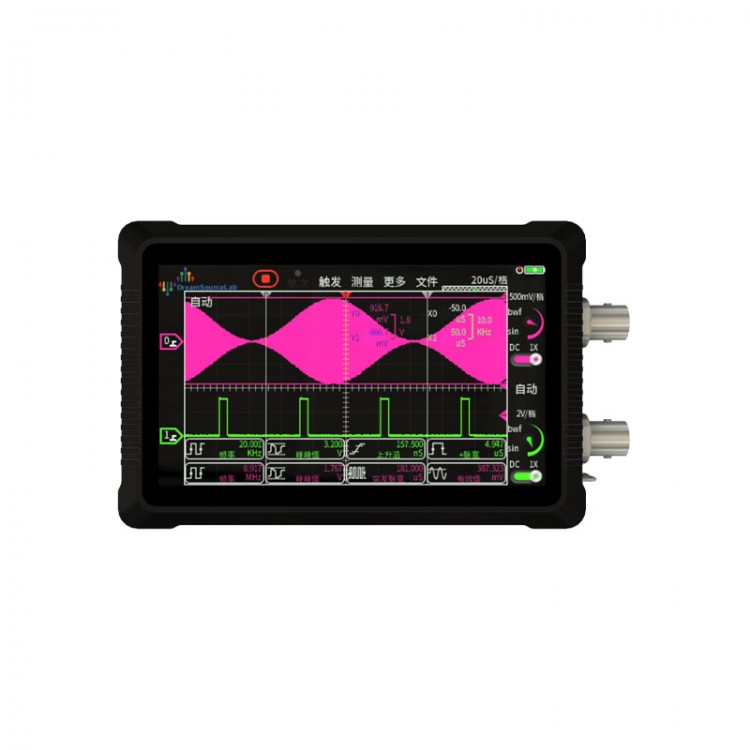

- Pock-sized high-performance oscilloscope
- Size: 117 x 77mm/4.6 x 3" (excluding the size of knobs)
- Integrated soft rubber wrapping and hard plastic support shell. The four corners of the equipment prevent collision
- Anti-wear protection strip for the front screen
- Built-in bracket for different elevation angle support
- Fanless: say goodbye to noise
- Long endurance time: with built-in high-capacity lithium battery, it can work for 6 hours. Support sleep mode when there is no operation

Technical Parameters:
Horizontal System:
- Real-time sampling rate: 1GSa/s
- Equivalent sampling rate: 5GSa/s
- Maximum acquisition time at the highest sampling rate: 10ms
- Time base range: 1ns/Div-10s/Div
- Storage depth: 8Mpts (dual channel); 16Mpts (single channel)

Vertical System:
- Bandwidth: 150MHz
- Input coupling: DC or AC
- Input impedance: 1MΩ//~16pF
- Vertical sensitivity: 10mV/Div to 5V/Div
- Vertical resolution: 8bits
- Input withstand voltage range: peaks ≤ 250V
- DC accuracy: ±4%
- Vertical position: ±5 divisions
- Vertical offset: ±5 divisions ±100mV to ±50V/Div
- Common-mode rejection ratio: none
- Channel isolation: none

Trigger System:
- Trigger mode: Automatic Normal (ch0 and ch1)
- Trigger position: 0%~100% sampling depth
- Hold-off range: 0~1s
- Trigger Type: Edge (rising or falling)
- Trigger sensitivity: 0~0.625 grids
- Trigger level range: +4.4 grids

Waveform Measurement:
- Cursor: Y-axis and X-axis cursor
- Manual measurement: width/frequency/period/voltage amplitude
- Automatic measurement: frequency/period/+duty cycle/-duty cycle/+pulse number rising edge/falling edge/+pulse width/-pulse width/burst pulse width/amplitude/high level/low level /rms/average/peak-to-peak/maximum/minimum/+overshoot/-overshoot

Waveform Display:
- Time-domain waveforms: Real-time waveform acquired in a single shot (high frame rate hardware processing engine)
- X-Y mode: Lissajous figure

Signal Generation:
- Waveform type: sine/square/triangle/sawtooth wave
- Waveform frequency: 0-100KHz
- Square wave duty cycle: 10%-90%
- Waveform amplitude: 0-3V (min Vpp=0.5V)

Extended Interface:
- Mini-HDMI: Extends acquisition based on other sensors
- BNC: Extended Current/Differential Probes

Package Included:
- 1 x Oscilloscope

Note:
- The language can be switched to English.
