DSCope C20P 200MHz USB Digital Oscilloscope 2 Channel Bandwidth 50MHz Sampling Rate 200MSa/s

DSCope C20P 200MHz USB Digital Oscilloscope 2 Channel Bandwidth 50MHz Sampling Rate 200MSa/s

Description:

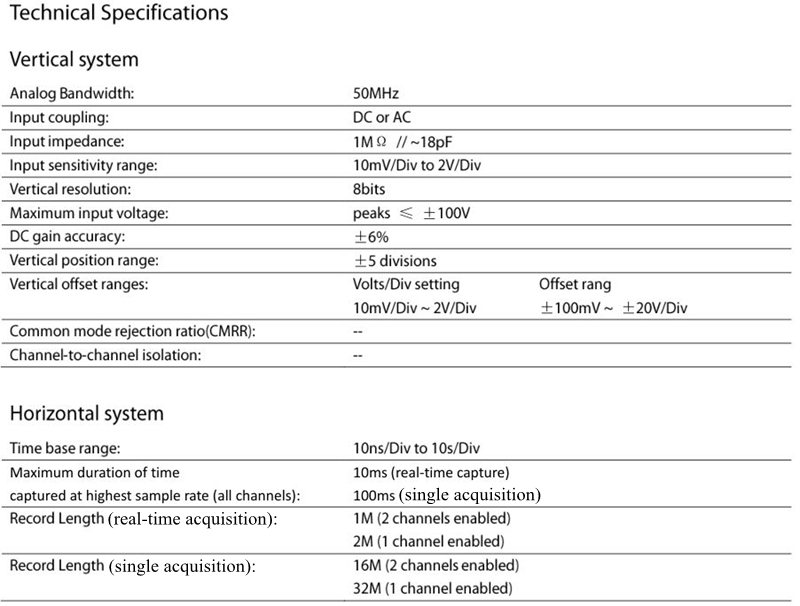

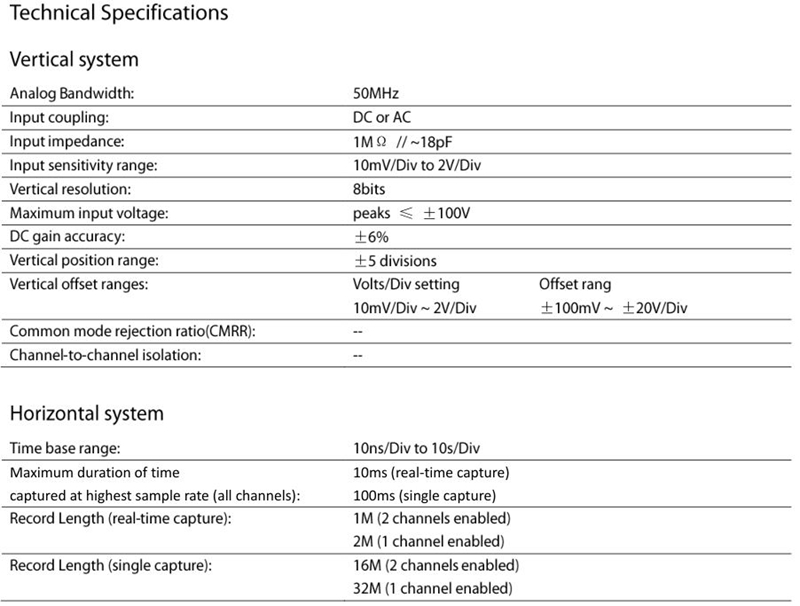

DSCope C20P is a USB-based oscilloscope, with 50MHz bandwidth, max 200MSa/s sample rate, 1M real-time and 16M single record length.

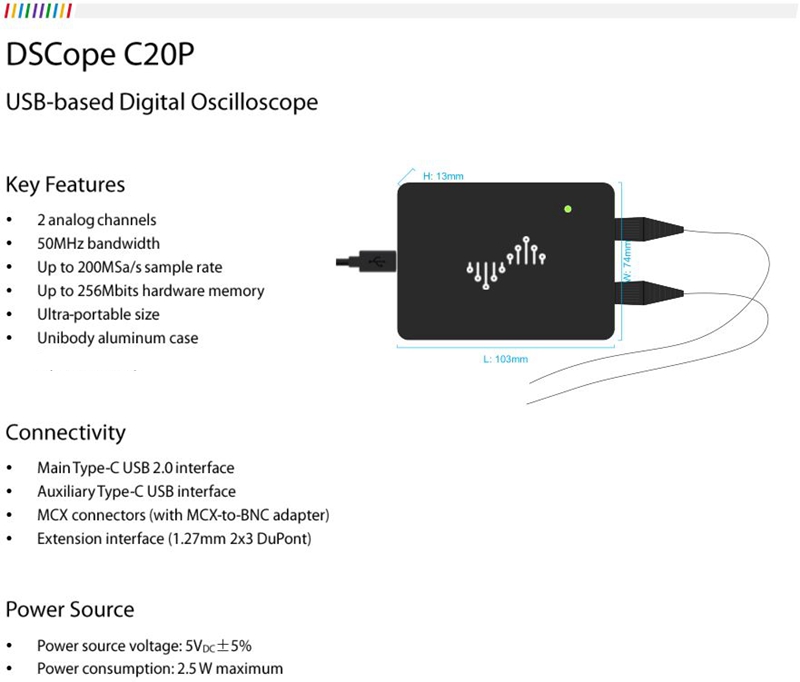

It’s so small(103mmx74mmx13mm), and can be packed in a shirt pocket. Combined with big screen and powerful performance computer, DSCope C20P can provide you amazing signal acquisition and analyzer experience.

Features:
Powerful FPGA Waveform Processing Engine
●High-bandwidth parallel architecture: greater than 60fps processing power
●Real-time transmission of each frame waveform: less than 10ms transmission delay

Optimized Analog Frontend
●50MHz analog bandwidth
●+-100V input voltage range
●Ground shield
●Immersion gold technology

Unibody CNC Aluminum Case
●Except an awesome appearance, fully metal case can provide extremely shielding protection, which make DSCope immune to environment noises.

High-performance PC Software
●Waveform without delay
●Smooth operation
●Big adjustable screen for nice interactive experience
●Clearer waveform

Oscilloscope in Pocket
●DSCope has ultra-portable size. You can take it anywhere in your pocket. Best choice for field engineers.

FFT-based Spectrum Analysis

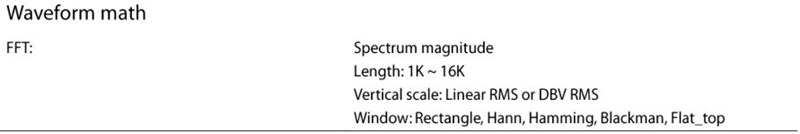

●FFT-based real-time spectrum analysis has controls of FFT length (1k-16k), Sample interval, FFT window (Rectange/Hann/Hamming/Blackman/Flat_top) and Y-axis mode.

Rich Measurement Options
●Auto Measurement: Ferq/Period/Vmax/Vmin/Vrms/Vmean/Vp-p
●Manual Measurement: Ferq/Period/Duty cycle
●Vertical Measurement: Voltage

Long Record Length
●1M sample depth @ real-time mode
●16M sample depth @ single mode
●Large depth will help to keep a high sample rate in long time acquisition, avoid to loss any details of under-test signals.

Data Acquisition Mode
●Real time wave rendering
●Long duration acquisition (>24hours @ 1KHz)
●Uninterrupted acquisition

Upgrading
●Free software
●Automatic upgrading for firmware







System Requirements:
- For Windows XP, Vista, Win7, Win8 & Win10
- For Mac OS X 10.9 or above
- For Linux: recent Ubuntu, Fedora, Arch, etc.
- For USB 2.0 Host port

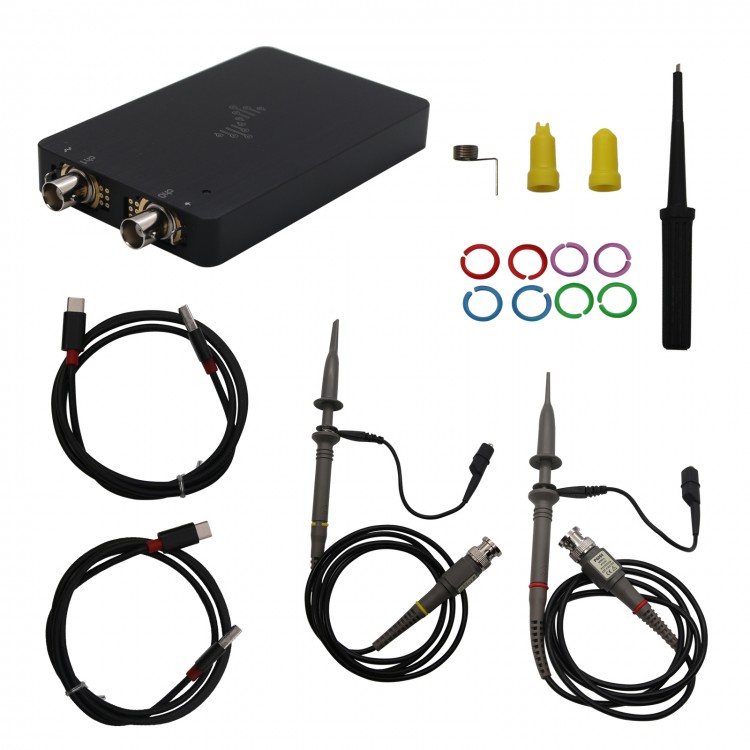

Package Included:
- 1 x DSCope C20P
- 1 x USB Cable
- 2 x P6100 Probes
