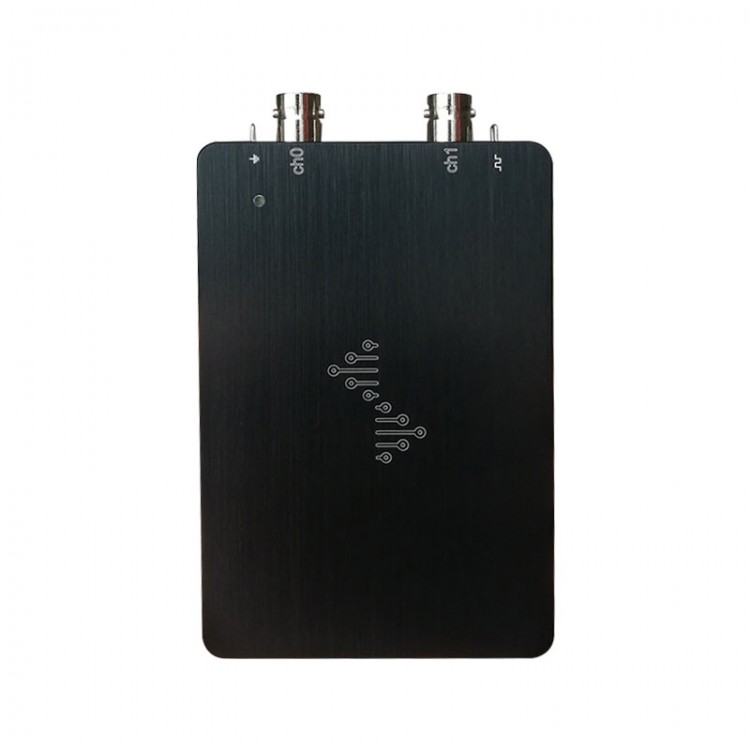

DSCope Handheld Digital Oscilloscope USB2.0 100M Bandwidth 1G Sampling Dual Channel DSCope U2B100
Specifications:
Maximum sampling rate: 1GS/s
Maximum collection time: 2us (real time); 32us (single time)
Time base range: 2ns/Div-100ms/Div
Sampling depth (real time): 10k (dual channel); 2k (single channel)
Sampling depth (single shot): 16k (dual channel); 32k (single channel)
Hardware memory: 256Kbits
USB transfer rate: USB2.0/480Mbps
Vertical system bandwidth: 100MHz
Input coupling: DC or AC
Input impedance: 1MΩ //~16pF
Vertical sensitivity: 10mV/Div to 2V/Div
Vertical resolution: 8bits
Input voltage range: peaks <±100V
DC accuracy: ±6%
Vertical position: ±5 divisions
Vertical offset: Offset range ±100mV ~ ±20V/Div
FFT spectrum analysis: FFT length: 1K~8K
Ground protection: within ±30V
Auxiliary power supply interface: no
Expansion interface: no
Features:
1. Stability and safety, continuously work for 72 hours without disconnection or crash, patented grounding protection technology.
2. DSCope has the same FPGA-based hardware waveform processing engine as the desktop oscilloscope, with high frame rate and smooth waveform without lag.
3. Real-time sampling, excellent vertical sensitivity, easy to operate, waveform saving, easy to review, share, and process again.
4. Rich functions, up to 20 automatic measurement options, support FFT spectrum analysis, support mathematical operations such as addition, subtraction, multiplication and division, autonomous measurement, and X-axis / Y-axis cursor measurement.
5. Portable, no noise, USB power supply, plug and play.
Package Included:
1 Set of DSCope U2B100 Oscilloscope
