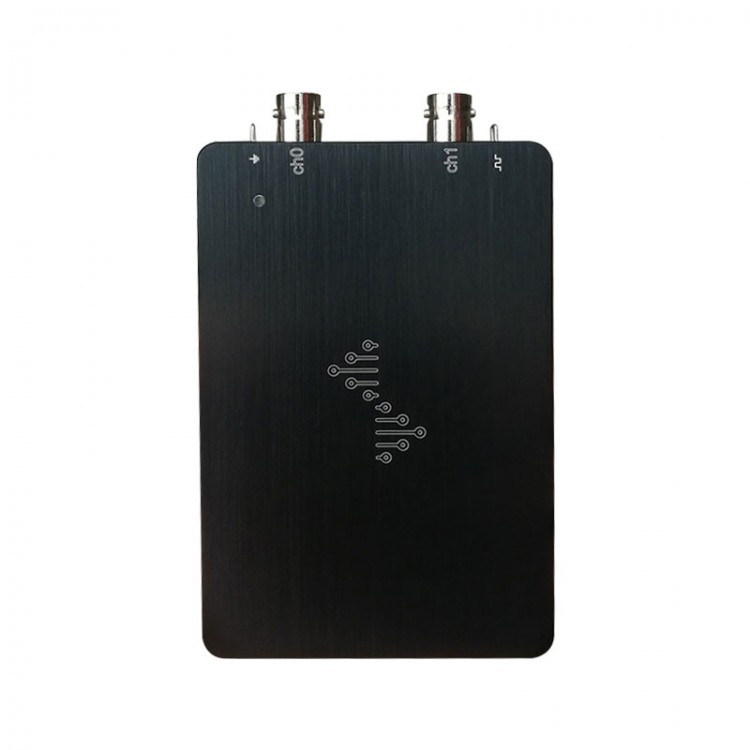

DSCope Handheld Digital Oscilloscope USB3.0 100M Bandwidth 1G Sampling Dual Channel DSCope U3P100

Availability: In stock, usually dispatched in 1 business day

  • Price:$387.47
  • Price in reward points: 3875 Reward Points: 39
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $379.72 $371.97 $360.35 $344.85 Contact US
Quantity:
DSCope Handheld Digital Oscilloscope USB3.0 100M Bandwidth 1G Sampling Dual Channel DSCope U3P100

Specifications:
Maximum sampling rate: 1GS/s
Maximum collection time: 2ms (real time); 200ms (single shot)
Time base range: 2ns/Div-10s / Div
Sampling depth (real time): 1M (dual channel); 2M (single channel)
Sampling depth (single shot): 128M (dual channel); 256M (single channel)
Hardware memory: 2Gbits
USB transfer rate: USB3.0/5Gbps
Vertical system bandwidth: 100MHz
Input coupling: DC or AC
Input impedance: 1MΩ //~16pF
Vertical sensitivity: 10mV/Div to 2V/Div
Vertical resolution: 8bits
Input voltage range: peaks <±100V
DC accuracy: ±6%
Vertical position: ±5 divisions
Vertical offset: Offset range ±100mV ~ ±20V/Div
FFT spectrum analysis: FFT length: 1K~16K
Ground protection: within ±30V
Auxiliary power supply interface: yes (dual Type-C)
Expansion interface: yes

Features:
1. Stability and safety, continuously for 72 hours without disconnection or crash, patented grounding protection technology.
2. DSCope has the same FPGA-based hardware waveform processing engine as the desktop oscilloscope, with high frame rate and smooth waveform without lag.
3. Real-time sampling, excellent vertical sensitivity, easy to operate, waveform saving, easy to review, share, and process again.
4. Rich functions, up to 20 automatic measurement options, support FFT spectrum analysis, support mathematical operations such as addition, subtraction, multiplication and division, autonomous measurement, and X-axis / Y-axis cursor measurement.
5. Portable, no noise, USB power supply, plug and play.

Package Included:
1 Set of DSCope U3P100 Oscilloscope
