DSCope Oscilloscope Portable OSC 50M Bandwidth 200M Samplinmg Rate Dual Channel

DSCope Oscilloscope Portable OSC 50M Bandwidth 200M Samplinmg Rate Dual Channel

Specifications:
- Analog Bandwidth: 50MHz
- The maximum sampling rate: 200MHz 1 Channel / 100MHz 2 Channels
- Real-time sampling depth: 1M
- Single sampling depth: 32M 1 Channel / 16M 2 Channels
- Number of input channels: 2 Channels
- Vertical Sensitivity: 10mV / div ~ 2V / div (x1 probe) / 100mV / div ~ 20V / div (x10 probe)
- Input coupling: AC / DC / Ground
- Input characteristics: 1 MΩ ~ 15 pF
- Overvoltage range: ± 100 V (DC + AC peak)

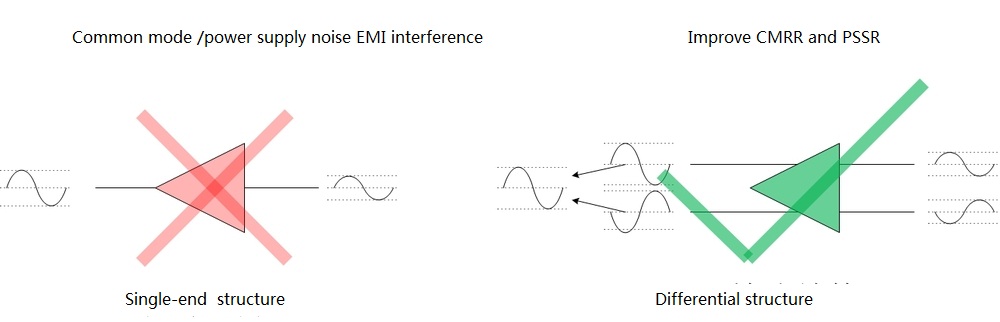

DSCope analog front-end circuit adopts fully differential structure.Compared with single-ended structure has a prominent common-mode noise and power supply noise suppression capability, as well as reduce EMI interference.Make the reduction of measured signal can be more real.

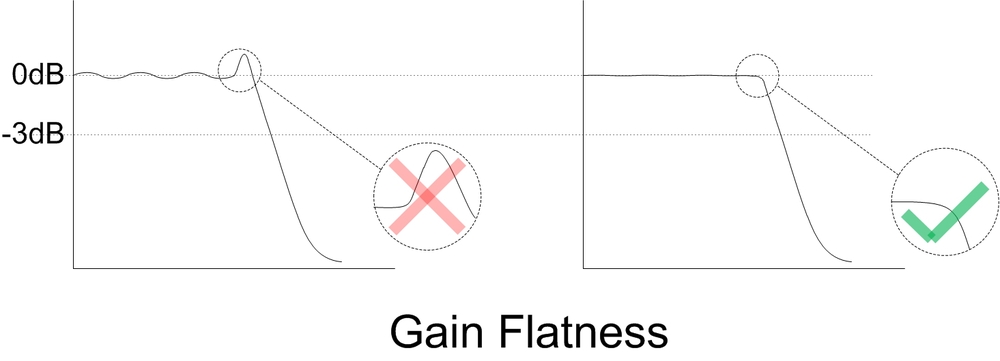

DSCope analog front-end circuit of fully considering the gain bandwidth flatness.Guarantee of arbitrary frequency component in the bandwidth at the same gain.In observing the digital signal, can better restore jump along the digital signal, are more likely to make correct judgment for signal quality.



AFE DSCope full account of gain flatness bandwidth. Guaranteed bandwidth gain for any of the same frequency components. When looking at a digital signal, it can better restore the digital signal hopping along, more of the signal quality to make the right judgments.

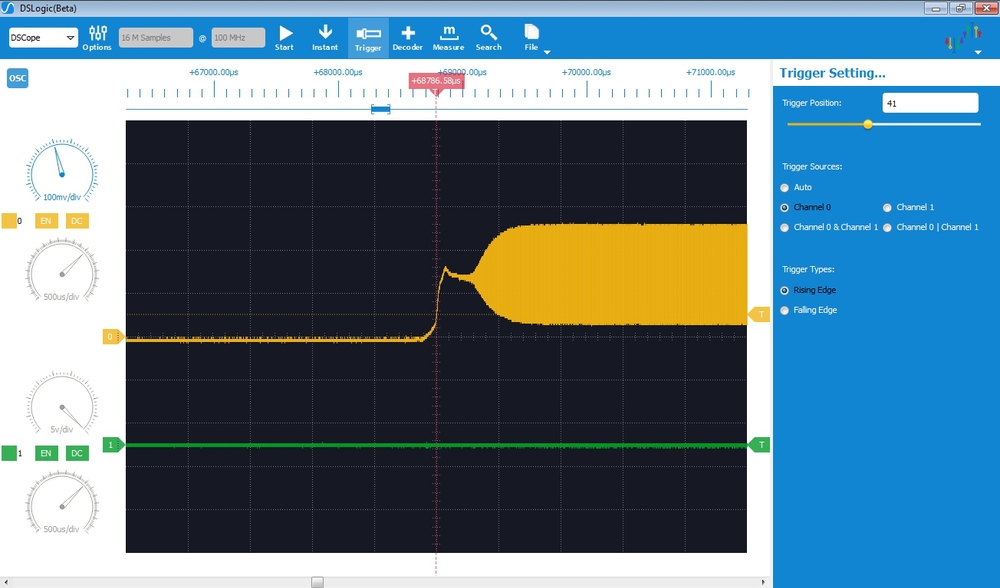

DSCope with real-time sampling storage depth, 1 M.Storage depth determines the oscilloscope ability to analyze the phenomenon of high frequency and low frequency at the same time, including the low speed signal of high frequency noise and high speed signal of low frequency modulation.DSCope long storage depth (16 M / 32 M) of a single trigger sampling function.Make observations collected at the same time waveform of the whole process and the details of the specific time point is possible.Below for DSCope sampling to passive crystals on electricity and vibration of the whole process.


DSView open source PC software
DSLogic / DSCope use the same PC software DSView, also based on open architecture. Thanks to the following open source code library of authors: glib / libusb / libzip / boost / python / sigork. Does not contribute to open source software, naturally there will be DSView.




DSView main improvement is to optimize the user interface operation logic. It is simply ease of use. Our team of engineers at the time it was done was also tortured A ,gilent / Tektronix / LeCroy ... etc Gangster instrument interface too (product tall, but do not use it very easily). DSView certainly not now the best use of logic analyzer / oscilloscope software, but we believe that thinking based on open source products (product iterative improvement of social cooperation), DSView will be more useful. We hope you participate and give us lots of advice.

The following video shows the DSView Cursors for frequently used operations optimization (create / move / delete / skip / relocation, etc.). The whole process without any menu operation, direct clicks to view and move can be completed. At the same time, does not limit the number of Cursors, how much you can put much needed Cursors. You can go to our website (dreamsourcelab.com) Download the current software version, to experience some of the basic operations in the Demo state.

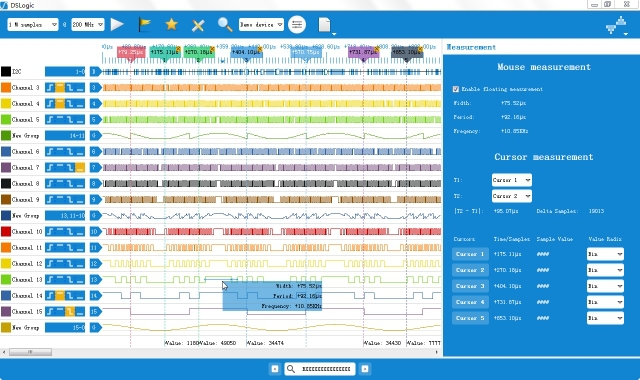

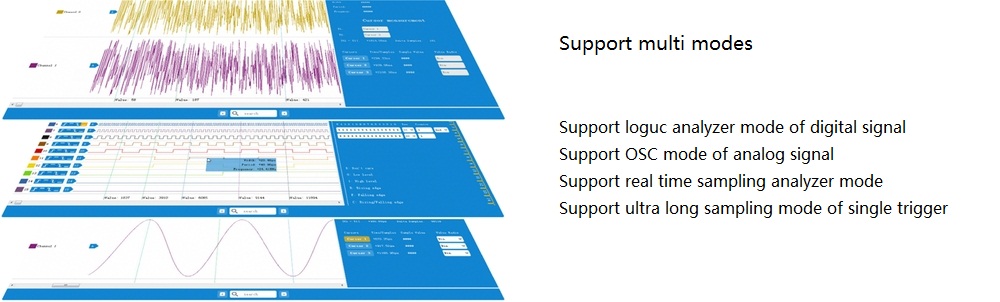

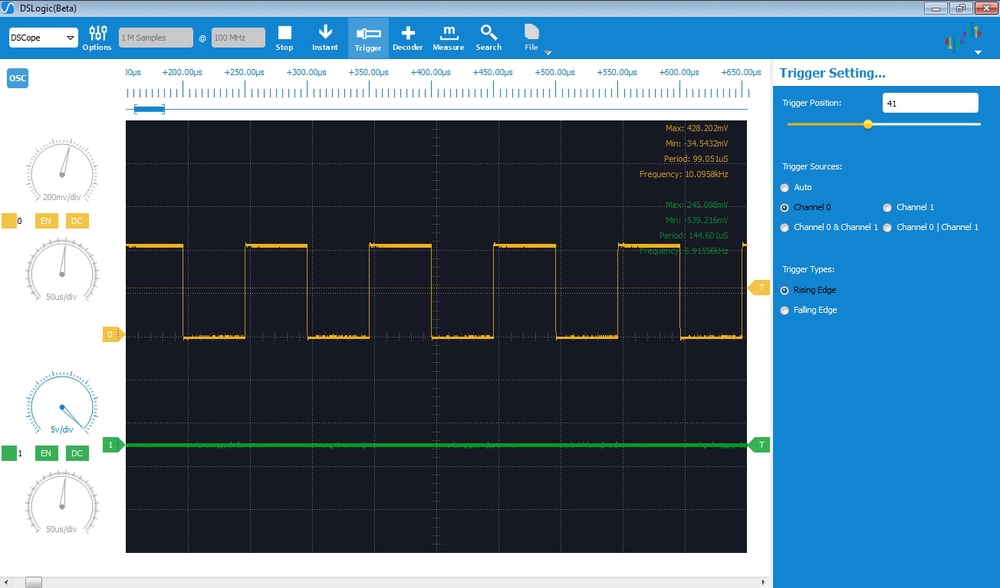

DSView supports multiple modes - Logic Analyzer / Oscilloscope / data loggers and the like. When connecting the different hardware devices will automatically jump to the appropriate operating mode. For example, when DSLogic connected to PC, DSView automatically activates the logic analyzer interface; when DSCope connected to PC, DSView will automatically switch to the oscilloscope user interface.

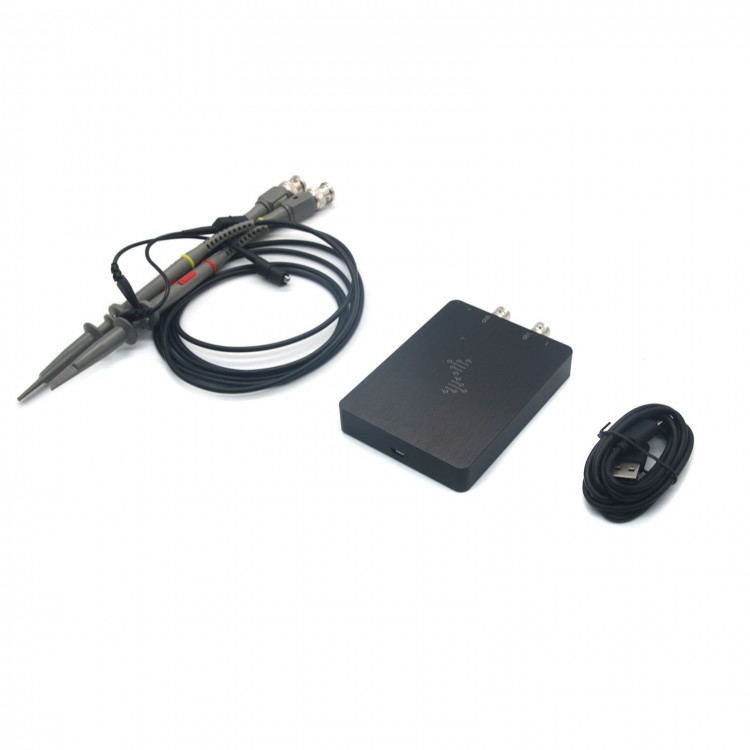

Part List:
- DSCope module: x1
- USB cable: x1
- P6100 probes: x2
