DSD88 Asynchronous Decoder DSD256 PCM Decoding 192KHZ SA9227 CS4398 HIFI USB External Sound Card-Black

DSD88 Asynchronous Decoder DSD256 PCM Decoding 192KHZ SA9227 CS4398 HIFI USB External Sound Card-Black

Description:

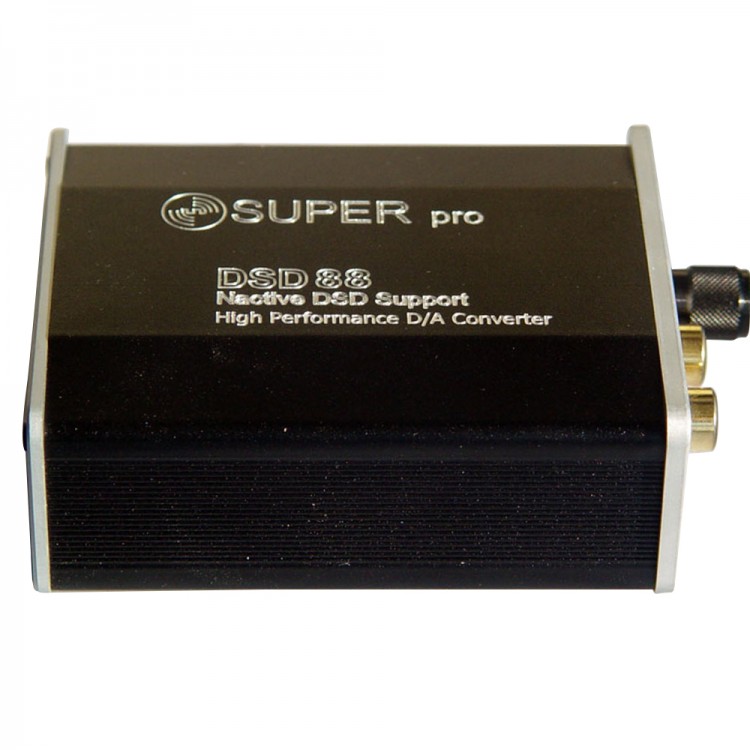

DSD88 is a high performance audio decoder for DSD/PCM with headphone output interface.
Adopt USB decoding chip SA9227
Adopt top quality chip CS4398
With RCA interface to connect to the amplifier, 3.5mm interface

SA9227:
- Asynchronous decoding
- Decoding DSD, like DSD64/ DSD128/ DSD256
- Sampling rate: 384Khz, PCM decoding
- Support ASIO

Specification:
- Color: Black
- Automatically recognise DSD and PCM music files
- Active and low jitter oscillator:12.000MHZ+49.152MHZ+45.1584MHZ
- PCM format support: 16-32bit/32KHZ; 44.1KHZ,  48KHZ, 96KHZ, 192KHZ
- DSDS format support: DSD64(1bit,2.8224MHZ), DSD128(1bit,5.6448MHZ), DSD256(1bit,11.2896MHZ)
- Dimension: 75*60*25 mm
- Weight: About 150g
- Material: Aluminum alloy CNC
- Analog output terminal: 1 group of RCA, 1 group of 3.5 plug

DSD sampling LED indicator:
- DSD64: LED is green
- DSD128: LED is blue
- DSD256: LED is red

Circuit output:
- Range: 4.7V (RMS)
- Distortion: <0.02% (FS=192KHZ, @1KHZ  RL=5K)
- SNR: >118db, A Weight
- Dynamic range: >105db, A Weight

Headphone output:
- Output power: 80mW (32Ohm)
- Distortion: <0.3%
- SNR: >102db, A Weight
- Dynamic range: >98db, A Weight

System requirement:
- The computer USB interface: 2.0/3.0
- Windows XP/Vista/7/8/8.1/10 needs drive program
- Mac OS X10.6.4 and above system (no need for drive)

Reconnended playing software:
- PC: Jriver,  Foobar2000
- MAC: Audirvana plus
- iPhone and iPad: HF player
- Android phone and PAD: HF player

Package included:
- 1 x DSD88 Decoder
- 1 x USB line (1m)
