DSO068 3MHz Mini Digital Oscilloscope DIY Kit Digital Screen Electronic Teaching Practice Suite

DSO068 3MHz Mini Digital Oscilloscope DIY Kit Digital Screen Electronic Teaching Practice Suite

Description:
DSO 068 DIY kit uses through-hole components as much as it can. This makes the scope unique among peers. With through-hole components the kit eases off the requirement of assembly skills and at the same time allows deeper user involvement. Most importantly it brings in the freedom for users to test, modify, experiment, and even design their own projects. And this means more fun!
More over, DSO 068 is not just a kit for training but also a practical tool for everyday use. It was designed on the base of DSO 062 kit and comprises many enhancements in hardware and firmware. No battery included.

Major improvements include:
- Higher sensitivity (10mV/div vs 100mV/div)
- Wider analog bandwidth (3MHz vs 1MHz)
- Larger acquisition buffer (1024 points vs 256 points)
- Variable trigger position (1% - 100%) with indicator
- Test signal generator with variable frequency and amplitude
- USB connection
- Upload of collected raw data as CSV file
- Work as USB scope and data logger
- Higher sensitivity (0.2Vpp vs 3Vpp) in built-in frequecy meter
- Battery/USB powered
- Fully enclosured

Operations of DSO 068 are even easier thanks to silicone pushbuttons and rotary encoder. Parameter setting is simply, straightforward, and quick. Mode switch and utilities are driven by menu. Absolutely no complicate navigation.

This kit is particularly suitable for educational use. It is a great tool for college students.

The DSO 068 Kit consists of the following major parts:
- Main circuit board with pre-soldered ICs and a few SMD parts. Board is pre-tested and MCUs on board are pre-programmed.
- 128 X 64 graphic dot-matrix LCD module.
- Step-up voltage converter board (JYE116). It boosts battery voltage to 5V from as low as 2V.
- Voltage inverter board (JYE120). It generates -5V form +5V with current capacity up to 200mA.
- On/Off switch board (JYE117). This is the power switch of instrument. [optional]
- Li-ion battery charger board (JYE118). It includes the USB/Battery power switch circuit. [optional]
- USB-Uart converter board (JYE119). This bridges the scope to USB host. [optional]
- Professional 20MHz probe with selectable 1X/10X attenuation.
- Enclosure set including stand, switch caps, etc.
- All through-hole components, mechanical parts, and accessaries.

Specification:
Vertical
- Number of Channel: 1
- Analog Bandwidth: 0 - 3MHz
- Sensitivity: 10mV/Div -- 5V/Div
- Resolution: 8-bit
- Input Impedance: 1M ohm
- Maximum Input voltage: 50Vpk (for 1X probe) and 400Vpk (for 10X probe)
- Coupling: DC, AC, GND

Horizontal
- Max Real-time Sampling Rate: 2MSps
- Max Equivalent-Time Sampling Rate: 20MSps
- Timebase: 0.5us/Div - 10m(minute)/Div
- Record Length: 256, 512, and 1024 variable
- Run/Hold Modes: one button switchable

Trigger:
- Trigger Modes: Auto, Normal, Single
- Trigger Types: Rising/falling edge
- Trigger Position: 0% - 100% of acquisition buffer adjustable
- Trig Point Indicator: Yes
- Test Signal Generator
- Frequency adjustable from 1Hz - 100KHz (41 frequencies)
- Amplitude adjustable among 0.3V, 1V, 3V, and 5V

Other Features:
- Save collected waveform to EEPROM and recall after power outage
- Upload screen display as bitmap file
- Upload waveform as CSV file
- USB connection for data transfer and firmware upgrade
- Rotary encoder for quick parameter setting

Display
- 2-inch 128 X 64 black-and-white dot-matrix LCD
- Backlight ON/OFF control
- Contrast adjustable
- Power Supply
- 3.7V Li-ion battery/USB
- Supply Current: 300mA # 3.7V(LCD backlight ON, typical).
- Built-in charger
- Dimension: 140mm X 70mm X 30mm
- Weight: 120 gram (not including battery and probe)

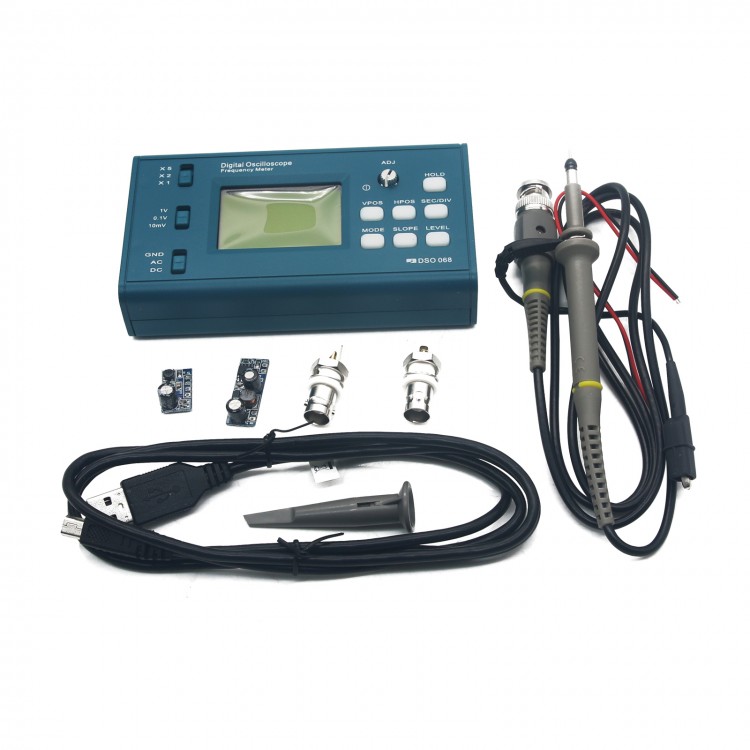

Package Includes:
- 1 * DSO068(Simple Version)
- 1 * BNC Probe
- 1 * USB cable
