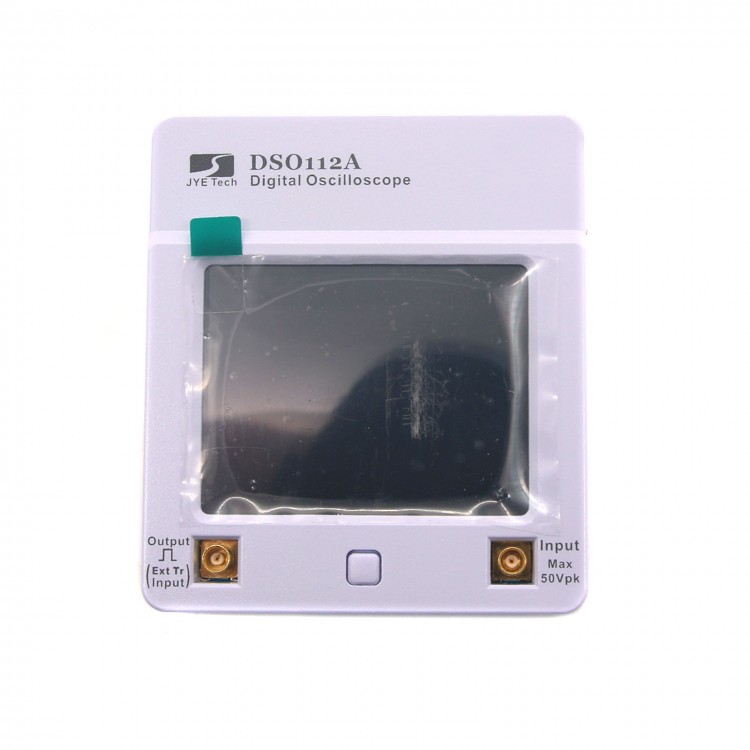

DSO112A Touch Screen 2.4inch TFT Mini Digital Oscilloscope Pocket OSC 2MHz Bandwidth 2.5Msps

DSO112A Touch Screen 2.4inch TFT Mini Digital Oscilloscope Pocket OSC 2MHz Bandwidth 2.5Msps

Features:
- DSO112A is an upgraded model of DSO112  with re-designed schematic and PCB. Due to the new design this oscilloscope becomes more accurate and reliable. Up to 2mV/div sensitivity and ultra low background noise made the device particularly useful for measuring weak signals. While keeping all performance of DSO112 this new model brings in the following improvements:
- Maximum sensitivity is increased to 2mV/div (older version is 5mV/div) with low background noises.
- Fixed vertical position mismatch problem which has been a major drawback with the older version.
- Save/recall up to 24 parameter presets. This allows quick setup for frequently performed measurements.
- Expanded and improved on-screen measurement displays which include frequency, Vmax, Vmin, Vavr, Vpp, and Vrms.
- Added external trigger feature.
- Provided a two-way serial control interface which can output data/measurements and receive commands. This will make the device suitable for integration to customer applications.
- Replaced out-dated miniUSB connector with more popular microUSB connector.
- Enclosure strength enhanced.

Specification:
Vertical
- Number of Channel: 1
- Analog Bandwidth: 0 - 2MHz
- Sensitivity: 2mV/Div - 20V/Div
- Sensitivity error: < 5%
- Resolution: 8-bit
- Input Impedance: 1M ohm
- Maximum Input voltage: 50Vpk
- Coupling: DC, AC, GND
- Voltage measurement cursors available
- Auto-measurement of Vavr and Vpp

Horizontal
- Max Real-time Sampling Rate: 5Msps
- Timebase: 1us/Div - 50s/Div
- Record Length: 512 and 1024 variable
- Time measurement cursors available

Trigger
- Trigger Modes: Auto, Normal, Single
- Trigger Types: Rising/falling edge
- Trigger Position: 1/8, 1/4, 1/2, 3/4, and 7/8 of buffer size
- Trigger Source: internal, external

- External trigger voltage range: 0 - 15V
- Freqencies from 1Hz to 1MHz selectable.
- Amplitude 3.3V fixed
- Save collected waveform to EEPROM and recall after power outage
- Save/recall up to 24 presets
- Serial data/control interface
- USB firmware upgrade
- 2.4" color TFT LCD with 320 x 240 resolution
- Power Supply: 3.7V Li-ion battery/USB
- Supply Current: 300mA @ 3.7V(LCD backlight ON).
- Built-in charger
- Dimension: 80mm X 70mm X 18mm
- Weight: 85 gram (not including cables)

Note: Battery is not inlucded.

Package list:
- DSO112A body  X1
- USB cable  X1
- MCX clip cables  X2
