DSO1511G Yellow Digital Oscilloscope & Signal Generator 120M Analog Bandwidth 500M Sampling Rate

DSO1511G Yellow Digital Oscilloscope & Signal Generator 120M Analog Bandwidth 500M Sampling Rate

Basic Functions:
* 120M bandwidth
* Signal generator
* 14 kinds of parameters can be measured
* 10mV vertical sensitivity
* Video output
* FFT spectrum analysis
* Waveform image export

Features:
* USB has been upgraded to TYPE-C.
* Signal generator is added (7 waveforms such as sine wave, square wave and triangle wave supported).
* Compact size, powerful functions, more stable performance and higher accuracy.
* Wider field of view. Support for stop mode allows users to drag and expand waveforms for easy analysis and problem finding.
* Single trigger: measurement of power-on waveform or for single sampling observation, etc.
* Adapt waveforms to the screen with one click.
* One key 50%, quickly let the waveform and trigger automatic centering.
* Infinite afterglow: Waveforms do not disappear and burrs have nowhere to escape.
* 120M analog bandwidth: Using the Soviet analog oscilloscope front-end solution, it supports 120M bandwidth. It can easily handle measurement and testing in various fields, such as MCU debugging, car maintenance, home appliance repair, personal DIY debugging, electronic competition, power supply debugging and frequency converters. It can also be used as a portable tool, which is convenient for users to go out for on-site commissioning.
* Precision adjustable square wave output: The top of the oscilloscope outputs an adjustable square wave with an amplitude of 3V. The frequency adjustment range is 0~2MHz, the accuracy is as high as 0.1Hz, and the duty cycle adjustment range is 1%~99%. It can be used for new probe calibration, driving MOSFETs, replacing crystal oscillators (testing for crystal oscillators for problems), etc. For novices, it can also be used to learn to use oscilloscopes, saving the cost of expensive signal generators.
* FFT spectrum analysis: FFT is a tool for converting waveforms in the time domain to the frequency domain. It can be widely used in harmonic analysis and other fields. It adopts the base-4 butterfly algorithm, which is N times faster than the traditional base-2 algorithm. It supports three display modes, including logarithmic, linear and music spectrum modes.
* Reference waveform: It can lock the current waveforms to the screen to compare. Normally refreshed waveforms are not affected. The reference waveform is useful for single-channel oscilloscopes. For example, if you want to compare the driving waveforms of two MOSFETs, you can first measure the waveform of one of the MOSFETs and lock the waveform to the screen. The probe is then moved to measure another MOSFET so that the two drive waveforms can be displayed on the screen at the same time for easy comparison.
* Rich trigger functions: It supports automatic trigger, normal trigger and single trigger. 1. Automatic triggering: Real-time waveform updates without triggering. 2. Normal triggering must have a waveform trigger to update the waveform. 3. A single trigger samples a frame of waveform after pressing a button and stops automatically.
* Cursor measurement: Cursor measurement is a very important tool in oscilloscopes. For some special signals such as non-periodic signals, noisy signals, or narrow pulses, automatic measurement cannot meet the measurement needs of users, so it is necessary to manually adjust the cursor to measure.
* Save/preview waveforms: Store screen waveforms with one click. After entering the waveform preview page, users can click the thumbnail to observe it in full screen. It can store up to 250 waveform charts. Users can delete unwanted waveforms.
* With waveform analysis function: After stopping, users can drag the waveform left and right, find the place you are interested in, expand the details, and analyze the problem. Generally, only desktop oscilloscopes have this function.
* Export the waveform chart to your computer: By connecting via a USB cable, user-stored waveform graphs can be exported to a computer (up to 50 at a time). Copy the waveform pictures to your computer. These waveform pictures can be used in papers or related copy-writing, or sent to others to analyze problems.
* Support video output: Its screen can be projected to a TV or projector via a single video cable (as long as the display device supports AV interface). Users can view waveforms on a larger screen.

Specifications:
* Model: DS01511G
* Number of channels: 1
* Screen size: 2.4 inches
* Screen resolution: 320*240
* Analog bandwidth: 120M
* Sampling rate: 500M
* Rise time: <3ns
* Storage depth: 128Kbit
* Input impedance: 1MΩ
* Time base range: 5ns-10s
* Vertical sensitivity: 10mV/div-100V/div
* Maximum measuring voltage: ±40V (probe 1X gear) and ±400V (probe 10X gear)
* Trigger mode: Automatic/Normal
* Trigger type: Rising/Falling edge
* Display mode: YT/scroll
* Afterglow time: 1s/∞
* Channel coupling: AC/DC
* One-click automatic mode: Support
* Waveform measurement: 14 types
* Measurement accuracy: ±2%
* Reference waveform: Support
* Waveform saving: Support
* Frequency accuracy: ±0.01%
* Single trigger: Support
* FFT: Support
* Signal output: Frequency duty cycle adjustable
* 50% (back to middle): Support
* Dimensions: 73 x 93 x 32mm/2.9 x 3.7 x 1.3"
* Language: Chinese/English
* Battery capacity: 2500mA
* Charging method: Type-c 5V

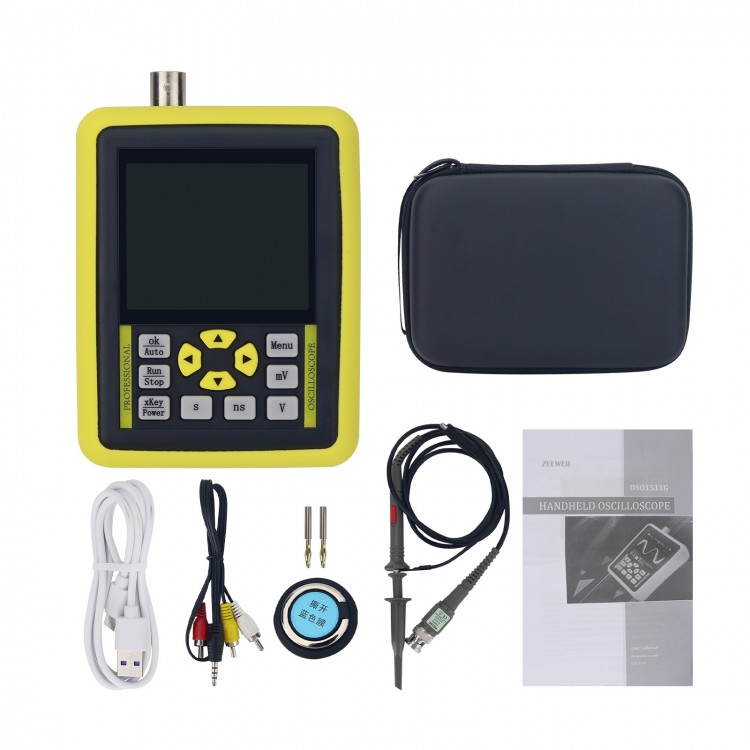

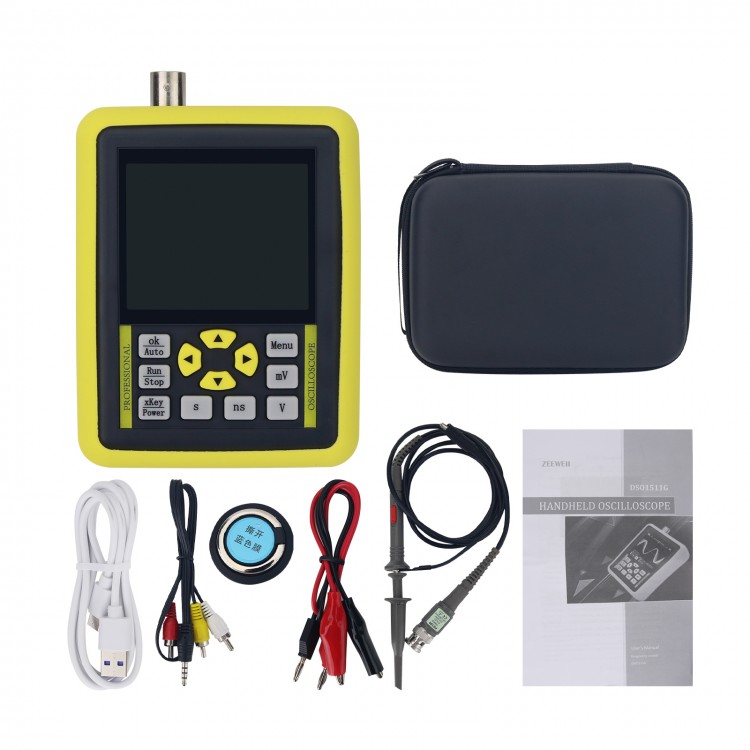

Package Included:
* 1 x Oscilloscope Signal Generator
* 1 x P6100 Probe
* 1 x Type-C Data Cable
* 1 x Video Cable
* 1 x Ring-shaped Stand
* 1 x Storage Bag
* 1 x User Manual
