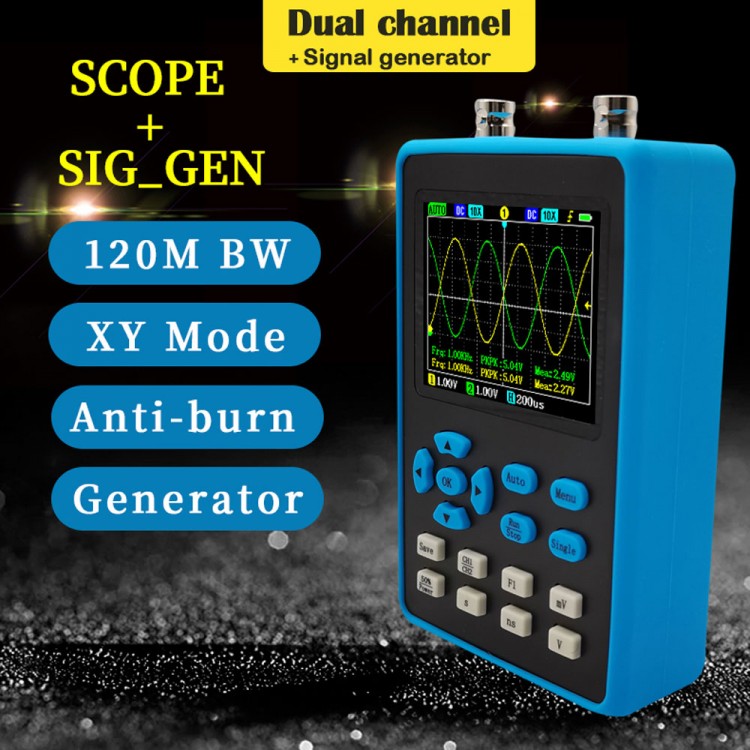

DSO2512G 120M Bandwidth Portable Handheld Dual Channel Oscilloscope 10mV Minimum Vertical Sensitivity FFT Spectrum Analysis

DSO2512G 120M Bandwidth Portable Handheld Dual Channel Oscilloscope 10mV Minimum Vertical Sensitivity FFT Spectrum Analysis

Description:
- This DSO2512G 120M bandwidth oscilloscope with powerful functions, like adopt ARM and FPGA chip collocation, also can output Various waveforms of 2.5V amplitude such as sine waves, half waves and so on. Come on and try it, it will not let you down.

Features:
- Adopts ARM and FPGA chip collocation, provides high-speed signal acquisition and high-speed data processing to give you a smooth use experience and rich functions.
- When the channel two closed, the bandwidth can reach 120M, the bandwidth is 60M when the channel 1 and 2 open at the same time.
- Wide applications: can be used for such as sin-gle-chip debugging, car maintenance, home appliance maintenance, DIY debugging, electronic competition, power supplys debugging, frequency converter and so on.
- The bottom of the oscilloscope can output a variety of waveforms of 2.5V amplitude such as sine waves, square waves, trian-gle waves, half waves, singh waves, among which the frequency adjustment ranges of sine waves is 0~ 10MHz, the frequency ranges of other waveforms is 0~2MHz, and the accuracy is up to 0.1Hz. Signal generators are widely used, such as square waves for new probe calibration, driving MOS tube, etc., sine waves can be used for testing audio distortion, etc.
- There are 14 measurement options available: Frequency, P-eak to P-eak, Duty cycle, Amplitude, RMS, Average, Period, +Pulse width, -Pulse width, Max, Min,Top, Base, -Duty cycle.
- There are three types of trigger mode: auto, normal and sin-gle, the automatic trigger can update the waveform in real time without triggering, the normal trigger need have a waveform trigger to update the waveform and the sin-gle trigger will sample a fr-ame of waveform and stop automatically after the k-ey is pressed.
- Through USB cable connection, the waveform map can be exported to the com-puter (up to 50 at a time)  for you re others to use.
- Support scaling waveform after stopping: after stopping, you can drag the waveform from left to right to find the place you are interested in to expand the observation details and analyze the cause of the problem.

Specifications:
- Material: ABS
- Channels: 2
- Coupling: AC/DC
- Precision of V: ±2%
- Bandwidth 120M
-  XY mode: support
- Sampling rate: 500M
- Screenshot: support
- Rise time: <3ns
- Frequency: ±0.01%
- Storage depth: 128Kbit
- Sin-gle: support
- Impedance: 1MΩ
- FFT: support
- Time base: 5ns~10s
- Wa-ve out amp: 2.5V
- Ver sensitivity: 10mV/div~10V/div
- Waves out freq: 10MHz(sin) 2MHz(other)
- Max voltage ±40V(x1), ±400V(x10）
- Trigger type: rise/fall
- Display mode: YT/Roll
- Persistence: None/1s /∞
- Battery: 1 * lithium battery, 4000mAh (included)
- Package size: 210 * 140 * 115mm / 8.3 * 5.5 * 4.5in
- Package weight: 689g / 1.5lb

Packing list:
- 1 * Oscilloscope
