Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $156.60 | $153.41 | $148.61 | $142.22 | Contact US |

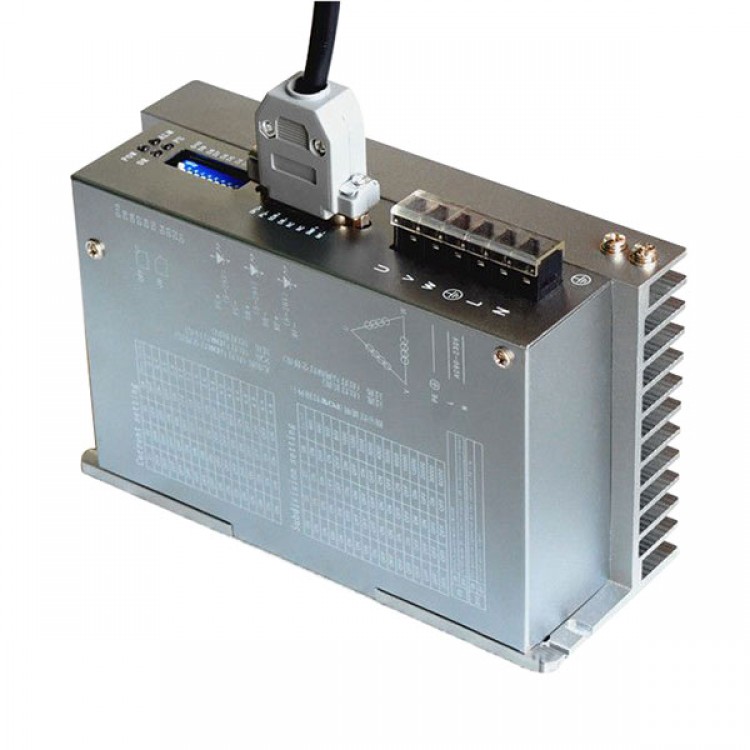

DSP 110 3 Phase Stepper Motor Driver PAS3-10522 AC220-80V 5A High Speed Type
Description:
- This dreiver is the newest product based on DSP high speed chip high performance driver, special current vector control technology makes motor operate very smooth, high speed performance, torque force is larger than traditional technology, has better impulse adapting ability, will not got stucked, suitable for high grade situation
- Voltage: AC220-80V,
- Current: 2.2-5 adjustable
- Microscope step is 400, 500, 600, 800, 1000, 1200, 2000, 3000, 4000, 5000,6000,10000, 12000, 20000, 30000, 60000, (other special expansion microscope: 1250,1500,1600,2400,2500,3200,4800,6400,7500,8000,12800,15000,24000,25600,40000,51200, if you need these microstep, ask the customer service)
- Cooperate with 3 phase 110-20N stepper motor to test, unload speed can reach 2000r/min
- Dimension: 178*108*68
- Differential signal terminal input, high speed coupled isolation, max frequency is 2M, weight 1kg, the driver side has two fixed slots, side width: 4mm
