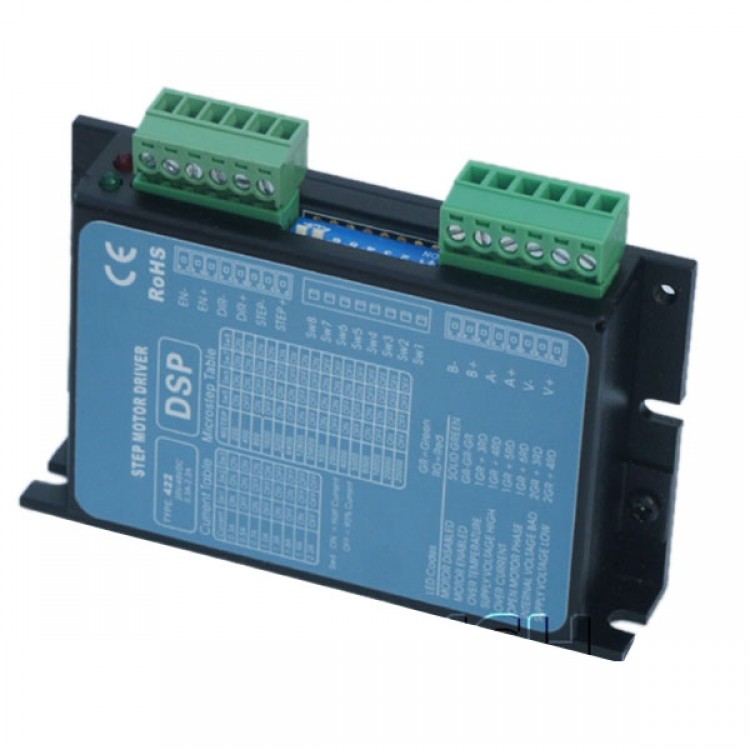

DSP 42 Two Phases Stepper Motor Driver PAS2-42205 DC48V 2.25A High Speed Type w/ DSP High Speed Chip High Speed Good Performance

DSP 42 Two Phases Stepper Motor Driver PAS2-42205 DC48V 2.25A High Speed Type w/ DSP High Speed Chip High Speed Good Performance

Description:
- This product is a high performance driver of the newest technology based on DSP high speed chip. The special current vector controlling techinolly enables the motor operate smoothly , good speed accelerating capacity, large torque supass traditional driver, better adaptability to sudden changes or frequent reversed pulse, less jammed or out of steps, can adjust to high grade occasion. the highest frequency is 2M

Specificaion:
- Voltage: 48V-20V
- Current: 0.3-2.2A  adjustable
- Subdivision number of steps: 200, 400, 800, 1600, 3200, 6400, 12800, 25600, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 25000
- Suitable for 42 or below, 3A or below 2 phases stepper motor
- High speed performance, smooth operating, small noise and vibration, semi - automatic flow.
- Self operation,  smooth pulse, motor inertia, pulse filter (anti-interference) and other special functions (the user choose open or closed).
- With two phases 42-2.5 stepper motor test, maximum no-load could run up to 3000 rpm, 1600 RPM can drive CNC stable work.
- Can reach as high as 80V high voltage power supply, which can provide good high speed performance
- Recommend 36V transformer and rectifier filter plate as power supply (36V alternating current rectifier, DC voltage can reach DC50V), each motor is calculated according to 150W power supply.
- 4 mounting holes on two sides
- Weight: 0.12KG
- Differential signal input port, high speed optocoupler isolation.
- 4 installation slots on two sides, groove width 3.5mm
