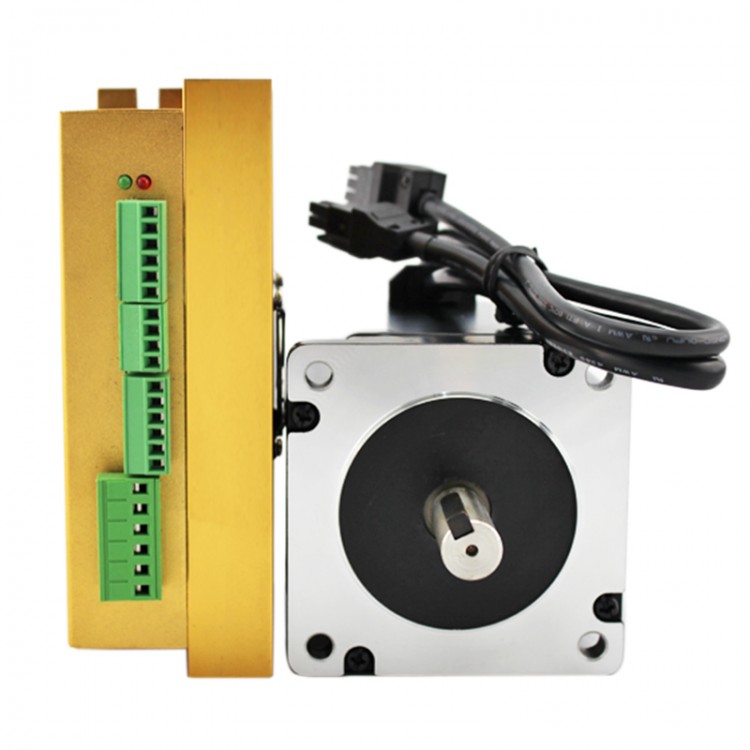

DSP Closed-Loop Step Motor Driver Kit 20-70VAC/30-100VDC 2PH 7.5A 10.5NM NEMA34 86mm Laser Machine LC86H2128+LCDA86H

Availability: In stock, usually dispatched in 1 business day

  • Price:$259.66
  • Price in reward points: 2597 Reward Points: 26
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $254.47 $249.27 $241.48 $231.10 Contact US
Quantity:

DSP Closed-Loop Step Motor Driver Kit 20-70VAC/30-100VDC 2PH 7.5A 10.5NM NEMA34 86mm Laser Machine LC86H2128+LCDA86H

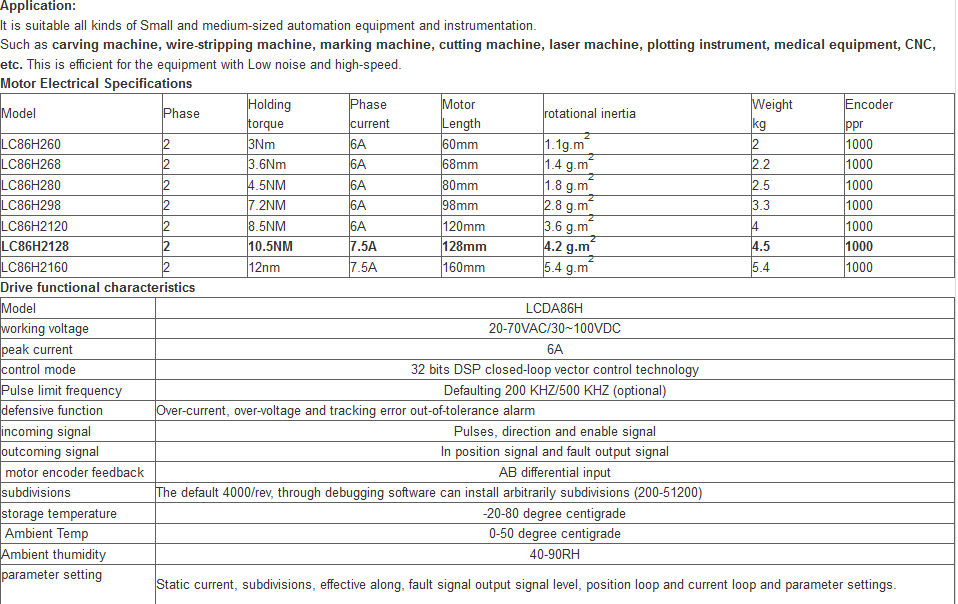

Motor Parameters:

- Product Name: 2 phases 86 closed loop stepper motor
- External Diameter: 86mm * 86mm
- Highest speed: 1200 rolls/min
- Motor Length: 90mm~190mm(encoder contained)
- No. of encoder: 1000
- Holding Torque: 3 N.M~12 N.M
- Diameter of Axle: 14 mm
- Weight: 2.0 kg~5.4 kg
- Matchable Driver: LCDA86H

Package Included:
- 1 x DSP Closed-Loop Step Motor Driver Kit (LC86H2128+LCDA86H)
