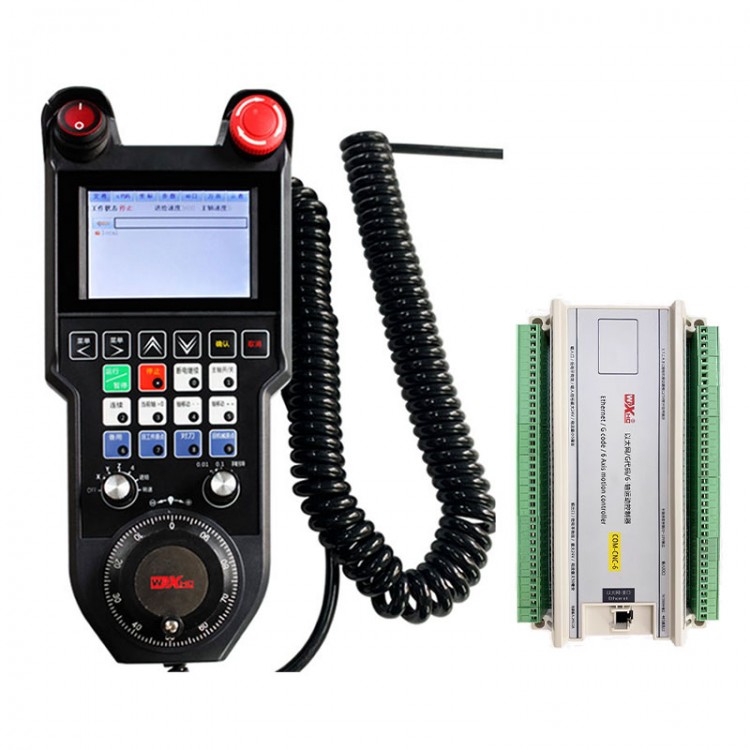

DSP-J2 4-Axis DSP Motion Controller System CNC Motion Controller Handwheel with 3.5-inch LCD Screen
Features:
- Support 3-axis or 4-axis motion control.
- 3.5-inch LCD screen, displaying software status, workpiece coordinate, machine coordinate, IO status and other information.
- Support step and servo driver, 5V differential signal.
- Support 0-10V analog voltage control Variable-frequency Drive (VFD).
- Support machine home and workpiece home functions.
- Support tool probe function and floating tool probe.
- Support limit function, limit switch limit and software limit.
- Supports 29 input IO and 13 output IO.
- Support standard G code, NC/txt/tap format file, and interpreter Look ahead.
- Support M macro code function, macro code script.
- Support handwheel function, step and continuous mode.
- Support breakpoint continuation function.
- Support to read U disk.
- Support automatic interpolation of lines and arcs.
- Support for cubic splines.
- Support Chinese and English language switching, inch and mm switching
Package Included:
- 1 x Handwheel
- 1 x Motion Control Card
