As
the enhanced version of AWC708C LITE,Awc708c plus support 6 axes &4
laser heads separated control and multi head movement control.It
provides powerful functionality and suits for customer secondary
development.
Technical Parameters:

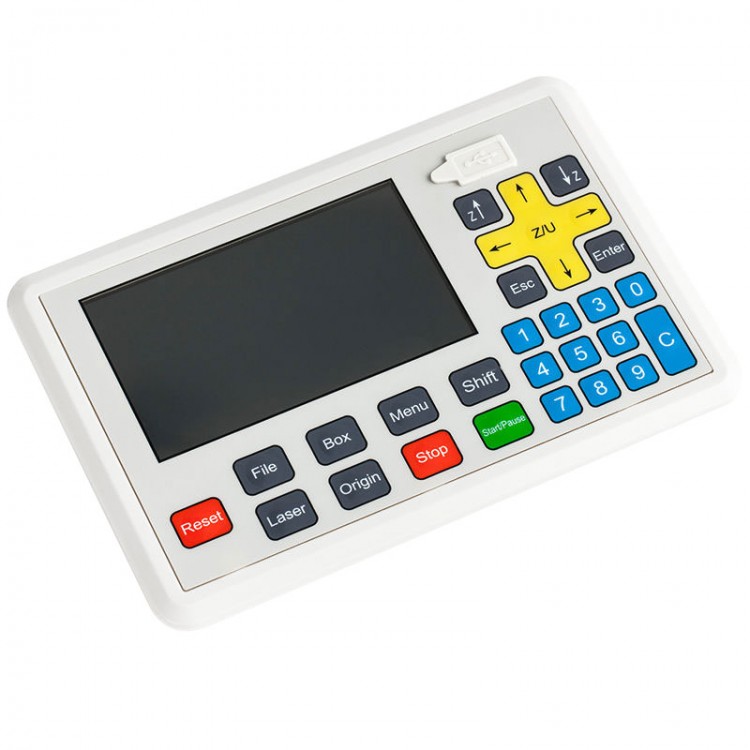

Model | AWC708C PLUS |
Power | DC24V/3A |
Input | 6 roads |
Output | 6 roads |
Control Axes | X Y Z U V W Axes |
Laser Quantity | Four heads which could be separated adjusted |
Laser Sources | Continuous,RF,Co2 and solid laser source |
Laser Power Control | 0-100% 0.1% continuously adjustable |
Precision | 0.01mm |
Support Format | DST,PLT,BMP,DXF,AI |
Support Software | LaserCAD(support CorelDRAW,AutoCAD,Adobe |
Product Features:
1,
New generation 32 high speed CPU with better property;Add series
humanized function such as live automatic tracking display,Origin model
selection,etc
2, Support local time clock.Compared with 608 series,encryption function is more humanized.
3, Can select completed off-line work model to set up device parameters.
4, Completed light-coupled isolated external electromagnetic interference to make working performance more stable.
5, Support auto reset setting.
6,
USB 2.0 High speed interface is available.More stable for U disk to
read and write files.Can discern various brand U disk;Network model and
USB model are supported.Faster steady transportation.
7, Max 6 axes and 4 laser source control.Perfect stability with servo and stepper motor system.
8,
Support separated layer parameters output.Output power,speed and laser
model of each layer can be independent set.Also all changes will be auto
saved.Cutting and engraving mixed plenty working task could be finished
one time.PC software latest intelligent auto order craft helps users to
save materials and time as much as possible.
Please leave your mail address if you need the LaserCAD software. So we can send you by mail.
Package list:
- Controller+control panel+USB cable+wire cable
