DSTIKE Deauther Watch MiNi (V1) Wearable Smart Watch Assembled ESP8266 Development Board 1.3" OLED

DSTIKE Deauther Watch MiNi (V1) Wearable Smart Watch Assembled ESP8266 Development Board 1.3" OLED

Attention:
Deauther Watch MiNi (V1) does not have RTC. So clock function can not be used.



What is it?

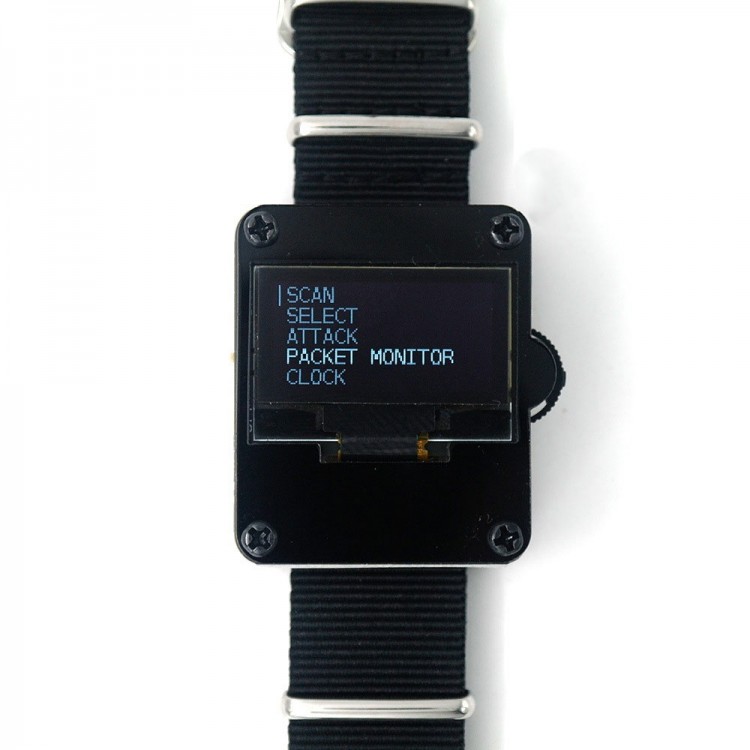

Deauther Watch is still an ESP8266 development board, but you can wear it like a smartwatch.

It comes installed with the latest ESP8266 Deauther software. With this software, you can perform different attacks to test WiFi networks.

Please note that the ESP8266 does only support 2.4GHz.

You can also use it to develop your own software. It is simple to use, just like any other ESP8266 development board.

Function:
- Deauther Attack: Disconnect 2.4G WiFi
- Deauther Beacon: Create fake networks
- Deauther Probe: Confuse wifi trackers
- Packet Monitor: Display wifi traffic

GPIOs and Hardware Info:
- Display: SH1106 1.3" OLED
- Display SDA: GPIO 5
- Display SCL/SCK: GPIO 4
- WS2812b LED: GPIO 15
- Button Up: GPIO 12
- Button Down: GPIO 13
- Button Select: GPIO 14
- Laser: GPIO 16
- Side Button: RST

Why did you make it?
I designed this development board especially for Spacehuhn's great project: ESP8266 Deauther. It has been authorized by him and is officially supported.

Thanks to every customer that leaves feedback! I will keep improving this board.

What makes it special?
- Only ~80mA power usage
- 500 mA charging current
- Wood cover and 3D print case
- Indicate charging LED (RED will turn off when full)
- ESP12F Inside
- Power Switch
- Protection: short, overcharging, over discharging, temperature

Disclaimer:
This project is a proof of concept for testing and educational purposes. Neither the ESP8266, nor its SDK was meant or built for such purposes. Bugs can occur!

Use it only against your own networks and devices! Please check the legal regulations in your country before using it. We don't take any responsibility for what you do with this program.

More Info:
Deauth
Closes the connection of WiFi devices by sending deauthentication frames to access points and client devices you selected. This is only possible because a lot of devices don't use the 802.11w-2009 standard that offers a protection against this attack. Please only select one target! When you select multiple targets that run on different channels and start the attack, it will quickly switch between those channels and you have no chance to reconnect to the access point that hosts this web interface.

Beacon
Beacon packets are used to advertise access points. By continuously sending beacon packets out, it will look like you created new WiFi networks. You can specify the network names under SSIDs.

Probe
Probe requests are sent by client devices to ask if a known network is nearby. Use this attack to confuse WiFi trackers by asking for networks that you specified in the SSID list. It's unlikely you will see any impact by this attack with your home network.

Videos:
- Software 2.6.0 Introduction https://www.youtube.com/watch?v=TMvpJiE8Yy8
- How to install antenna of deauther watch https://youtu.be/JJTnT9NM6Qg
- How to increase the maximum effect of antenna https://youtu.be/PZvyq5-3-bY
- How to connect smart phone https://youtu.be/YpCH9FgOR9w
- DSTIKE Deauther Watch Demo https://youtu.be/9zA6AB7qYe8
- NTP Time server functions https://youtu.be/m4BKdPXVOYM
- How to install DSTIKE for Arduino environment   https://youtu.be/wYPD3j6Pk7U
- How to use 8266 flash tool flash deauther firmware   https://youtu.be/MxukE5ZsBSk

Package Included:
- 1 x DSTIKE Deauther Watch

Note:
- It is assembled and ready to use.
