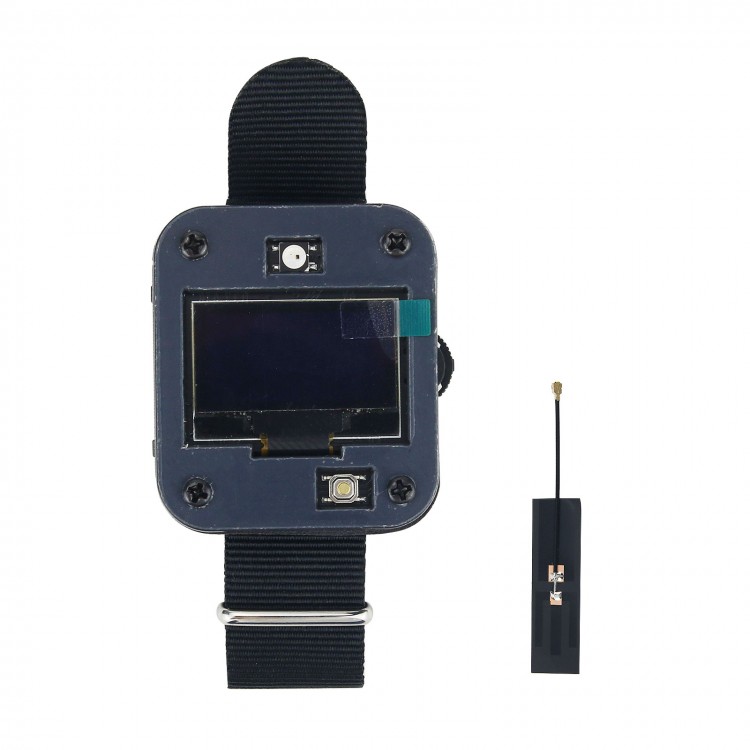

DSTIKE Deauther Watch V2 ESP8266 Development Board w/ 1.3" OLED Display Assembled
Update Log:
What is it?
Deauther Watch is still an ESP8266 development board, but you can wear it like a smartwatch.
This ESP8266 development board comes a OLED display and a 3-way momentary slide switch.
It comes installed with the latest ESP8266 Deauther software. With this software, you can perform different attacks to test WiFi networks.
Please note that the ESP8266 does only support 2.4GHz. For more details on the software, visit https://github.com/spacehuhn/esp8266_deauther
You can also use it to develop your own software. It is simple to use, just like any other ESP8266 development board.
GPIOs and Hardware Info:
- Display: SH1106 1.3" OLED
- Display SDA: GPIO 5 (D1)
- Display SCL/SCK: GPIO 4 (D2)
- WS2812b LED: GPIO 15 (D8)
- Button Up: GPIO 12
- Button Down: GPIO 13
- Button Select: GPIO 14
- High Light LED: GPIO 16
- Side Button: GPIO0, RST
Why did you make it?
I designed this development board especially for Spacehuhn's great project: ESP8266 Deauther https://github.com/spacehuhn/esp8266_deauther. It has been authorized by him and is officially supported.
Thanks to every customer that leaves feedback! I will keep improving this board.
What makes it special?
- Indicate charging LED (25%, 50%, 75%, 100%)
- Included 5dB FPC antenna and 2dB antenna
- Power Switch (Click to turn on, double click to turn off)
- Protection: short, overcharging, over discharging, temperature
- Added Extremely Accurate DS3231
Disclaimer:
Use it only for testing and educational purposes against your own devices! I don't take responsibility for what you do with it.
Please check the legal regulations for your country to make sure you don't violate any laws.
You can get full information from WiKi: https://github.com/spacehuhn/esp8266_deauther/wiki
Assemble Video: https://youtu.be/dbyJJobu1is
Scehmatic and 3D Print Design files: https://github.com/lspoplove/Deauther-Project/tree/master/DeautherWatchV2
RTC Test: https://github.com/lspoplove/Deauther-Project/tree/master/DeautherWatchV2/RTCTest
Package Included:
- 1 x Set of DSTIKE Deauther Watch V2 Assembled
Note:
- Optional Colors: Black, White. Please choose the color you want while purchasing. Thank you!
- It is finished and ready to use.
