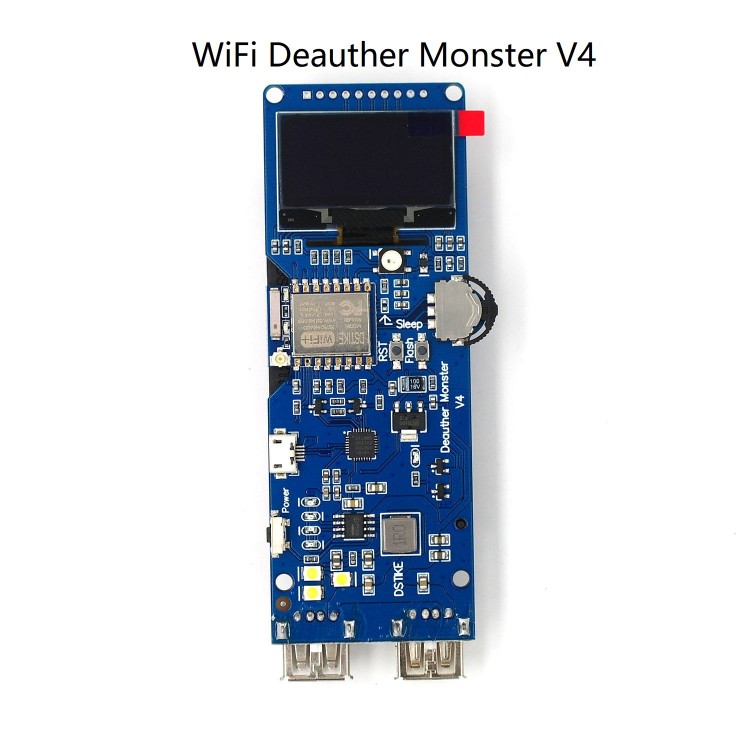

DSTIKE WiFi Deauther Monster V4 ESP8266 Development Board Kit For Arduino

https://github.com/lspoplove/Deauther-ProjectDSTIKE WiFi Deauther Monster V4 ESP8266 Development Board Kit For Arduino

Attention:
The most important upgrade of V4 is FLASH up tp 4MB!!

The newest software version is V2.1.0.If you receive old version you can update it yourself.

This product does not include a battery. We recommend two LG 3350 mAh flat 18650 battery.

What is it?
This ESP8266 development board comes with an integrated 18650 charging system, OLED display and a 3 way momentary slide switch.

It comes installed with the latest ESP8266 Deauther software. With this software, you can perform different attacks to test WiFi networks.

Please note that the ESP8266 does only support 2.4GHz. For more details on the software, visit: https://github.com/spacehuhn/esp8266_deauther

You can also use it to develop your own software. It is simple to use, just like any other ESP8266 development board.

GPIOs and Hardware Info:
- Display: SH1106 1.3" OLED
- Display SDA: GPIO 5 (D1)
- Display SCL/SCK: GPIO 4 (D2)
- WS2812b LED: GPIO 15 (D8)
- Button Up: GPIO 12
- Button Down: GPIO 13
- Button Select: GPIO 14

Breakout Pins:
- GPIO-16
- GPIO-3(RXD)
- GPIO-1(TXD)
- GPIO-5(SDA)
- GPIO-4(SCL)
- GPIO-0
- GPIO-2
- 3.3V
- GND
- 5V

Why did you make it?
I designed this development board specially for Spacehuhn's great project: ESP8266 Deauther https://github.com/spacehuhn/esp8266_deauther
It has been authorized by him and is officially supported.

Thanks to every customer that leaves feedback! I will keep improving this board.

What makes it special?
- Only ~100mA power usage
- Included 8dB antenna and Acrylic case
- 4 LEDs to indicate battery status in real time
- Reverse LED indicate wrong battery direction (battery is not included)
- Power button: Click to turn on, double click to turn off, long click will open high light LED
- Protection: short, over charging, over discharging, temperature,polarity
- Break out GPIOs of ESP8266

Disclaimer:
Use it only for testing and educational purposes against your own devices!
I don't take responsibility for what you do with it.

Please check the legal regulations for your country to make sure you don't violate any laws.

Wiki: https://github.com/spacehuhn/esp8266_deauther/wiki
Hardware: https://github.com/lspoplove/Deauther-Project
Software Code: https://github.com/spacehuhn/esp8266_deauther
Design Files and Schematic: https://github.com/lspoplove/Deauther-Project/tree/master/Deauther-Monster
Video: https://www.youtube.com/watch?v=wi_SUD5vWqI

Package Included:
- 1 x Deauther Monster V4
- 1 x 10p Pin Header
- 1 x 8dB Antenna
- 8 x Screws
- 4 x Supports (Long)
- 4 x Supports (Short)
- 2 x Acrylic Cases
- 1 x PH2.0 Connector
