DSTIKE WiFi Deauther Watch Smart Watch ESP8266 Development Board 3D Printing Shell Finished

DSTIKE WiFi Deauther Watch Smart Watch ESP8266 Development Board 3D Printing Shell Finished

Attention:

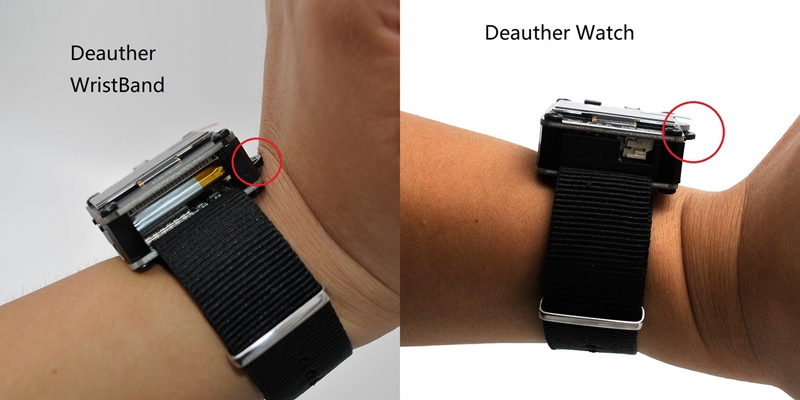

I provide 3D print case only for Deauther Watch. But I do not provide case for old Deauther Wristband.

3D Print Case Download: https://github.com/lspoplove/Deauther-Project/blob/master/3DPrint/DeautherWatch.STL

Assemble Video: https://youtu.be/-aw1laQx-1c

WIKI: https://github.com/spacehuhn/esp8266_deauther/wiki

Hardware: https://github.com/lspoplove/Deauther-Project

Software: https://github.com/spacehuhn/esp8266_deauther

What is it?
Deauther Watch is still an ESP8266 development board, but you can wear it like a smartwatch.

This ESP8266 development board comes with OLED display and a 3-way momentary slide switch.

It comes installed with the latest ESP8266 Deauther software. With this software, you can perform different attacks to test WiFi networks.

Please note that the ESP8266 does only support 2.4GHz. For more details on the software, visit here.

You can also use it to develop your own software. It is simple to use, just like any other ESP8266 development board.

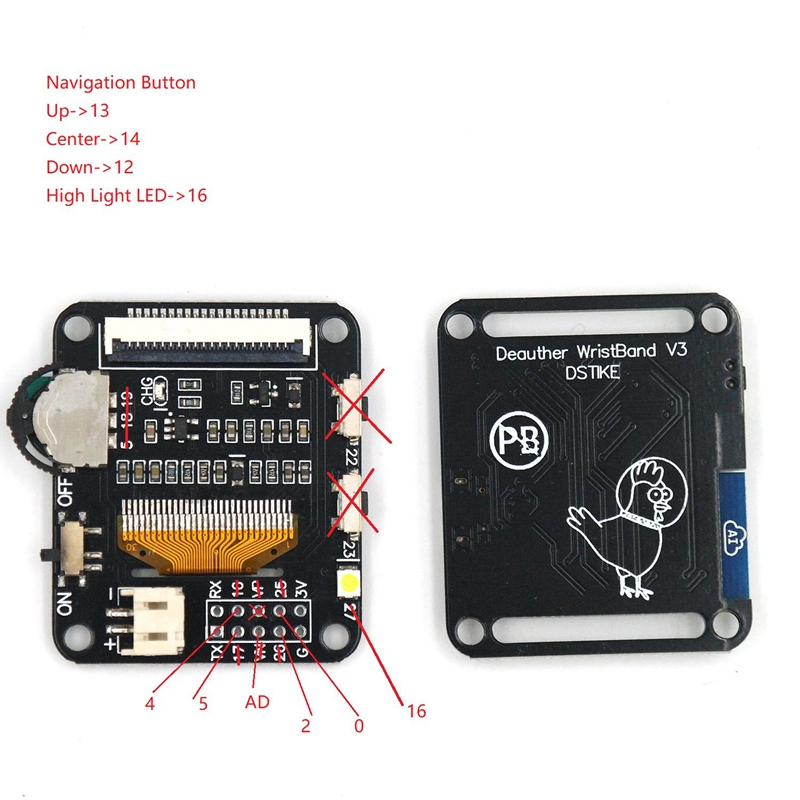

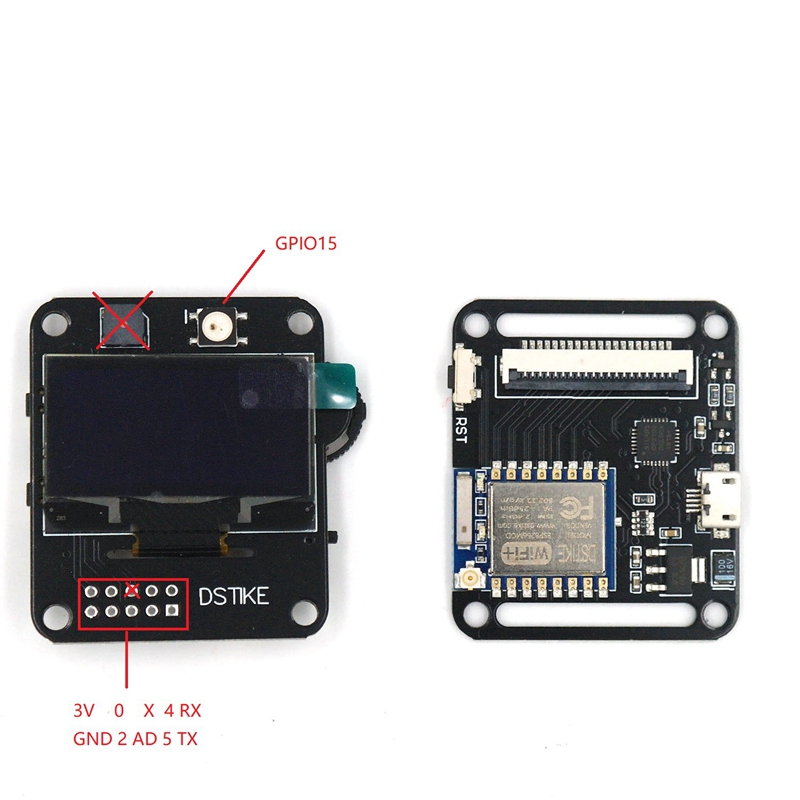

GPIOs and Hardware Info:
- Display: SH1106 1.3" OLED
- Display SDA: GPIO 5 (D1)
- Display SCL/SCK: GPIO 4 (D2)
- WS2812b LED: GPIO 15 (D8)
- Button Up: GPIO 12
- Button Down: GPIO 13
- Button Select: GPIO 14
- High Light LED: GPIO 16
- Side Button: GPIO0, GPIO2, RST

Why did you make it?
I designed this development board especially for Spacehuhn's great project: ESP8266 Deauther. https://github.com/spacehuhn/esp8266_deauther It has been authorized by him and is officially supported.

Thanks to every customer that leaves feedback! I will keep improving this board.

What makes it special?
- Only ~80mA power usage
- Up to around 7 hours work time
- 200 mA charging current
- Indicate charging LED (Red means charging, off means full)
- Included 5dB antenna
- Power Switch (Strongly recommend turn it off when charging)
- Protection: short, overcharging, over discharging, temperature

Usage:
You can use it with the display and buttons.

You can also connect to "pwned" with the password "deauther" and use the web interface.

If you lost the password you can reset it.

Disclaimer:
Use it only for testing and educational purposes against your own devices! I don't take responsibility for what you do with it.

Please check the legal regulations for your country to make sure you don't violate any laws.

Package Included:

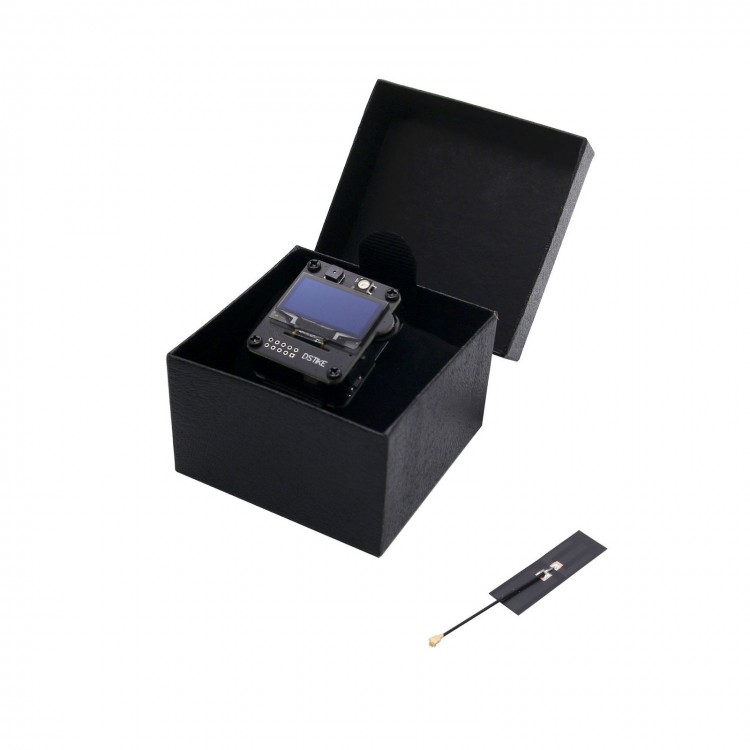

- 1 x Set of DSTIKE WiFi Deauther Watch

Note:
- It is finished and ready to use.
- Battery is not included in the package.
