DSTIKE WiFi Deauther Wristband Smart Watch Wearable ESP8266 Development Board For Arduino Black

DSTIKE WiFi Deauther Wristband Smart Watch Wearable ESP8266 Development Board For Arduino Black

What is it?

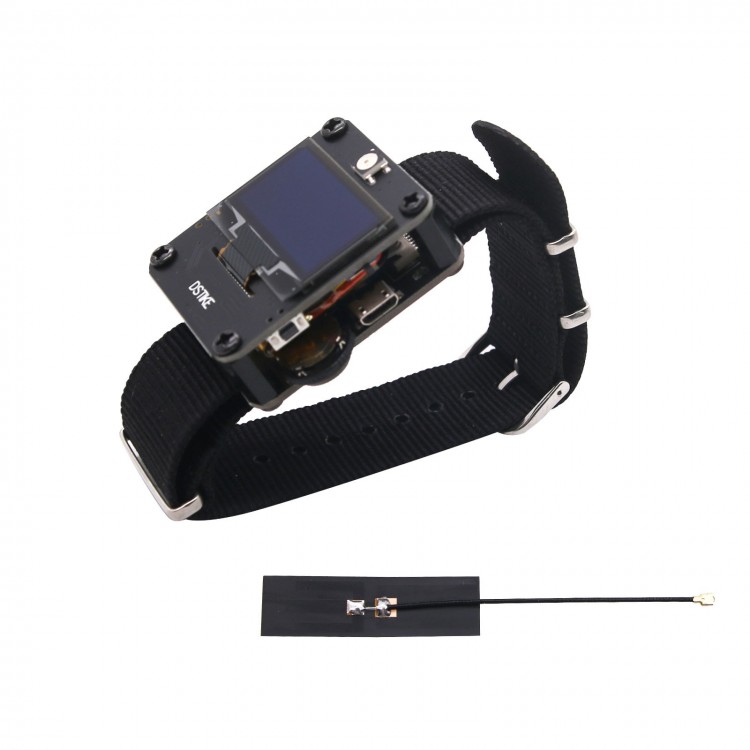

Deauther Watch is still an ESP8266 development board, but you can wear it like a smartwatch.

This ESP8266 development board comes with a 600mAh battery (not included), OLED display and a 3-way momentary slide switch.

It comes installed with the latest ESP8266 Deauther software. With this software, you can perform different attacks to test WiFi networks.

Please note that the ESP8266 does only support 2.4GHz. For more details on the software, visit here. https://github.com/spacehuhn/esp8266_deauther

You can also use it to develop your own software. It is simple to use, just like any other ESP8266 development board.

GPIOs and Hardware Information:
- Display: SH1106 1.3" OLED
- Display SDA: GPIO 5 (D1)
- Display SCL/SCK: GPIO 4 (D2)
- WS2812b LED: GPIO 15 (D8)
- Button Up: GPIO 12
- Button Down: GPIO 13
- Button Select: GPIO 14
- High Light LED: GPIO 16
- Side Button: GPIO0, GPIO2, RST

Why did you make it?
I designed this development board especially for Spacehuhn's great project: ESP8266 Deauther. https://github.com/spacehuhn/esp8266_deauther

Thanks to every customer that leaves feedback! I will keep improving this board.

What makes it special?
Only ~80mA power usage
Up to around 7 hours work time
200 mA charging current
Indicate charging LED (Red means charging, off means full)
Included 5dB antenna
Power Switch (Strongly recommend turn it off when charging)
Protection: short, overcharging, over discharging, temperature

Usage:
You can use it with the display and buttons. https://github.com/spacehuhn/esp8266_deauther/wiki/Setup-Display-&-Buttons

You can also connect to "pwned" with the password "deauther" and use the web interface. https://github.com/spacehuhn/esp8266_deauther/wiki/Web

If you lost the password you can reset it.

Disclaimer:
Use it only for testing and educational purposes against your own devices! I don't take responsibility for what you do with it.

Please check the legal regulations for your country to make sure you don't violate any laws.

Specs and Docs:
- CP2102 Driver Download: https://github.com/spacehuhn/esp8266_deauther/wiki
- Source Code: https://github.com/spacehuhn/esp8266_deauther
- Documentation: https://github.com/spacehuhn/esp8266_deauther/wiki
- Design Files: https://github.com/lspoplove/Deauther-Project

Package Included:
- 1 x Deauther Wristband
- 1 x 5dB Antenna
