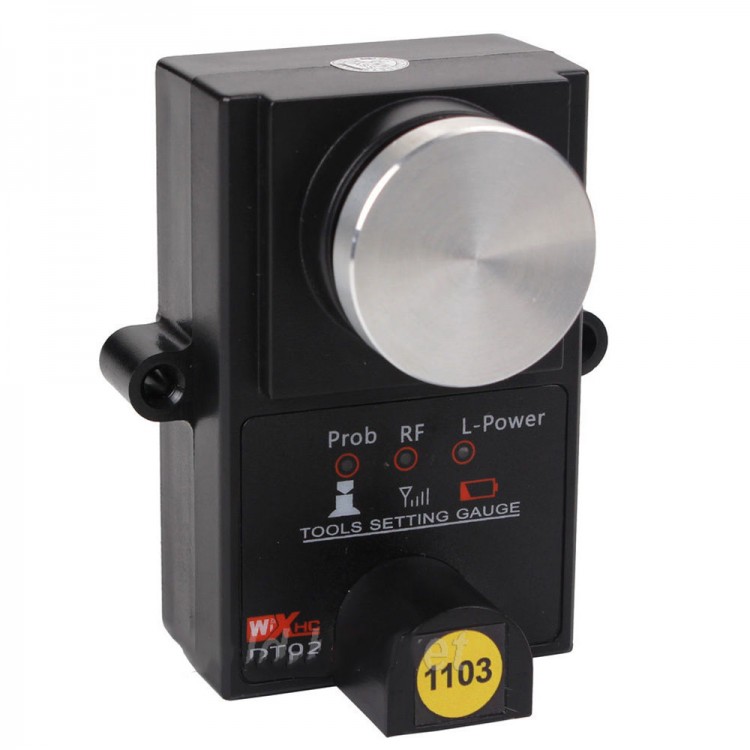

DT02 Universal CNC Center Low-power Wireless Tool Setting Gauge Presetter Device

DT02 Universal CNC Center Low-power Wireless Tool Setting Gauge Presetter Device

Description：
DT02 CNC tool setting height gauge is universal, can work with many CNC systems, such as Ncstudio, Mach2 Mach3,UcStudio,HNC, Siemens, Mitsubishi, Fanuc, LNC, SYNTEC etc
Application: Low-power wireless tool setting gaguge, applications operating in all kinds of machine cnc center

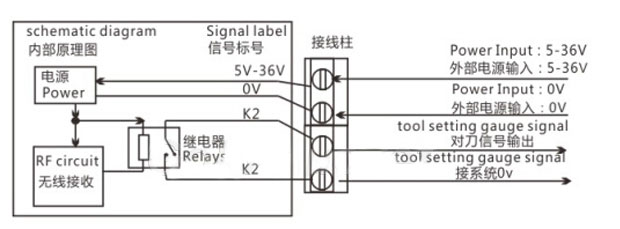

Operation: Connect the receiver to the cnc system
Note: Low power warning: please exchange the batteries when low power led light

Description:
1). K2 is the electric relay output normal open switch,which will be closed when the probe signal is triggered
2). Power on the receiver.please make sure that the input power is 5v-36v DC. The work led flash to indicate power on ok
3). Install the two AAA batteries to the terminal device:
Open the the battery door->install the 2 AAA.(Attention to The battery positive and negative direction )->close the battery door
4). To Touch the bulge of the tool setting gauge device until the probe led and the RF Led light. the probe signal will be transferred to the receiver,the receiver willtrigger the probe switch to close

Electrical specifications:
Receiver:
1). Work voltage: 5v~36 DC
2). Wireless distance: 20 meter
3). Current consumption: type 20ma
4). The relay normal open contacts output: support maximum 250V/50ma load

Tool setting gauge:
1). Probe precision: 0.01mm
2). Wireless distance: 20 meter
3). Work voltage: 2 AAA batteries,2.4V~3.6V DC
4). Current consumption: type 20uA.To work continuously more than 6 months
