DT24PW 240V Battery Capacity Tester 18650 Battery Capacity Meter Bidirectional Current Meter (300A Shunt)

DT24PW 240V Battery Capacity Tester 18650 Battery Capacity Meter Bidirectional Current Meter (300A Shunt)

Attention:
- This meter does not display the capacity of a connected battery immediately after it is connected to the battery. Before using the tester, please fully charge your battery first. Then connect the battery to the meter and press and hold the plus/minus button at the same time to reset the meter's capacity. After the reset is completed, discharge through this meter, and the accumulated measured capacity when the battery run out of power is the storage capacity of the battery.
- Professional knowledge is highly recommended.

Product Usage:
It is used to detect the capacity of various batteries, discharge and aging various power adapters, and detect the voltage, current, and power of various DC power supplies. It can visually display the measured voltage, current, power, capacity, electricity, temperature, time, resistance, over-voltage, low-voltage and over-power prompts (connecting a relay can control the power failure)

Bluetooth Online APP:
It is suitable for Android mobile phone, iPhone mobile phone, computer WIN7, WIN10 system software online. Online transmission of the parameters on the meter to the APP is convenient and intuitive to detect the parameters, and export the measurement parameters (scan the QR code on the product to download software).

Features:
- Bluetooth tester can measure battery capacity and data such as voltage, current, power of DC power supply (bidirectional current detection)
- Support the four major host computer online system APP software. Support connection to phone (for Apple and Android), desktop PC and tablet PC via Bluetooth. Support remote control via your cellphone
- Support desktop PC online, laptop online, phone APP for Apple and Android, and firmware upgrade APP for Android. Host computer OTA technology; support free firmware upgrade for life
- Wiring is simple and easy to retrofit. Whether your battery is lead-acid, ternary lithium battery, or lithium iron phosphate, or other types of batteries, when connected as shown in the figure below, as long as the battery is 8~240V, it can be used. (If you want to test batteries or power supplies less than 8V, please supply 9V to the independent power supply interface)
- Displays various measurement parameters on one screen; wide range of applications
- With over-voltage alarm, over-current alarm, and over-power alarm. Also supports real-time detection of internal and external temperature
- Support bidirectional current test, regardless of current direction after connecting to the line
- Optional shunts: 100A/200A/300A/400A/500A/600A/1000A
- 2.4" HD color screen with multiple interfaces. One screen displays a variety of parameters. Switch between different functional interfaces by short pressing the button
- When it is over-voltage, low-voltage, over-power, it will sound and display alarm. Set the value of the current power consumption safety threshold in the user setting background or the over-voltage setting interface. The device will automatically detect the parameters you set in real time. After reaching the set threshold, the device will simultaneously display the alarm content and the internal speaker of the device will beep to remind
- Battery percentage with color change display. High and low thresholds can be set freely; real-time monitoring of charge and discharge control outputs. The tester can set the battery type in the background according to the user to set the corresponding full voltage value and the minimum discharge voltage value. After the system calculates the percentage according to the threshold set by the user, the battery symbol will display the percentage color change (when it is greater than 30%, it will display green; when it is less than 30%, it will display green. When it is 30%, it is displayed in yellow; when it is less than 10%, it is displayed in red)
- Zero power consumption shutdown and low-power standby brightness adjustable mode. If a battery is not used for a long time, you can press and hold the OFF button to enter the zero-power consumption mode to ensure that the battery does not drain. You can also enter the background setting interface in the power-on state, and then adjust the standby brightness, low power consumption and the way to enter the standby time, so as to ensure that the device consumes less power from the power-on state

APP for PC and phone for Apple and Android:
①For Apple phone: Please directly search for E_test in the app store to download and install, then click the Bluetooth icon on the top of the software to enter and select DT24PW-BLE to connect, and then the remote wireless remote control setting and measurement functions of the mobile phone can be realized. Users can check the discharge status at any time on the mobile phone, various data are clearly visible, for example, the discharge voltage, current and power curves.
② For Android phone: Scan the QR code to download the corresponding APP software. After the installation is complete, open the software and click the Bluetooth icon to enter directly and select DT24PW-BLE to use it online.
③ For PC: Add the Bluetooth device as DT24PW-BLE serial device, scan the QR code to download the corresponding APP software and save it. There is no need to install and open the software directly and select the newly added Bluetooth serial port model to be successfully used online.
④ The host computer OTA firmware can be upgraded free of charge for life. Our engineers will continue to update the product firmware and release new firmware according to user needs to obtain better optimization and more functions. Users buy once, and upgrade for life for free!! (Search: DT24PW_Upgrade upgrade).

APP Quick Pairing:
- Step 1: When the USB electrical energy is on and the bluetooth light is flashing, open the APP that has been downloaded and installed on your mobile phone and turn on the bluetooth.
- Step 2: Click the Bluetooth icon in the upper left corner of the APP, the phone will pop up a menu to select the Bluetooth model of the tester, DT24PW-BLE, and return to the main interface of the APP.
- Step 3: During the measurement, the upper right corner displays the current online model. The bluetooth icon in the upper left corner turns blue, indicating that the measurement is in online communication.

Mobile APP Interface Function Introduction:
1. Phone APP for Apple: Please directly search for E_TEST in the app store to download and install, and then click the Bluetooth APP icon. After opening the software, click the Bluetooth icon at the top of the software to enter and select DT24PW-BLE to connect. In this way, the remote control setting and measurement functions of the mobile phone can be realized. Through the mobile phone, the user can check the discharge state, the voltage, current and power curve of the discharge at any time (no need for separate Bluetooth pairing, the software Bluetooth icon can directly select DT24PW)
2. Phone APP for Android: Scan the QR code on the back of the main unit to download the corresponding APP software. After the installation is complete, open the software and click the Bluetooth icon to enter directly and select DL24PW-BLE to use it online successfully.
3. The computer software is only for systems above WIN7! Software manual download link: http://hannqi.com/download

Technical Parameters:
- Measuring voltage range: 8~240V/0~240V (9V independent power supply)
- Measuring current range: 0.1~100A/0.1~200A/0.2~300A/0.3~400A/0.4~500A/0.5~600A/1~1000A (depend on the shunt you choose)
- Measuring capacity range: 0~99999AH
- Panel Size: 85.7 x 63mm/3.4 x 2.5" (LxW)
- Panel Mount Dimensions: 75.8 x 52.6mm/3 x 2.1" (LxW)
- External Shunt Plate Dimensions: 58.5 x 54mm/2.3 x 2.1" (LxW)

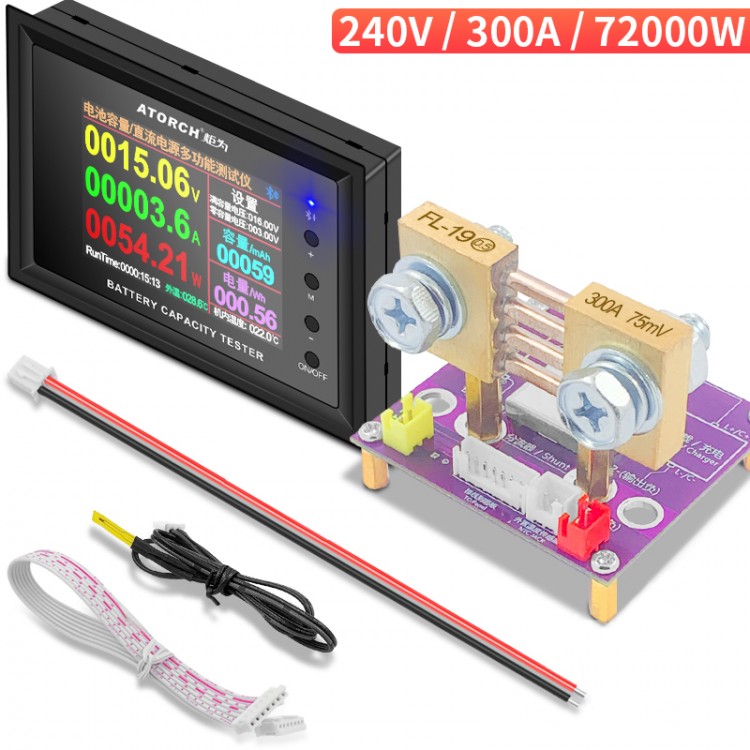

Package Included:
- 1 x DT24PW Main Unit
- 1 x Sampling Shunt
- 1 x 12V Independent Power Cable
- 1 x Temperature Probe
- 1 x 200MM/7.9" Flexible Flat Cable

Note:
- Battery and relay are not included.
- When the test is lower than 8V, it needs to connect the independent power cable.
