| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $360.75 | $353.39 | $342.34 | $327.62 | Contact US |

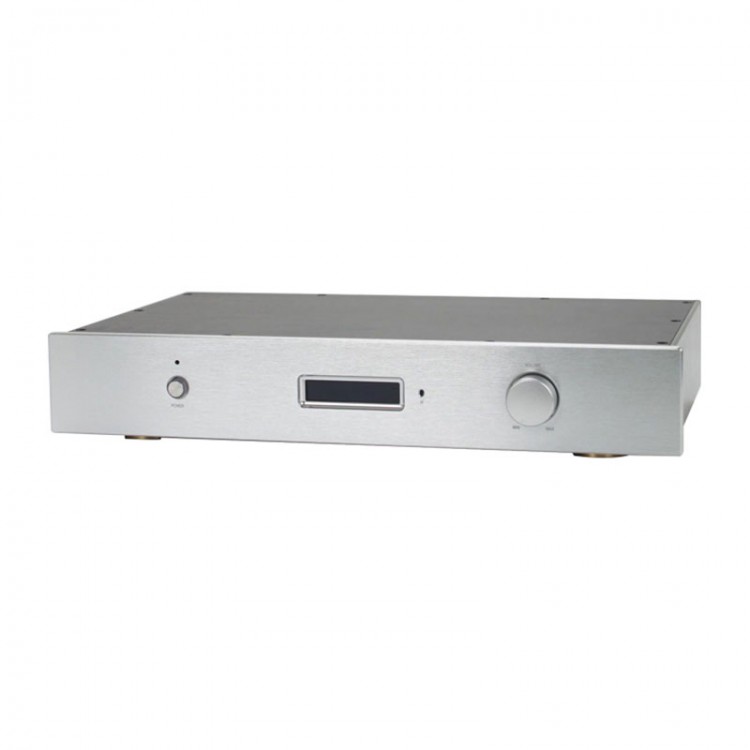

Dual AK4497EQ CSR8675 DAC Bluetooth 5.0 Decoder Support For Optical Coaxial USB Inputs
Features:
- AK4118, the latest coaxial optical data demodulation chip, outperforms DIR9001CS8416 WM8805 and other chips in price and performance. It enables clean, natural and delicate sound.
- As a decoder chip, AK4495S supports 32BIT 768K. The left and right channels of the analog part of the chip and the reference voltage are independently powered, which effectively reduces crosstalk.
- AK4497 adopts premium filter. THD + N: -115dB, DR, S / N: 127dB (130dB in parallel). PCM sampling rate supports up to 768K. DSD sampling rate supports up to 22.4MHz. This filter greatly reduces the impact of noise shaping, achieves a very low distortion music playing experience, and has excellent sound performance.
- Support HD playing formats DSD512 and PCM768K.
- Support DSD hard decoding for Android, computers and other USB devices.
- Bluetooth 5.0 enables easy connection to various mobile equipment.
- BT5.0 chip ensures high-speed transmission, stable signal, low latency, consuming less power.
- PCM sampling rate supports up to 32bit / 768KHz. DSD supports DSD512. Support for Native DSD driver.
Technical Parameters:
- SNR: DNR130dB
- Dynamic Range: ≥115dB. Distortion Rate: 0.0005%
- Frequency Response: 20Hz-20KHz ±0.08dB
- Input Interfaces:
Coaxial (COAX): Support up to PCM192K 24Bit
Optical (OPT): Support up to PCM192K 24Bit
USB: Support up to PCM384K 32Bit, DSD256
Bluetooth: Support up to PCM96K
- USB Input:
Support for WIN XP-WIN 10 X86 or X64 (Driver needed)
Support for Linux Mac OS (Above 10.6)
Support for Android original platforms (OTG cable needed) and Hiby Music player
Package Included:
- 1 x Set of CSR8675 DAC
Note:
- USB interface for XMOS-U8, XMOS-XU208, Amanero (sampling rate not displayed) are optional. Default version is designed with USB interface for XMOS-XU208. Optional Color: Black, Silver. Please choose the type and the color you want while purchasing. Thank you!
