Dual Channel Oscilloscope Digital Storage Oscilloscope 100MHz Bandwidth 1GS Sample Rate

Dual Channel Oscilloscope Digital Storage Oscilloscope 100MHz Bandwidth 1GS Sample Rate

Features:
- Intelligent anti-burn, 1X Can withstand up to 400V withstand voltage
- 100MHz analog bandwidth @ 100GSa/s sampling rate (1X = 5MHz, 10X = 100MHz)
- Fully fit 7 inch 800 * 480 resolution color TFT LCD display with bright colors and high contrast
- Capacitive touch screen, the same as the touch mode of modern mobile ipad, is not a resistive touch screen with ancient nail operation
- High measurement voltage range, 1X can measure 0 ~ 40 V, 10X can measure 0 ~ 400V，100X can measure 0 ~ 4000V
- Up to 12 parameters measurement: VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty+, Duty-, Time+, Time-, Period

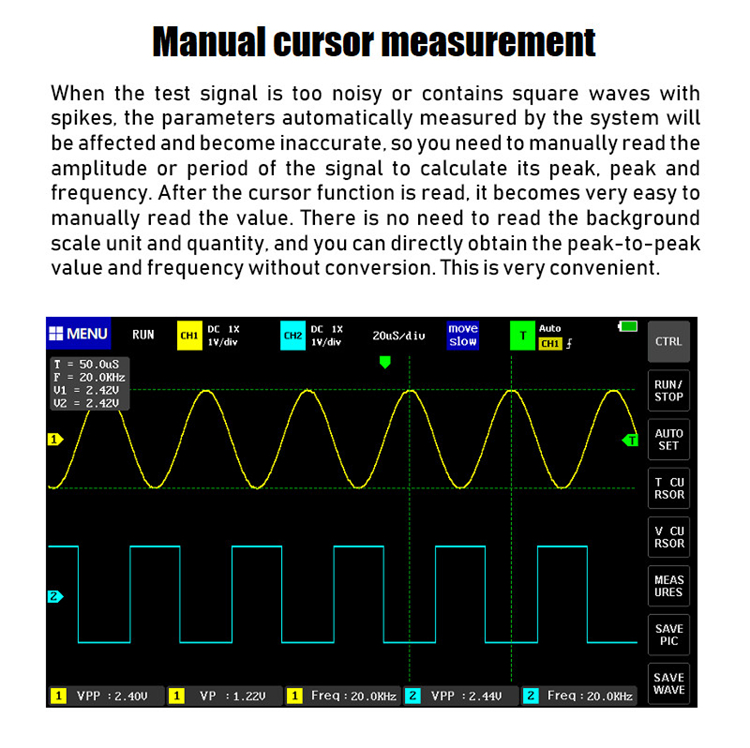

- Cursor measurement function, it is convenient to manually measure the period and frequency and voltage

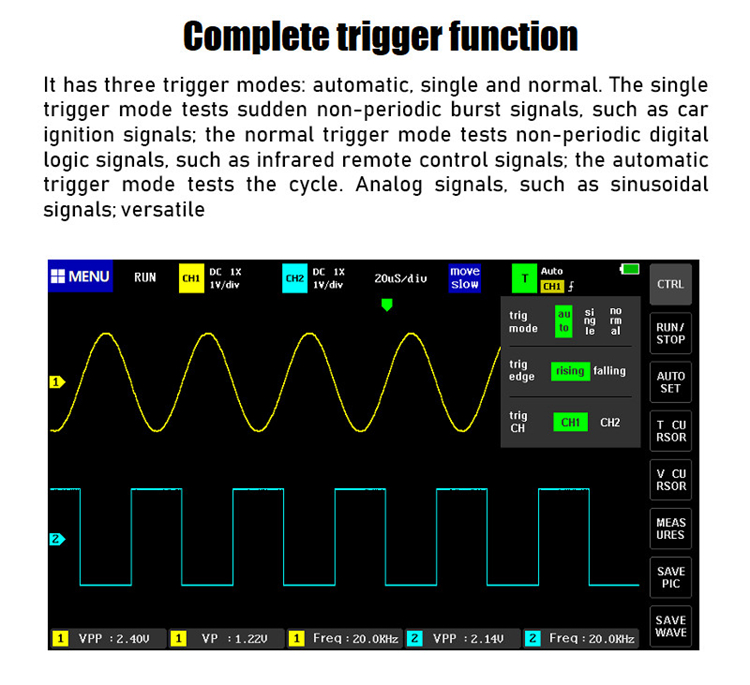

- Complete triggering function (single, normal, automatic)
- At any time, the waveform display (pause function) is frozen
- Equipped with high efficiency One-button AUTO
- One-button waveform storage and screenshot
- Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data

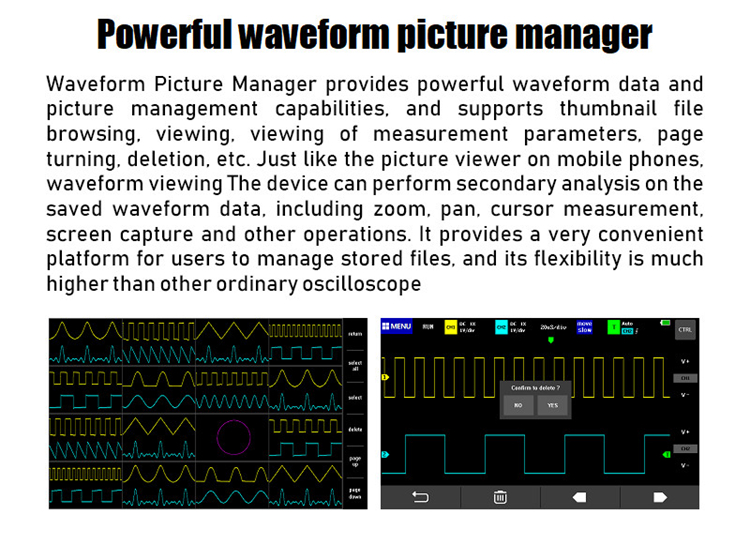

- Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc.

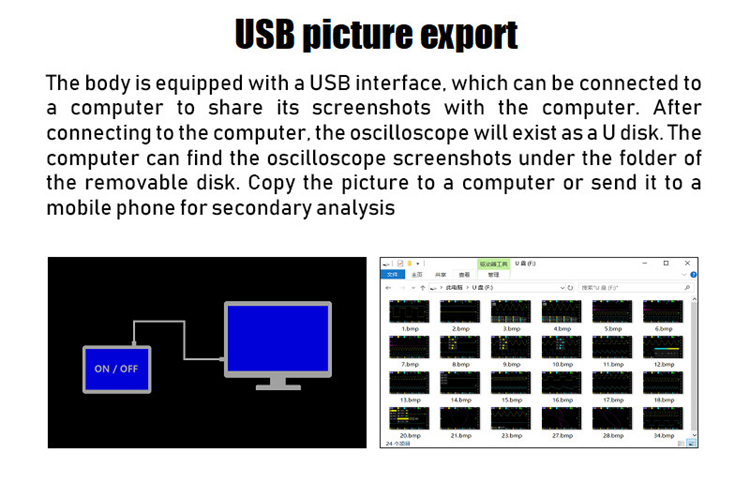

- Equipped with a USB interface, which can be connected to a computer to share its screenshots with the computer, which is convenient for secondary analysis

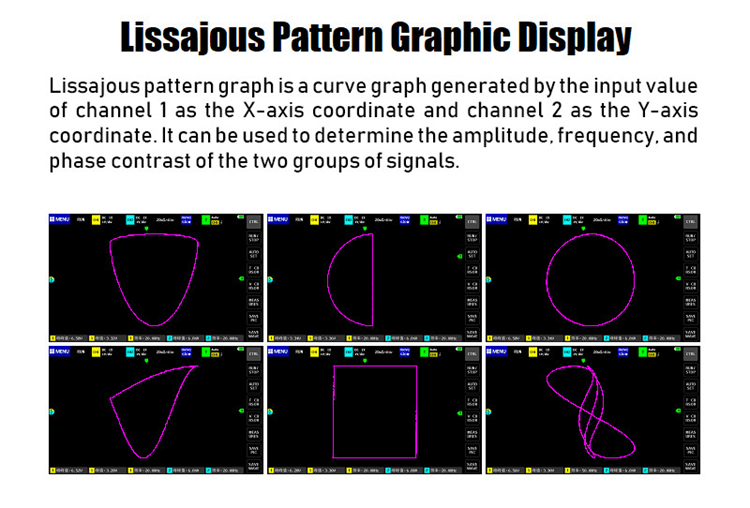

- Lissajous figures graphic display function can be used to determine the amplitude, frequency, and phase contrast of two groups of signals
- FFT display function, can analyze the spectral characteristics of the signal
- Rechargeable type, Fully charged for 4 hours of continuous use at the highest screen brightness
- Memory compression technology, waveform refresh screen does not flicker
- Screen brightness adjustment
- Background grid brightness adjustment
- Ultra thin, easy to carry

Specifications:
- Analog band width: 100MHz * 2
- Number of channels: 2 channels
- Maximum real time sampling rate: 1GSa/s
- Vertical sensitivity: 50 mV/div ~ 500 V/div
- Horizontal time base range: 50S/div ~ 10nS/div
- Maximum test voltage: 40 V (1X probe), 400 V (10X probe)
- Storage depth: 240Kbit
- Input resistance: 1M
- ADC precision: 8bits
- Coupling mode: AC/DC
- Trigger mode: Single, Normal, Auto
- Trigger edge: Rising edge/Falling edge
- External trigger voltage: 0-40 V
- Display: 7 inch - 800*480
- Operating: Capacitive touch screen + gesture
- Extension ports: USB picture export
- Power supply: 6000mAh
- Size: 184 x 124 x 50mm
- Total weight: 650g

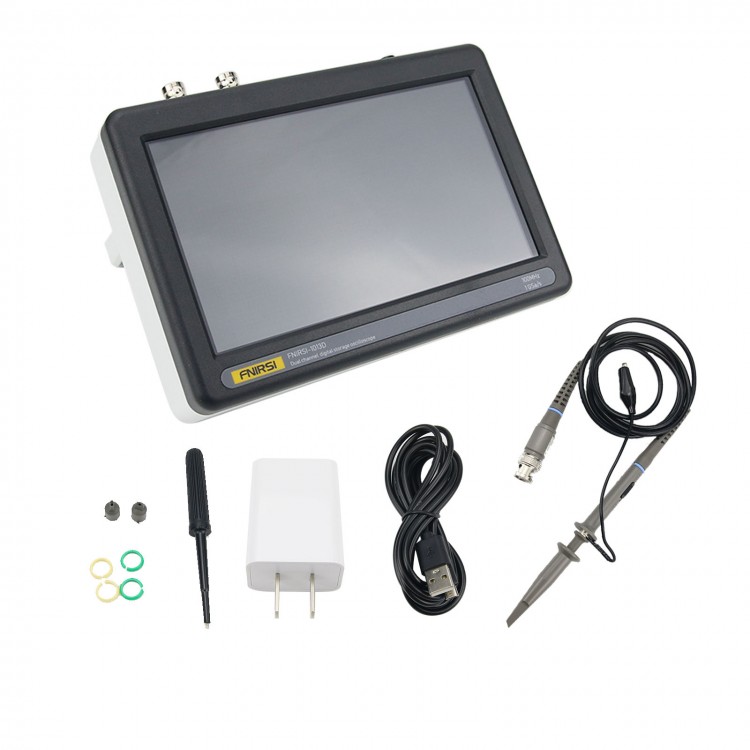

Package Included:
- 1 x Oscilloscope Host
- 2 x Matching 100MHz Probes (1X and 10X)
- 1 x 5V 2A Charger Head
- 1 x USB Data Cable
- 1 x User Manual
