Dual Laser 3D Scanner JT-scan 2MP CMOS Image Sensor USB Interface for 3D Printer

Dual Laser 3D Scanner JT-scan 2MP CMOS Image Sensor USB Interface for 3D Printer

Description:

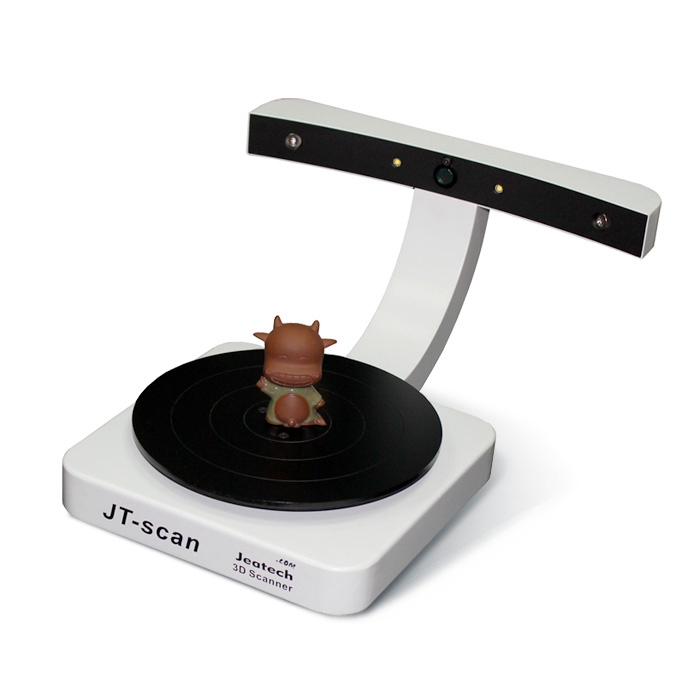

The JT-scan Desktop 3D Scanner creates a digital 3D model of a physical object by taking a rapid sequence of pictures as the object rotates on the Sun-scan turntable. Here is how it happens:
1. JT-scan two laser scanner located in the left, right angle to create a laser ray, camera and extract the outline of objects.
2. JT-scan scanner software receives the laser ray provide photos, these photos will create a combination of a point cloud.
3. After the scan is complete, a check 3D grid multi generation Sun-scan scanners, you can modify the 3D modeling software.

Features:
- Scanning Range: 200mm diameter, 250mm height
- Dual laser scanning to compensate the dead corner;
- High-density scan, a single laser 800 outline, dual laser 1600 contour;
- Dual bright LED lighting, textures and more realistic;
- Multi-angle stitching, make up less than scanning the broken surface;
- Measurement function, facilitate the analysis of measurement.

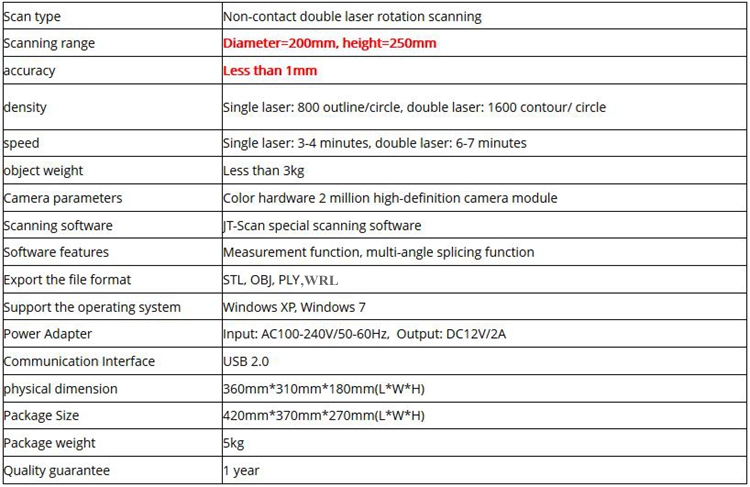

Specifications:

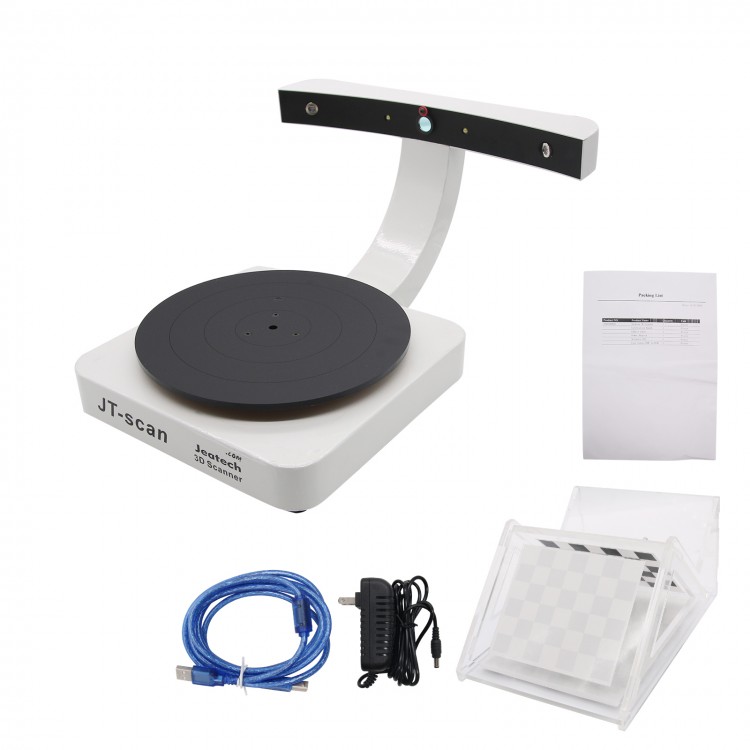

Package Included:
- 1 x 3D Scanner
- 1 x Calibration Board
- 1 x USB 2.0 Cable
- 1 x Power Adapter
- 1 x User Manual
