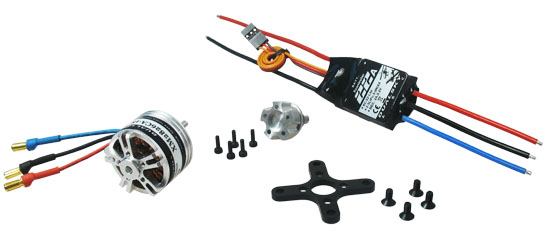

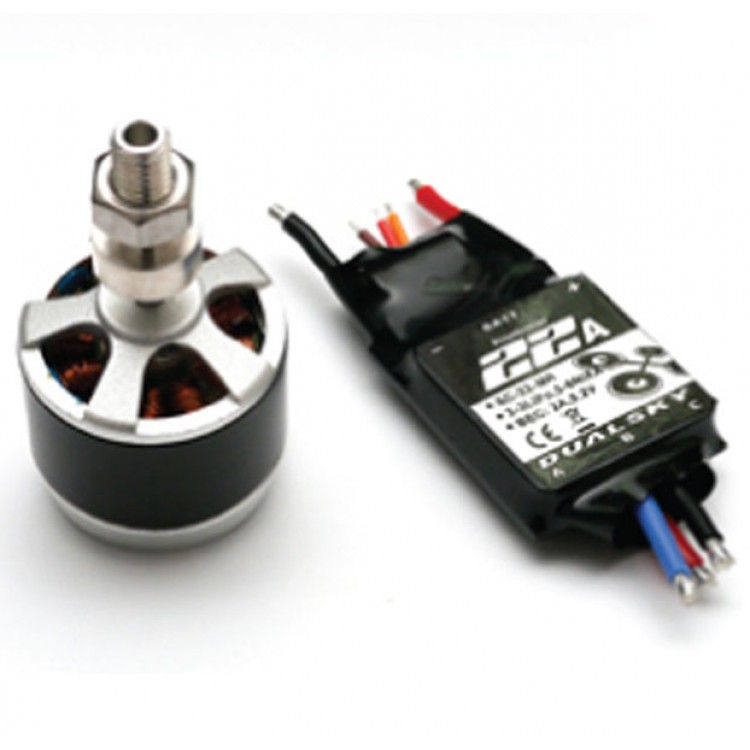

DUALSKY XM2830CA-Hornet 830RPM/V Motor + XC-22-Lite Thro Optimized for Hornet 460

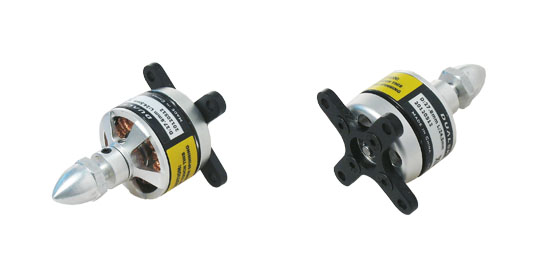

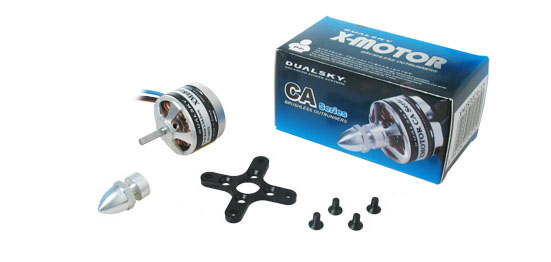

XM2830CA Description:
- Xmotor CA series brushless outrunners
- Optimized for Hornet 460
XM2830CA Specification:
- RPM/V (KV): 830
- Stator Diameter: 22
- Magnet length: 12
- Shaft diameter: 3.2
- Mounting holes pitch: 16/19
- Weight (g): 55
- Resistance (Ri)(mOhm): 145
- Idle Current (Io) @10V (A): 0.57
- No.of Cells (LiPo): 2..4
- Max. Efficiency Current[A]: 12
- Max. Burst Current (15s)[A]: 15
- Max. Power (15s): 200W
- Input Connectors: DB3
- Recommended ESC: XC1812BA
- Prop. Range: 9x4.7…10x5

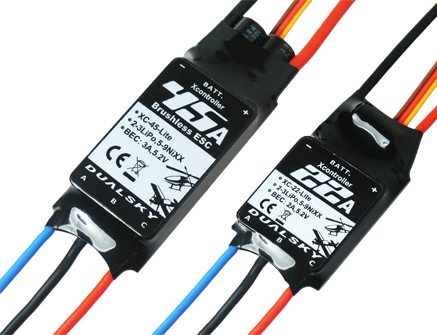

XC-22-Lite Thro Feature:
XC-22-Lite Thro Description:
- XC-22-Lite,ESC 22A,for airplane and Heli.
XC-22-Lite Thro Specification:
- Dimensions: 47x 26x 7mm(L x W x D)
- Weight: 22g(with wires)
- Number of Cell: NiXX 5-9, 6-10.8V / LiPo 2-3, 7.4-11.1V
- Resistance(Ri)(Ohm): 0.0082
- Max Cont. Current & Max Cont.Output: 22A, 244W
- Max Burst Current & Max Burst Output: 30A, 333W
- BEC / Dissipative Power: 5.2V/2A (Linear)
- Programmable: Throttle + ProgCARD V2
- Signal Wire: 180MM JR
XC-22-Lite Thro Applications:
- 450 Class Sports
- 350g 3D, 600g Sports
