| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $54.95 | $53.83 | $52.15 | $49.90 | Contact US |
SimpleFOC Shield V2.0.4 BLDC Motor Driver Board Compatible with Ar-duino UNO & for Gimbal Motors
$29.43
SimpleFOC Shield V1.3.3 Brushless DC Motor Driver Board for Low-power FOC Applications up to 5Amps
$24.18
FLYCOLOR Raptor 5th Generation G071 60A 3-6S 4-in-1 ESC 128K Drone ESC Suitable for FPV Drones
$76.28

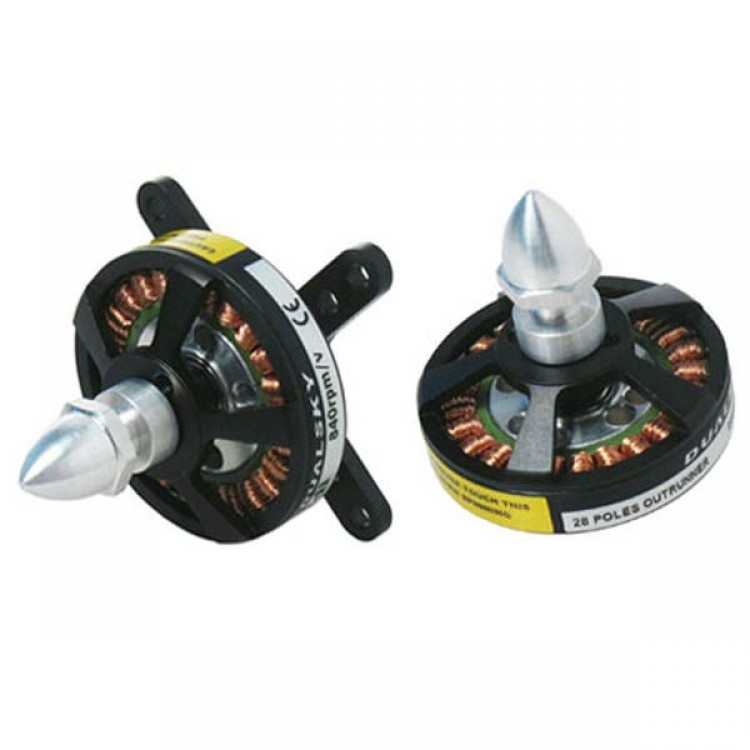

DUALSKY XM4010TE-7 620KV Outrunner Brushless Disk Type Motor for Multi-rotor
Specfications:
- Model: XM4010TE-7
- KV: 620RPM/V
- Weight: 78g
- Diameter: 40mm
- Length: 25mm
- Diameter of Shaft: 3.175mm
- Mounting holes pitch: 16/19mm
- Slots,Poles: 24, 28
- Idle Current(Io) @10V: 1.1A
- Resistance(Ri): 86mOhm
- Cruising power[8 mins]: 186.13W
- Bursts current[15s]: 22.87A
- Peak power[15s]: 338.41W
- Recommended ESC: XC2512BA
- Setup 1 (No. of Cell, Prop.): 4S, 12x5
- Setup 2 (No. of Cell, Prop.): 5S, 9x5
- Max. weight of 4-rotor copter: 1.86kg
- Max. weight of 3D models: 0.62kg
- Memo: 2KG 4-rotor copters, 480 class airplanes
