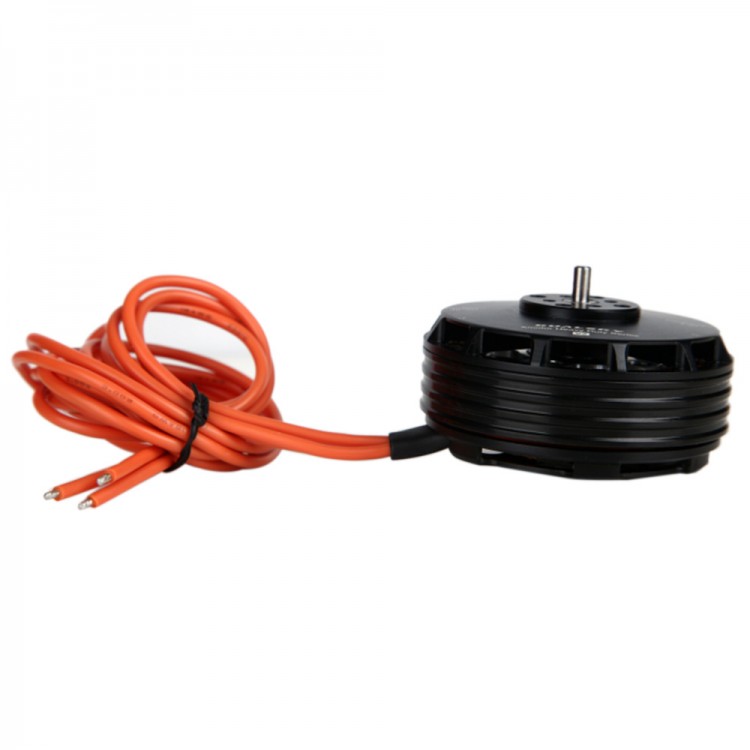

DualSky XM7015HD-16 155KV Heavy-Duty Four-Rotor Brushless Disc Motor V2.0 10-12S for FPV Multicopter UAV
Features:
- With propeller adapters
- Centrifugal fan
- Dynamic balanced rotor
- Heavy duty design
- Water & dust proof IP34
Specification:
- Model: XM7015HD-16
- RPM/V (KV): 155 High Voltage
- Weight w/o wires(g) : 280
- Diameter(mm): 69
- Length(mm): 39.5
- Diameter of Shaft(mm): IN: 8.0, Out:4.0
- Propeller mounting holes [Pitch, Size] (mm): (A)15mm, 4-M4; (B)20mm, 4-M4
- Motor mounting holes [Pitch, Size] (mm): 30mm, 4-M4
- Slots,Poles: 24, 28
- Idle Current(Io) @10V(A): 0.5
- Resistance(Ri)(mOhm): 140
- Nominal Voltage(V): 30-51V, 10-12S Lipo
- Cruising power(W)[30 mins]: 770
- Bursts current(A)[30s]: 32
- Peak power(W)[30s]: 1400
- Input Wire: 16AWG, 800mm
- Recommended ESC: PCU 80HV
- Propeller: MRP 18"-20"
Package included:
- 1* DualSky XM7015HD-16 155KV brushless disc motor
