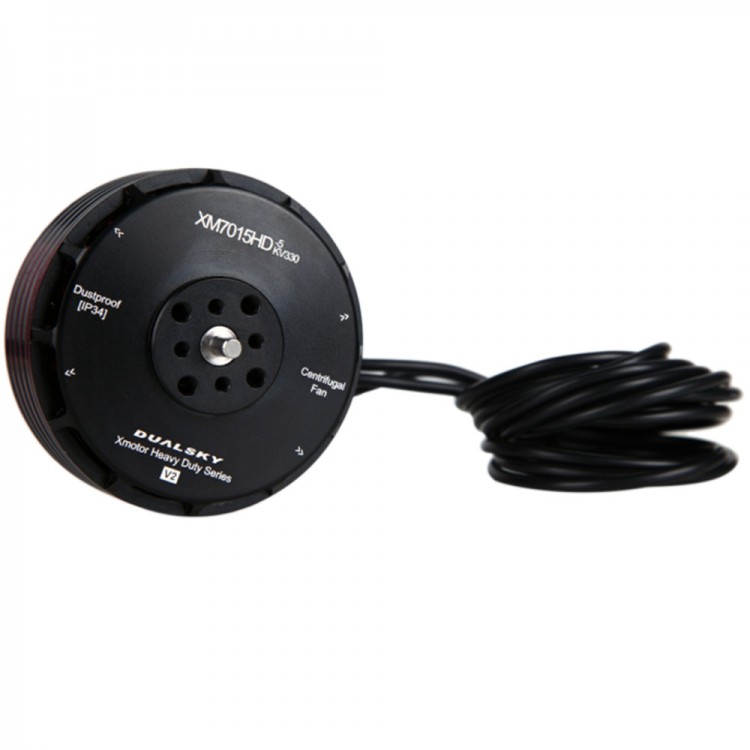

DualSky XM7015HD-5 330KV Heavy-Duty Four-Rotor Brushless Disc Motor V2.0 for FPV Multicopter UAV
Features:
- With propeller adapters
- Centrifugal fan
- Dynamic balanced rotor
- Heavy duty design
- Water & dust proof IP34

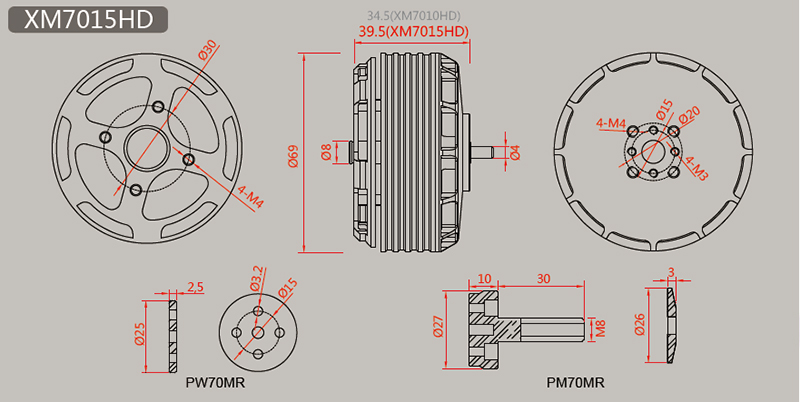

Specification:
- Model: XM7015HD-5
- RPM/V (KV): 330 High Voltage
- Weight w/o wires(g) : 350
- Diameter(mm): 69
- Length(mm): 39.5
- Diameter of Shaft(mm): IN: 8.0, Out:4.0
- Propeller mounting holes [Pitch, Size] (mm): (A)15mm, 4-M4; (B)20mm, 4-M4
- Motor mounting holes [Pitch, Size] (mm): 30mm, 4-M4
- Slots,Poles: 24, 28
- Idle Current(Io) @10V(A): 1.8
- Resistance(Ri)(mOhm): 42
- Nominal Voltage(V): 22.2V, 6S Lipo
- Cruising power(W)[30 mins]: 810
- Bursts current(A)[30s]: 67
- Peak power(W)[30s]: 4180
- Input Wire: 16AWG, 800mm
- Recommended ESC: PCU 60HV
- Propeller: MRP 24"
Package included:
- 1* DualSky XM7015HD-5 330KV brushless disc motor
