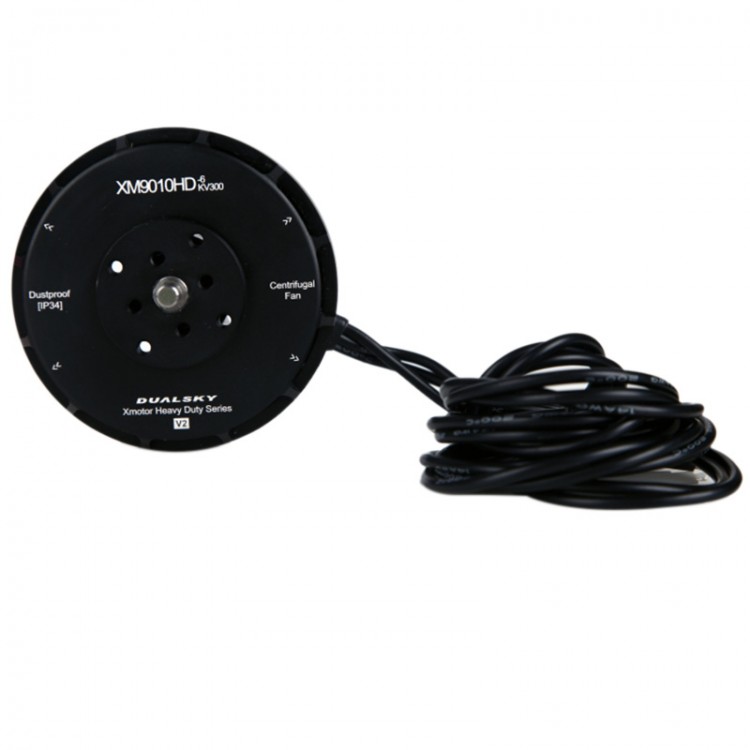

DualSky XM9010HD-6 300KV Heavy-Duty Four-Rotor Brushless Disc Motor V2.0 for FPV Multicopter UAV
Features:
- With propeller adapters
- Centrifugal fan
- Dynamic balanced rotor
- Heavy duty design
- Water & dust proof IP34
Specification:
- Model: XM9010HD-6
- RPM/V (KV): 300 High Voltage
- Weight w/o wires(g) : 525

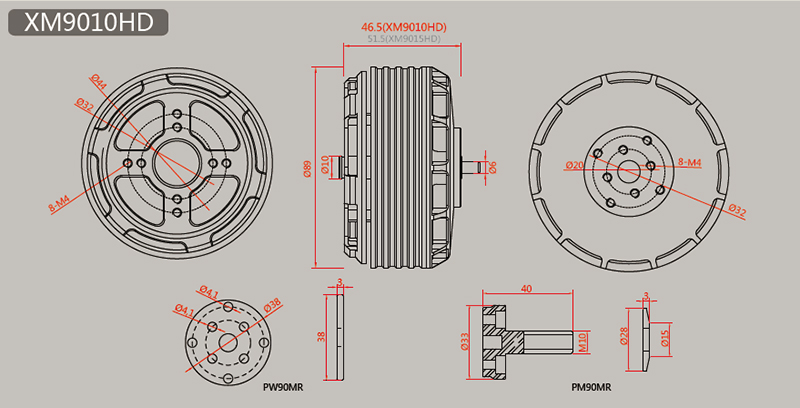

- Diameter(mm): 89
- Length(mm): 45.5
- Diameter of Shaft(mm): IN:10.0, Out:6.0
- Propeller mounting holes [Pitch, Size] (mm): (A)20mm, 4-M4; (B)32mm, 4-M4
- Motor mounting holes [Pitch, Size] (mm): (A)32mm, 4-M4, (B)44mm, 4-M4
- Slots,Poles: 24, 28
- Idle Current(Io) @10V(A): 2.5
- Resistance(Ri)(mOhm): 32
- Nominal Voltage(V): 22.2V, 6S Lipo
- Cruising power(W)[30 mins]: 1150
- Bursts current(A)[30s]: 94
- Peak power(W)[30s]: 2100
- Input Wire: 14AWG, 1000mm
- Recommended ESC: PCU 80HV
- Propeller: MRP 24"
Package included:
- 1* DualSky XM9010HD-6 300KV brushless disc motor
