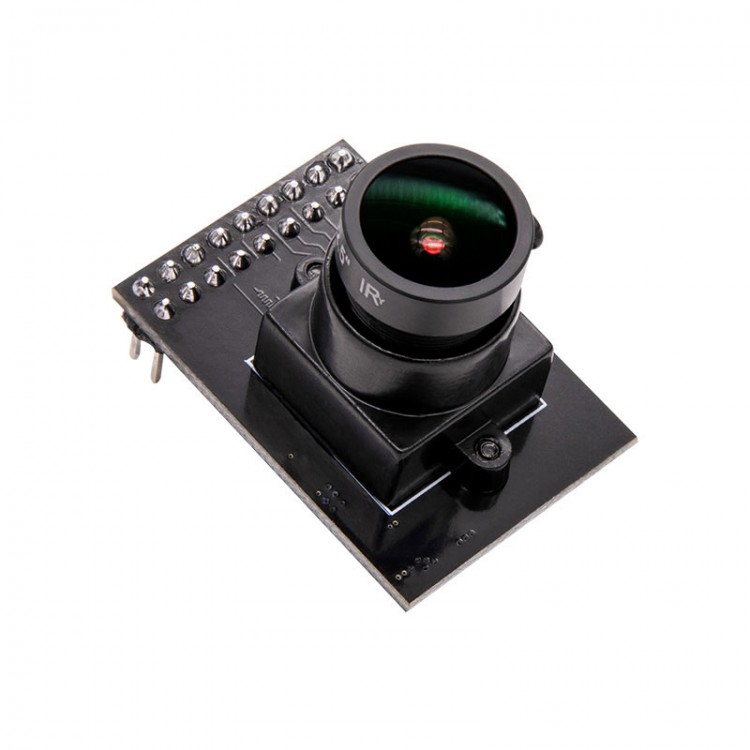

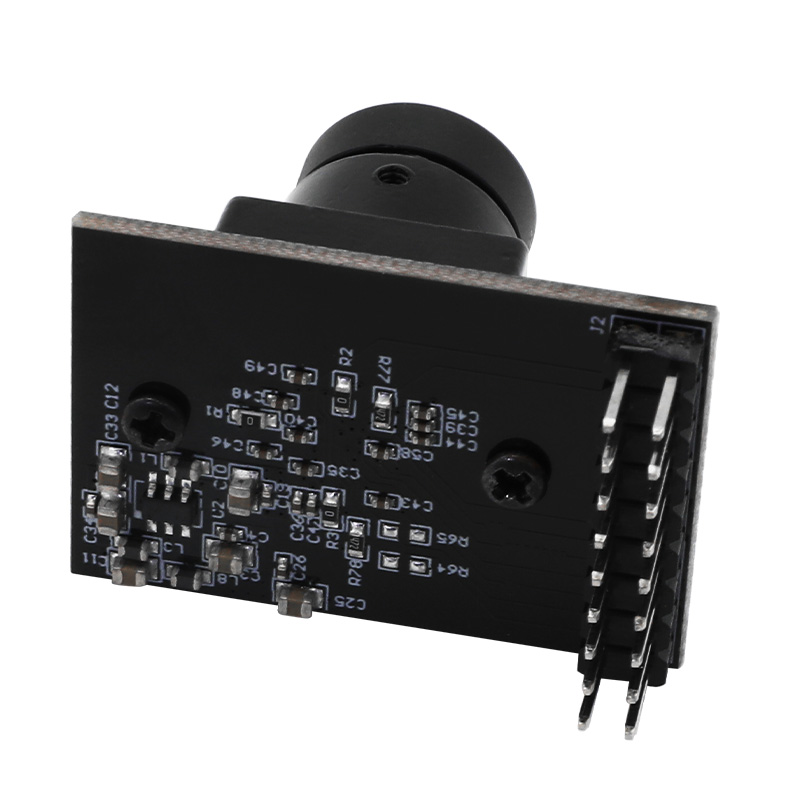

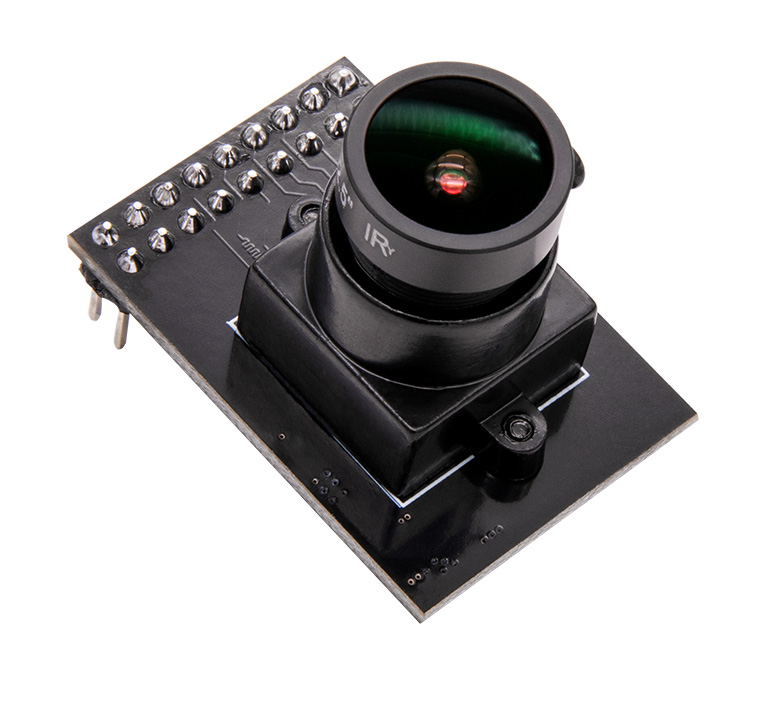

DVP OV5640 Camera Module 5MP Monocular Camera Module with FPGA Development Board Module AN5640

Description:
- CMOS chip image sensor OV5640 for Omnivision
- Support automatic focusing
- Realize image transmission through DVP interface and FPGA connection

Specifications:

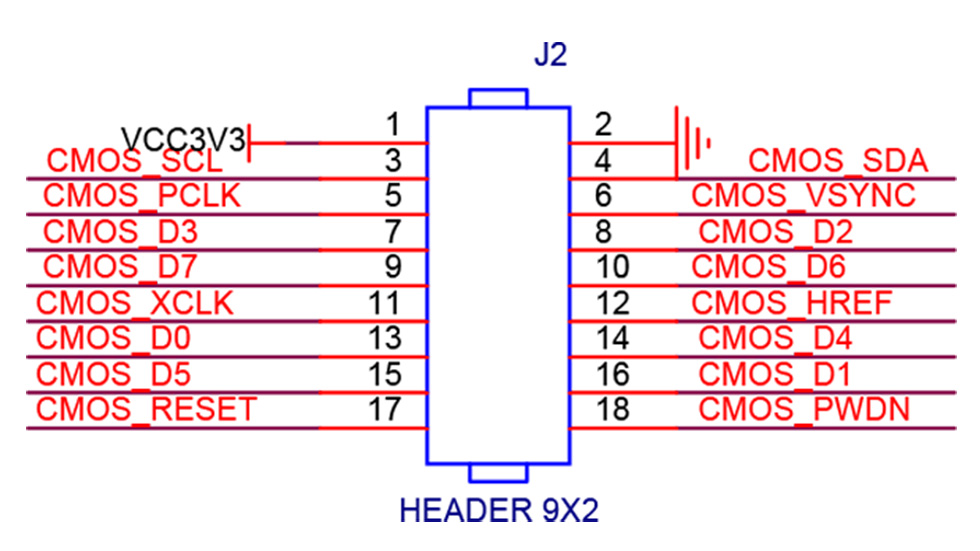

- Interface: DVP Interface
- Pixel: Hardware pixels 5 million
- Photosensitive chip: OV5640
- Photosensitive size: 1/4

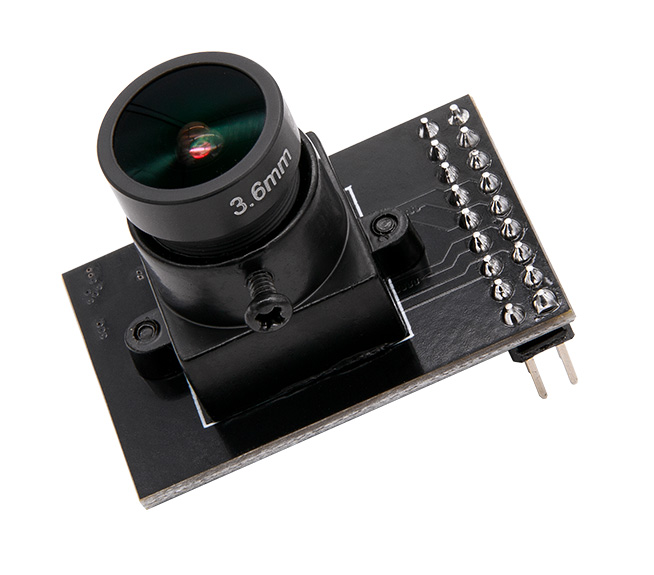

- Lens parameters: 5MP/M12 interface, focal length 3.6mm, and monitoring angle 80-96 degrees
- Module content: Including OV5640 power supply circuit and flash drive circuit
- Function support: Automatic focusing, automatic exposure control (AEC), automatic white balance (AWB)
- Image format: RAW RGB, RGB565/555/444, CCIR656, YUV422/420, YCbCr422 and compression
- Collect picture: QSXGA (2592x1944), 1080p, 1280x960, VGA (640x480) and QVGA (320x240)
- Working temperature: 0~50℃

Package Included:
- 1 x Camera Module
