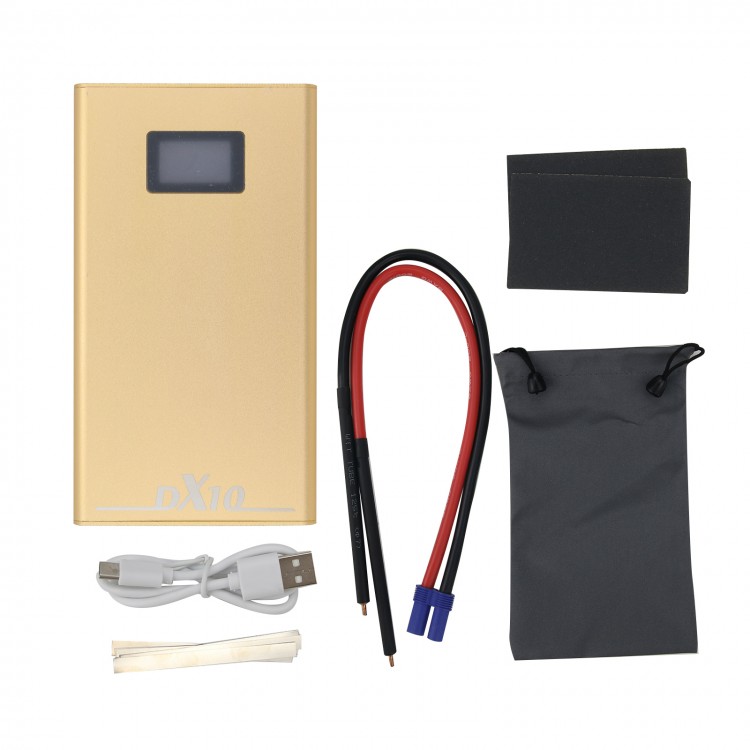

Description:
- The 10600mah version uses 2 pieces of 5300mah batteries, which can be charged more than 1000 times, the internal resistance of the battery pack is 0.5 milliohm, and the nickel plating can be less than 0.25mm, and the weight is only 430g
Features:
1: Built-in 6*300A high-power MOS tube, with large margin and low failure rate
2: Spot welding pen adopts ec5 plug, 30cm 8awg wire, 6mm diameter solid aluminum oxide copper rod length 10cm, the whole welding is non-pressing, and the internal resistance is lower than other hand-held spot welding machine pens on the market, so the support current is larger. Spot welding with thick nickel bars is stronger
3: 20-speed delay time adjustment, 0.5s-2.5s; 20-speed power adjustment, with memory, automatic shutdown in 5 minutes.
We have already equipped the type-c charging cable, please prepare an ordinary 5v2a charger for charging by yourself, you can check the charging current on the screen
Button function
Boot:
In the shutdown state, short press 0N/0FF (red button) to turn on and use the spot welder function
Shut down:
In the power-on state, press and hold the 0N/0FF (red button) to turn off the machine, and the machine also has the automatic shutdown function of 5 minutes without operation
Adjust the delay:
- In the power-on state, press MENU (red button) until the delay number is highlighted, and then press V+/V- (black button) to adjust the delay time. The range is 0.5 seconds-2.5 seconds. This time determines the contact of the soldering pen to be welded Automatic spot welding of metal starts to delay for a period of time
Adjust spot welding power:
In the power-on state, press MENU (red button) until the power number is highlighted, and then press V+/V- (black button) to adjust the power range. The range is 1-20. The larger the number, the higher the spot welding power. Large, please adjust appropriately
