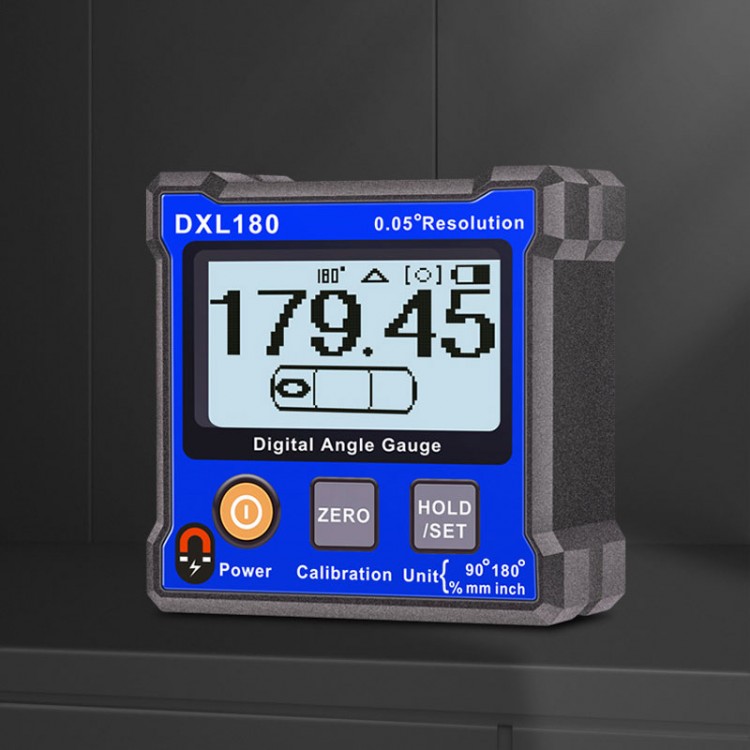

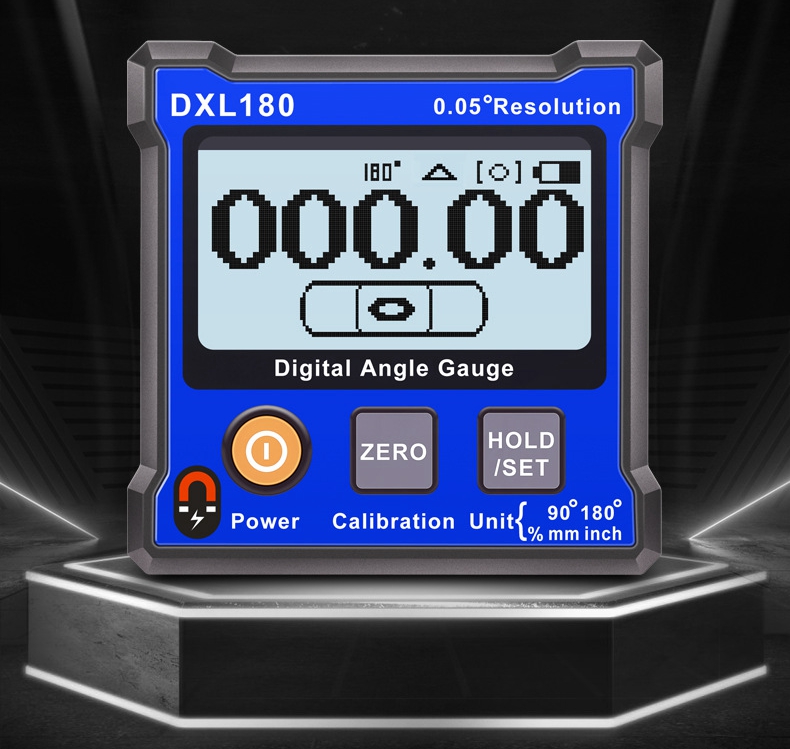

DXL180 Digital Angle Gauge Support Angle/Slope/Inches/MM/M Reading 0.05° Resolution 128x64 LCD Screen
Description:

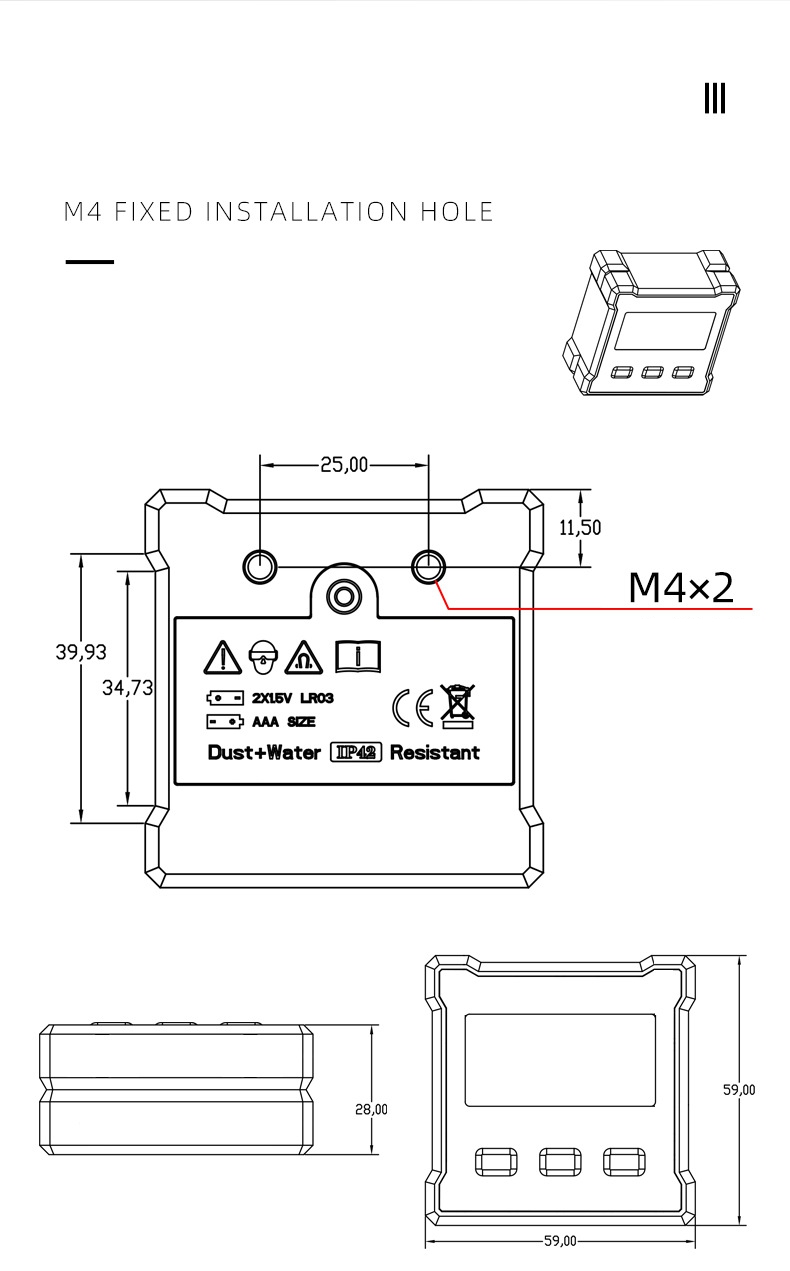

- The DXL180 is a digital angle gauge that can display multiple units, supporting readings in angle, slope, inches, and mm/M units. The measurement range is 2x 0-180° and 4x 0-90°, and the instrument has four strong magnets on the bottom measurement reference plane. The V-shaped groove design makes it easy to place circular pipes for testing. Supports IP42 dustproof and waterproof, with M4 screw holes reserved on the back for easy installation and fixation.
- DXL180 is widely used in woodworking cutting, mechanical manufacturing,decoration design, photography hobbies, product testing and other applications.

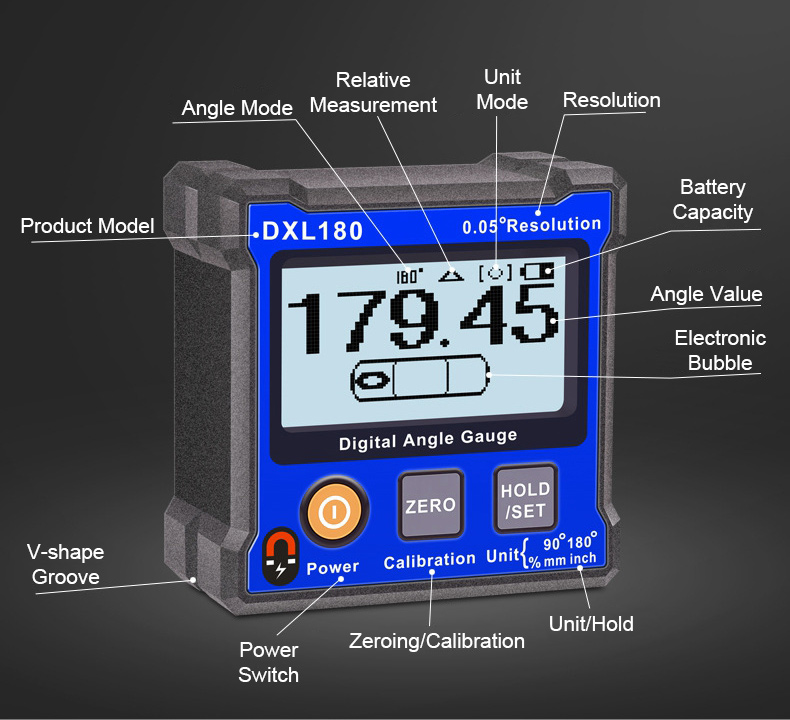

Features:
- High precision ±0.1°, high resolution 0.05°.
- 128x64 dot matrix backlight LCD display screen, supporting 5-digits display.
- Dual Measurement range: 0-90°and 0-180°.

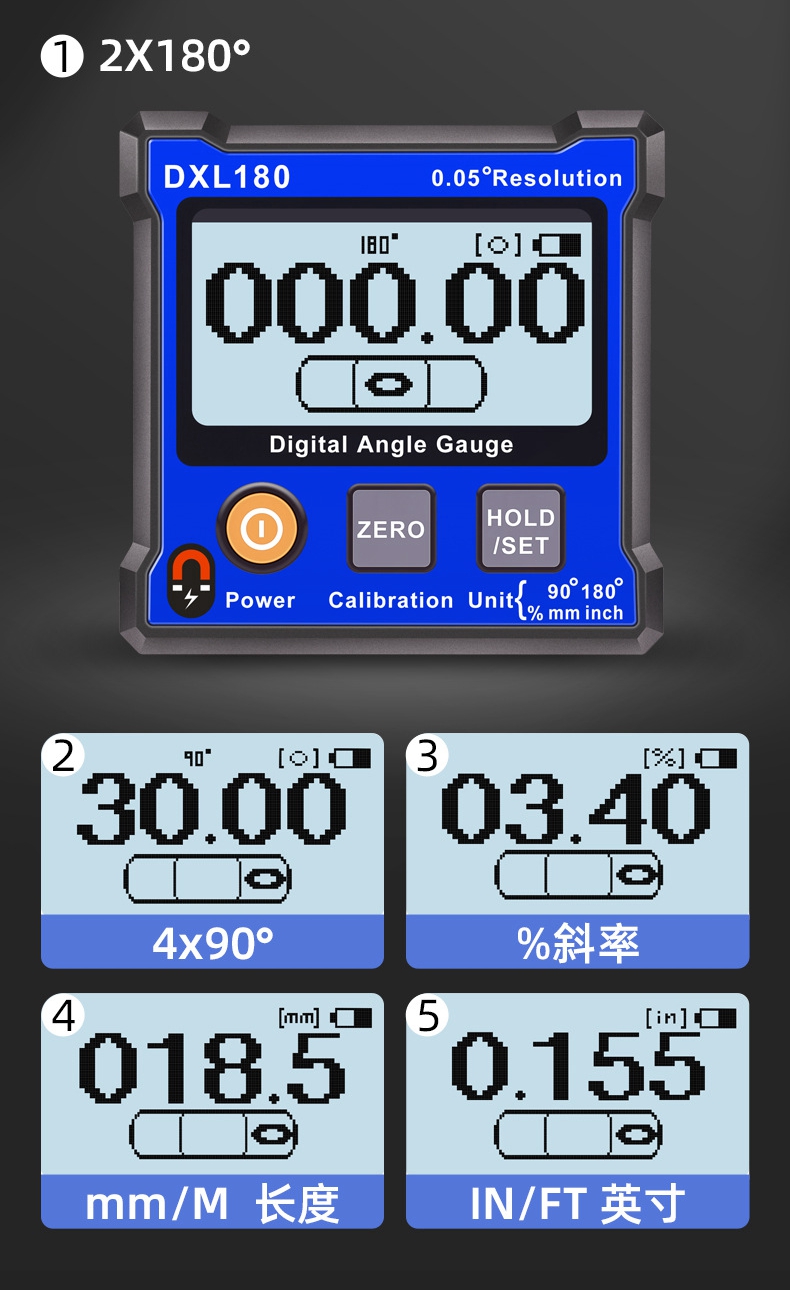

- Angle, slope, inches, and mm/M units can be switched to display with just one click.

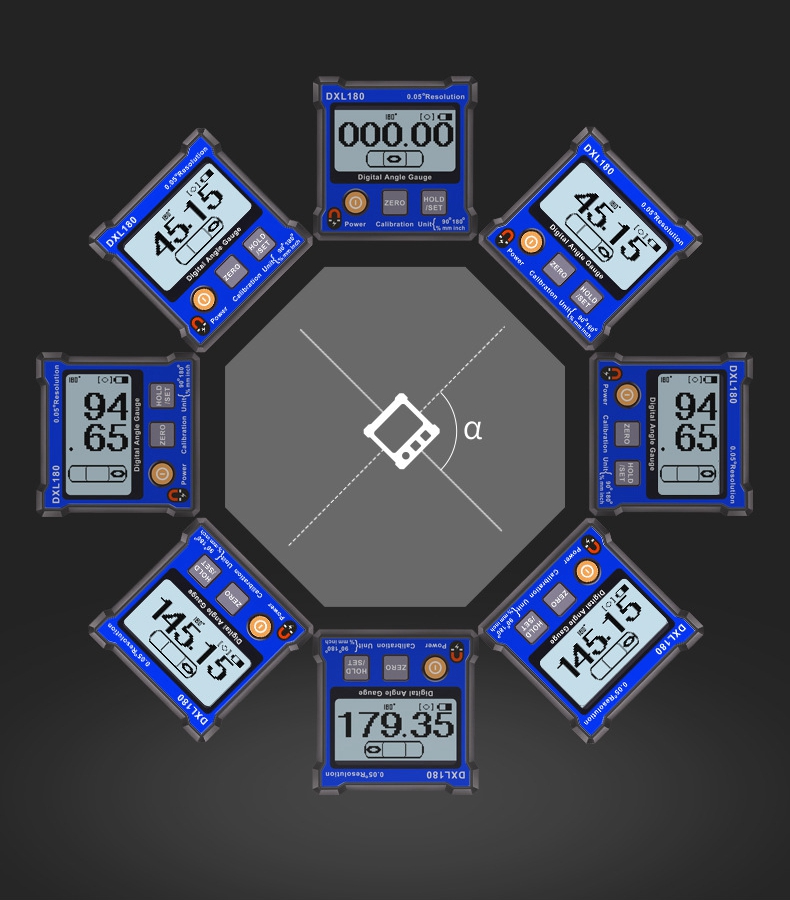

- 360° automatic flip reading, support 4x90°, 2x180° testing.

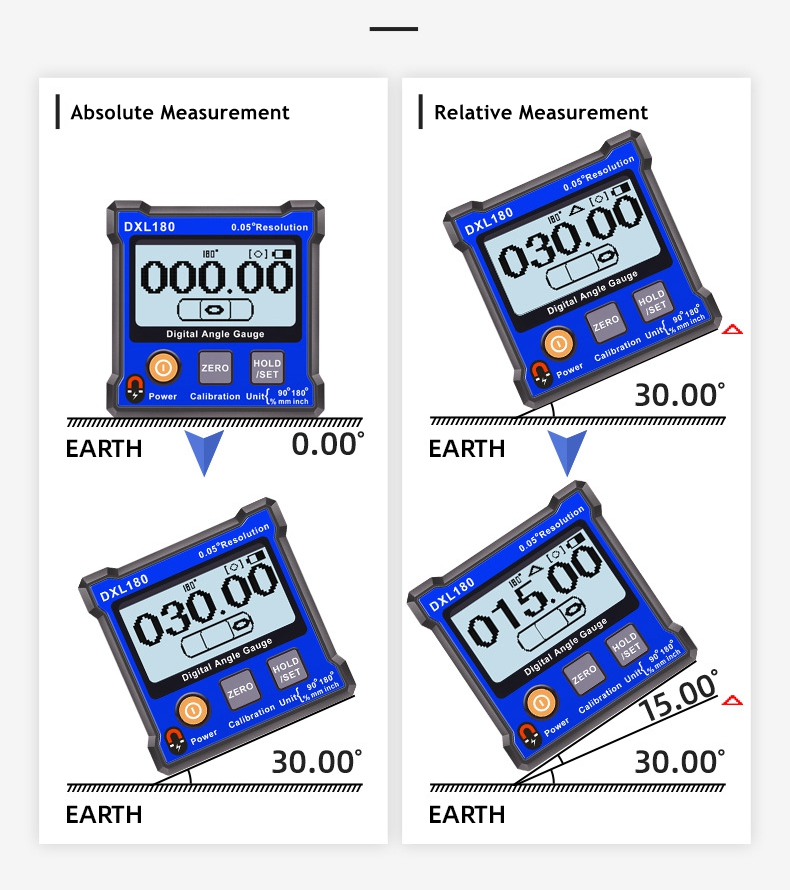

- Relative/absolute measuring mode switch.

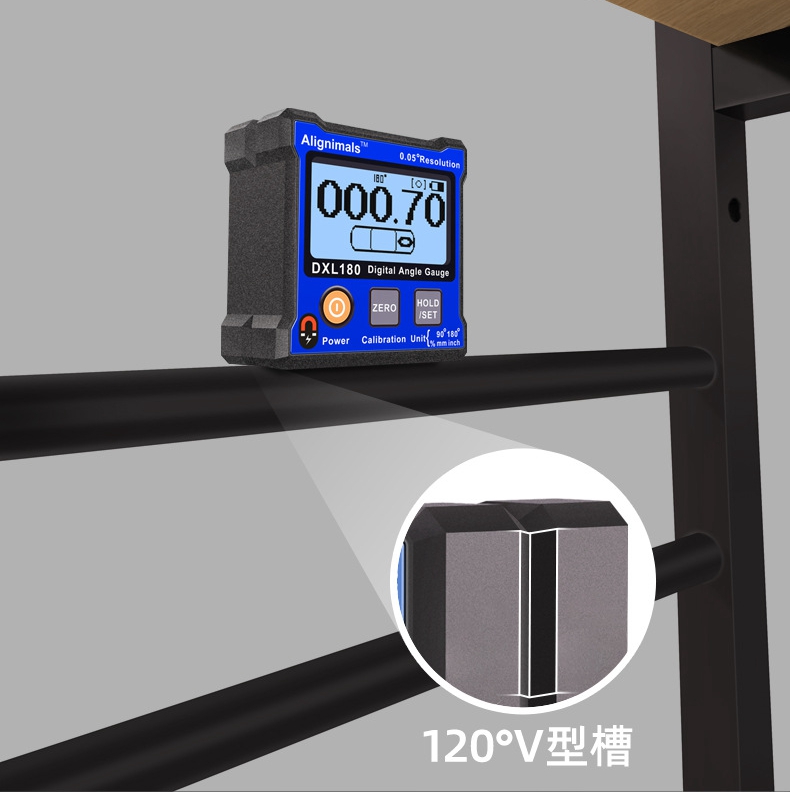

- The V-groove design of the shell can be easily placed on corners and round pipes.

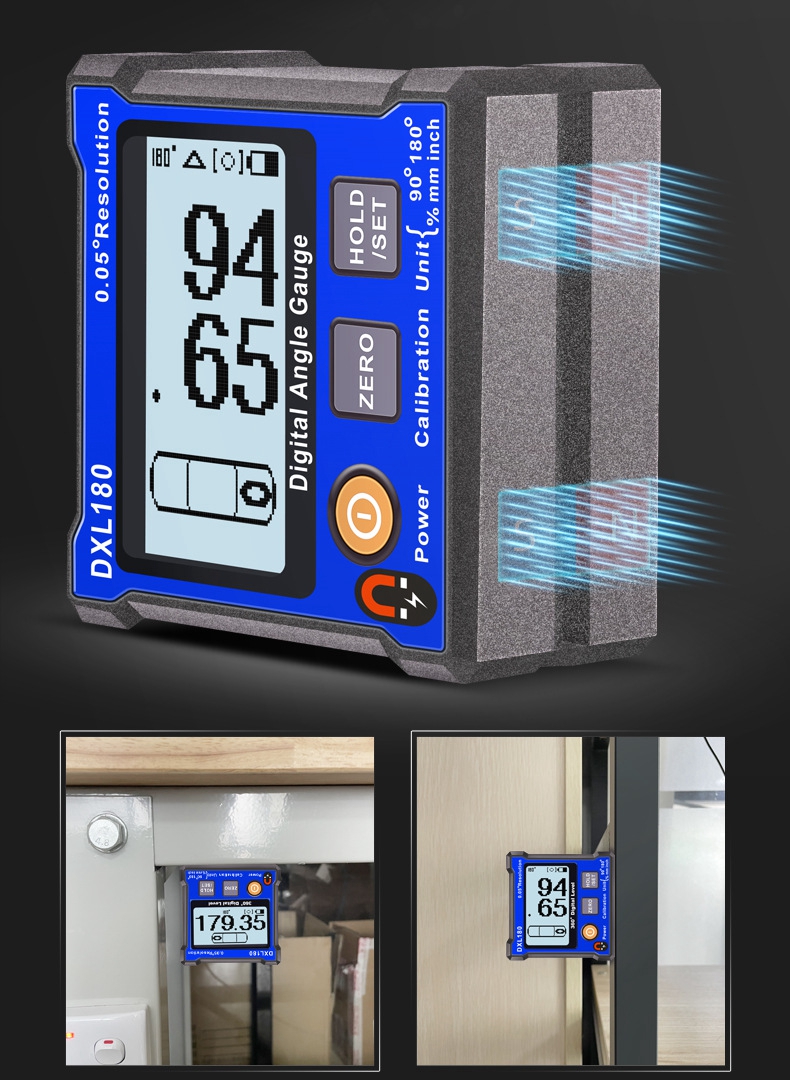

- There are 4 strong magnets on the bottom surface.
- Simulated electronic bubble.
- Dust + Water IP42 resistant, 2M drop test.
- Triple energy-saving design.
Specification:
- Units: 90°,180°, %, mm/M, inches/Feet
- Measurement Range:
90°[o] Degree 90°: 4x 0-90°
180°[o] Degree 180°: 2x 0-180°
[%] Slop Grade %: 4x 0-199.99%
[mm] mm/M: 4x 0-1999.9mm/M
[in] inches/Feet: 4x 0-24.00"/Ft
- Resolution: 0-90°: 0.05°, 0-180°: 0.05°
- Accuracy Degree: ±0.1° from 0° to 1°, 89° to 91°, 179° to 180°; ±0.2° at all other angles
- Operating/Storage Altitude: 6562 ft.(2000m)
- Operating/Storage temperature: 32° to 122°F (0° to 50°C)
- Operating/Storage humidity: <85% relative humidity
- User interface: 128x64 dot matrix backlight LCD
- Power consumption: operation: 15mA.
- Automatic shutdown: 15 minutes (No large movement duration), 4 hours (From power on)
- Dimensions: 2.36" x 2.36" x 1.20" (60mm x 60mm x 31mm)
- Weight: 3.3oz. (93g)
- Ingress protection: IP42 dust & water resistant
Package Included:
- 1 x Digital Angle Gauge
- 1 x Storage Bag
- 1 x User Manual
