DXL360S Dual Axis Digital Angle Protractor Magnetic Mini Inclinometer Angle Finder 0.01° Resolution

DXL360S Dual Axis Digital Angle Protractor Magnetic Mini Inclinometer Angle Finder 0.01° Resolution

DXL360S VS DXL360:
DXL360S:
- Dual axis accuracy ±0.05°
- Resolution 0.01°
- With gyroscope function

DXL360:
- Dual axis accuracy ±0.1°
- Resolution 0.02°
- Without gyroscope function

Features:
- Dual axis digital protractor
- High-precision testing and large LCD displays accuracy. The accuracy of DXL360S is ±0.05°, and the resolution is 0.01°. The accuracy of DXL360 is ±0.1°, and the resolution is 0.02°
- Built-in lithium battery: 3.7V rechargeable lithium battery can be charged via USB
- 5 sides with magnets, magnetic field at 360°. There are strong magnetism around the inside of the instrument, which can adsorb iron objects for a long time
- Buzzer alarm function: You can set the sound alarm angle range, which is convenient for product inspection or experimental research. Long press Buzzer button to set the buzzer alarm
- Two modes of measurement: standard mode measurement and relative mode measurement. Short press the ZERO button to set the current plane as the zero plane. Press the ZERO button, a triangle icon will appear in the upper right corner of the display
- Automatic reverse display , automatic calibration, simulated bubble, cylindrical measurement
- Data transmission: Users can purchase an additional adapter to transmit the data of the meter. Optional SV-BT Bluetooth adapter is for Android cellphones only, users can view data on the phone. Optional SVRS232 USB adapter can be connected to a computer to transfer data. The stored data can be viewed through computer software and txt files
- Dual-axis test: Dual-axis measurement mode: The instrument is placed flat on the measurement surface, and the dual-axis measurement range is ±40°. Single-axis measurement mode: the instrument is placed on the measurement surface upright, the single-axis measurement range is ±360°, and the display angle: ±0° to 90°
- Angle measurement mode (DXL360S gyroscope function): It can measure the angle between any planes in space with a measurement accuracy of 0.5°. The virtual gyroscope axis is in our product center. *Gyro function, please  not test continuously to reduce the accumulated error. When measuring, hold the axis of the product in your hand, keep the orientation of the axis unchanged, and move to a different plane for measurement
- Applicable fields: Machinery manufacturing, automobile maintenance, medical industry, wood processing, instrument testing, home decoration
- Measure the reference plane, back plane and bottom plane. Note: When measuring, please place the reference surface on the measured plane to measure the reading
- M4 screws can be used to fix the instrument to measure
- Three units, switch to display length/angle/percentage. Can display 1-meter tilt error (sine function), standard horizontal tilt angle and overall plane tilt
- V-groove is convenient for measuring cylindrical products
- Product application areas: professional billiard room, construction measurement, product qualification verification, data collection and analysis, medical industry

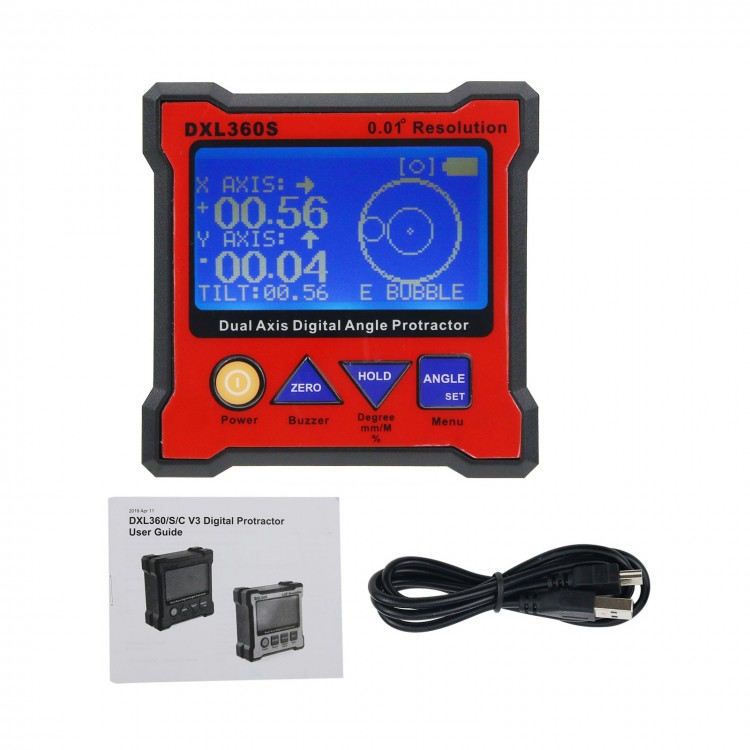

Package Included:
- 1 x Set of DXL360S Angle Protractor

Note:
- You need a waist holder for the main unit, please contact us to pay extra money when purchasing. Thank you!

FAQ:
Q1: What is the accuracy of the inclinometer? Can it be cleared?
A1: The accuracy of DXL360 is ±0.1°, and the accuracy of DXL360S is ±0.05°. You can manually press "ZERO" key to clear.

Q2: What is the difference between this dual-axis inclinometer and a bar level?
A2: The dual-axis inclinometer can test the inclination angle of the X-axis and Y-axis of the plane at the same time. The bar-shaped level can only test the inclination angle of one of the axes.

Q3: Can it test vertically?
A3: Yes. The measuring surface at the bottom or the side of inclinometer is attached to a vertical plane, and the inclination angle of the vertical plane can be measured.

Q4: It is a bit small, can it be used to measure large walls or tracks?
A4: The measuring surface of the level meter is small. It can test the overall inclination angle of large walls and tracks. You can fix a flat auxiliary measuring surface (such as steel plate, glass, etc.) on the measuring surface for testing.


Q5: Is it powered by a lithium battery? How long can it be used?
A5: The instrument has a lithium battery. After being fully charged, it can be used continuously for about 40 hours at a time, and it also has the function of automatically shutting down when it is not used for 30 minutes.

Q6: Can it be connected to a computer and mobile phone to transfer data?
A6: Yes. An adapter is required to transfer data. Computer software and mobile APP make data transmission and storage very convenient.
