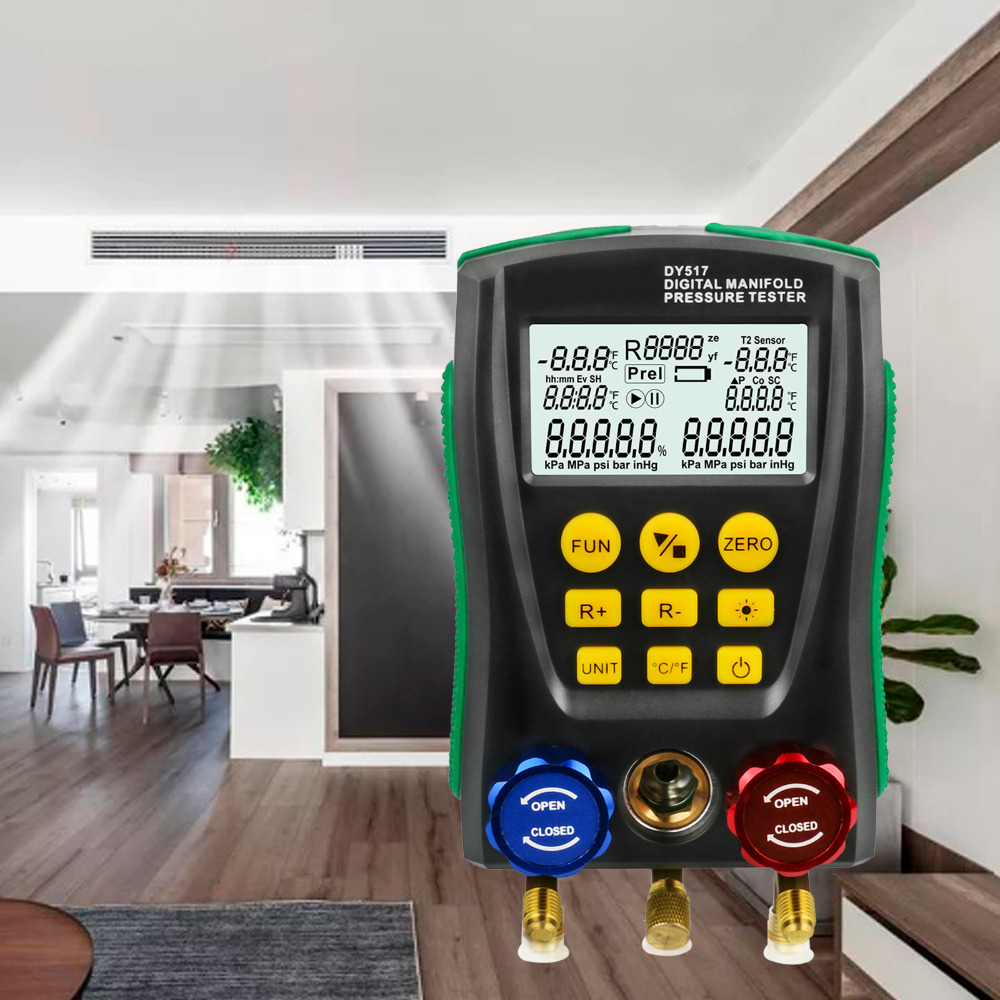

DY517 Refrigerant Pressure Gauge Digital Manifold Pressure Tester for Car Household Air Conditioner

DY517 Refrigerant Pressure Gauge Digital Manifold Pressure Tester for Car Household Air Conditioner

Description:
The intelligent electronic refrigerant group instrument is an auxiliary instrument for the installation, testing and maintenance of refrigeration equipment such as air conditioners and cold storage.

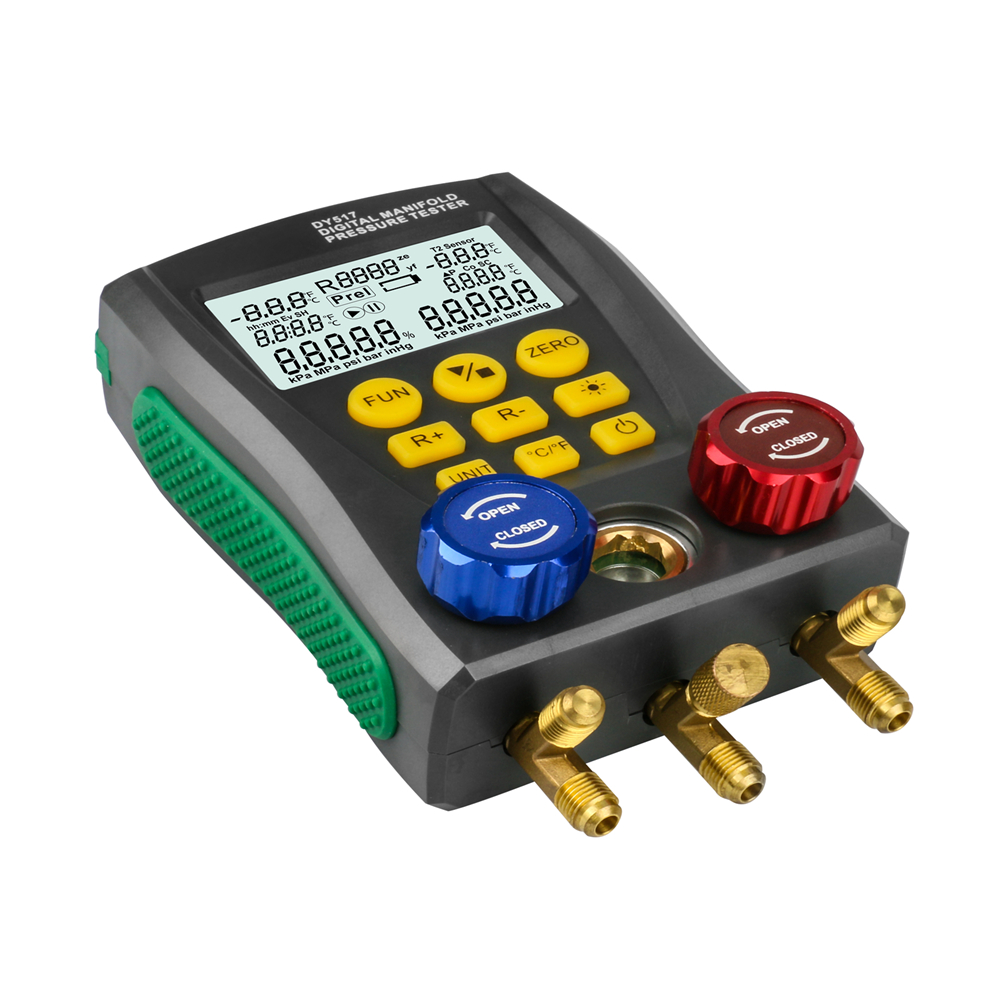

The instrument has double pressure test, dual temperature test (need test clip,not include), digital readout, multi-unit switching, multi-mode function and built-in refrigerant database. The instrument uses high-strength engineering plastics and flexible non-slip silicone design, the whole machine is solid and comfortable to hold. Built-in 32-bit digital processing unit and high-precision data acquisition unit, high data and stability.

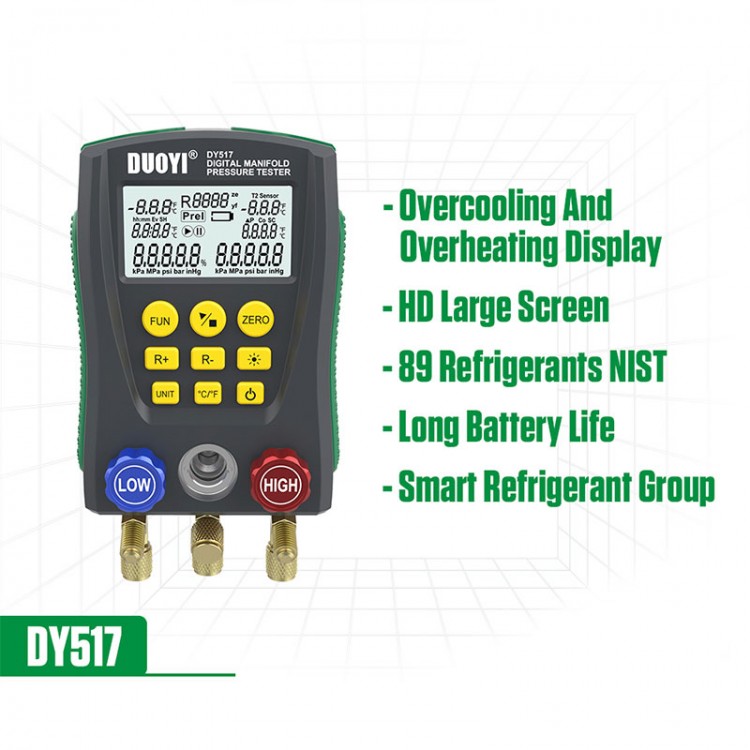

Features:
- Large-size liquid crystal display, LCD backlight support, data display clear and easy to read, convenient light operation. Long-life valve switch, 1/4-inch standard interface design to ensure that the instrument's durability and versatility.
- The instrument can measure double pressure (gauge pressure) at the same time, as well as dual temperature measurement, with automatic multi-unit pressure conversion, automatic conversion of temperature Celsius / Fahrenheit, to facilitate different needs.
- Built-in 89 kinds of refrigerant pressure-evaporation temperature database, also calculate the sub-cooling super-heat, to facilitate direct reading of operating process data.

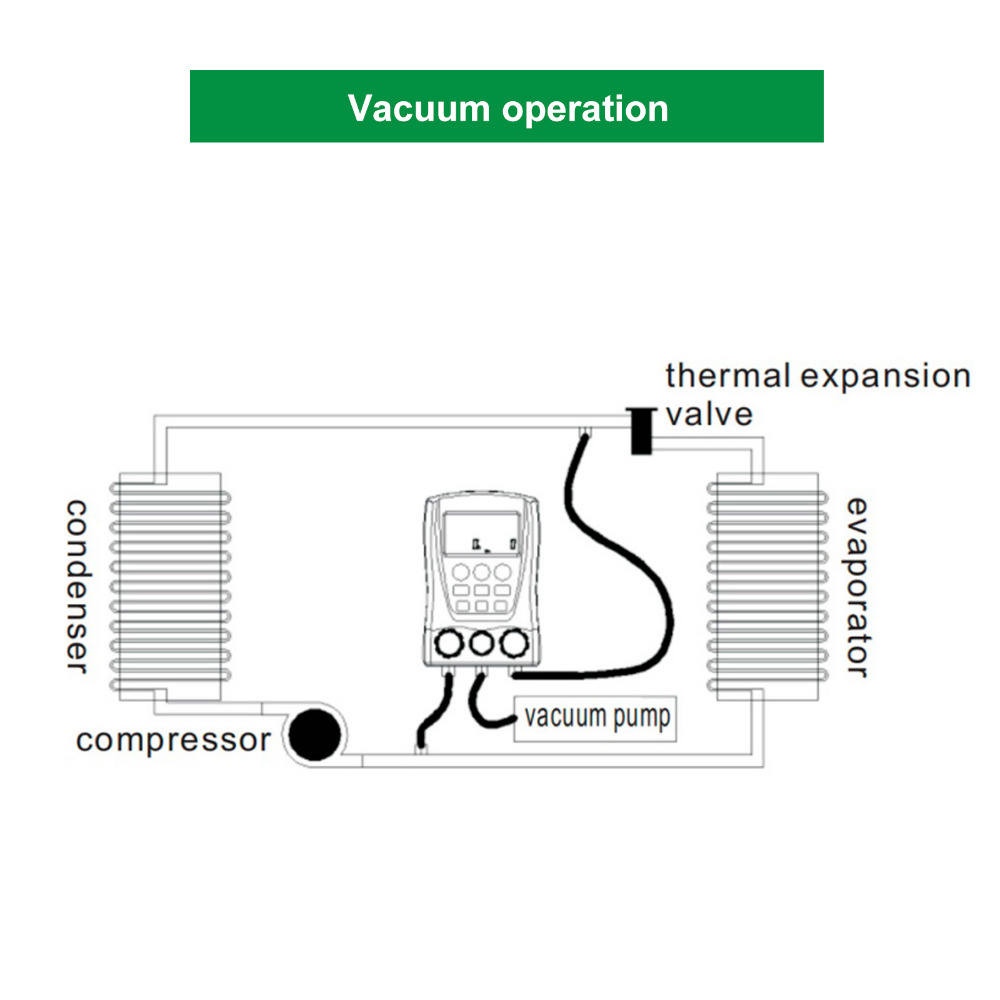

- Also it tests percentage of vacuum measurement; pressure leak measurement, leak time speed record. It is deserved to have this multi-functional, accurate and simply operated digital manifold let you do the job right.

Specifications:
- Pressure test: gauge pressure
- Pressure test unit: Kpa; Mpa; bar; inHg; PSI.
- Pressure test range: 0 Kpa – 6000 Kpa
- Pressure test resolution: 1 Kpa
- Pressure test accuracy: +/- 0.5 %(FS)+ 5dgt
- Pressure overload limit: 10000 Kpa (10 Mpa; 100 bar;)
- Vacuum test: relative vacuum
- Vacuum test unit: Kpa; Mpa; bar; inHg; PSI.
- Vacuum test range: -101 Kpa – 0 Kpa
- Vacuum test resolution: 1 Kpa
- Temperature test unit: °C (Celsius) and °F (Fahrenheit)
- Temperature test range: -40°C to 150°C (-40°F to 302°F)
- Temperature test resolution: 0.1°C (-40°C to 99.9°C), 1°C (100°C–150°C), 0.1°F (-40°F to 99.9°F), and 1°F (100°F–302°F)
- Temperature test accuracy: +/- 0.5 °C + 2dgt; +/- 0.9 °F + 2dgt

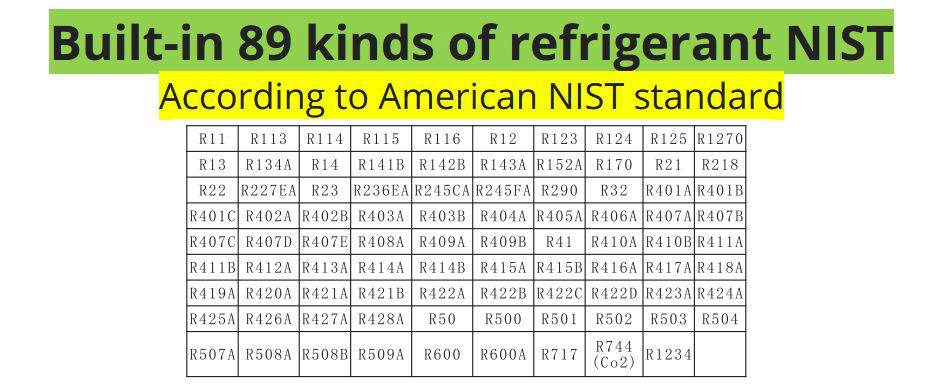

- Built-in 89 kinds of refrigerant NIST: According to American NIST standard

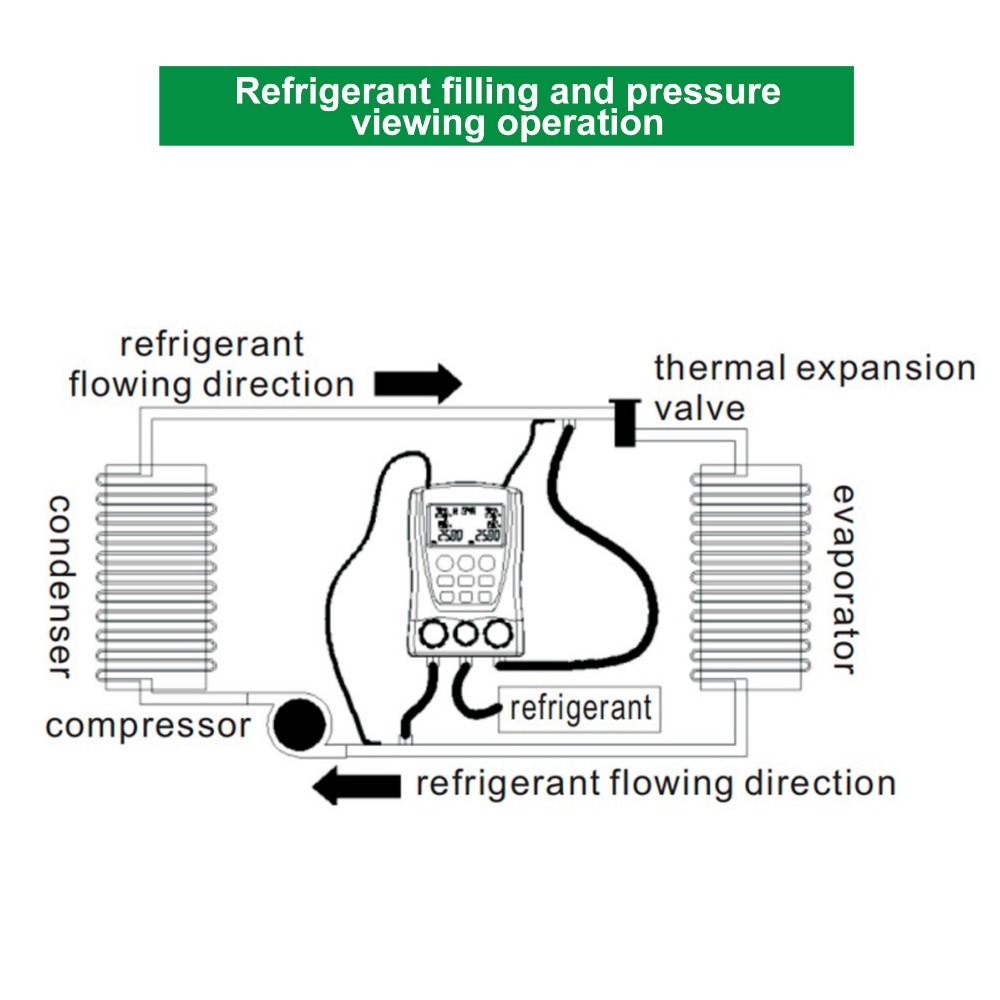

- Refrigerant table, suitable for automotive air conditioning, household air conditioning, refrigerator, freezer, etc., mainly measuring temperature and pressure

Package Included:
- 1 x Main Unit
- 1 x User Manual
- 1 x Product Quality Certificate

Note:
- Batteries (4*1.5V AA/LR6) are not included.
- DY517 does not include the test clip (need to be purchased separately).
- Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
- Please allow slight measuring deviation due to manual measurement.

EC/EN61010-1 safety standards for design and production.

Safety Rules and Precautions:
1) The pressure measured by the digital manifold pressure tester is gauge pressure.
2) Pressure testing ranges from -101Kpa to 6Mpa (-0.1bar to 60bar).
3) The limit pressure is 10 Mpa (100 bar).
4) The maximum operating pressure of standard hose is 600 PSI ( approximate 4.13 Mpa, 41.3 bar ). The limit pressure is 3000 PSI approximate 20.68 Mpa, 206.8 bar ).
5) Please confirm the rated pressure value of the tested equipment before testing. Do not use it if it exceeds the range of the instrument.
6) Do not use and store the instrument in high temperature, high humidity, flammable, explosive and strong electromagnetic fields.
7) Please do not change the instrument internal circuit, to avoid any damage of the instrument or danger occurring.
8) Please wear qualified protective equipment to protect user during testing.
9) Please use the instrument in a well-ventilated environment to prevent inhalation of toxic gases.
