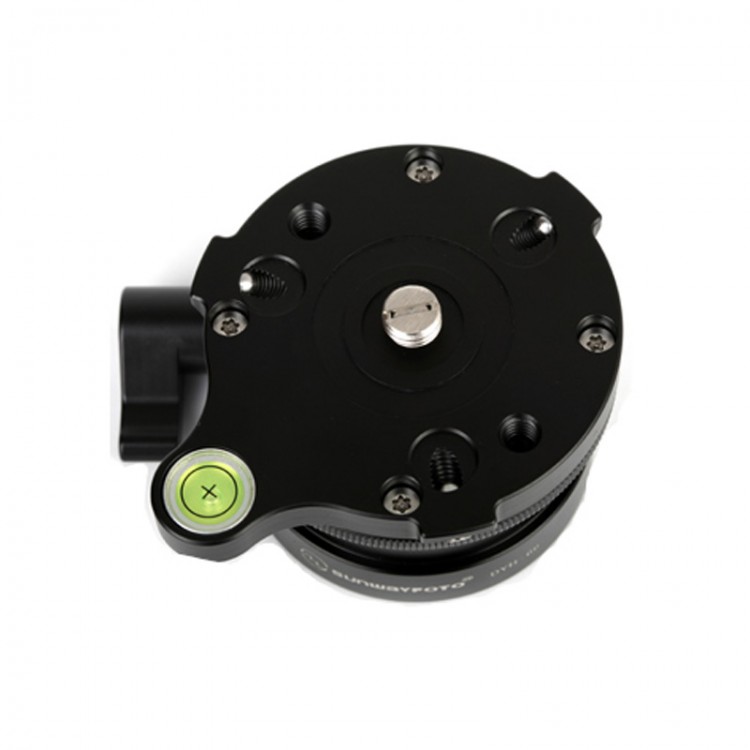

DYH-66i Tripod Leveling Base Leveling Head Load Capacity 10KG For DSLR Camera Tripod
Description:

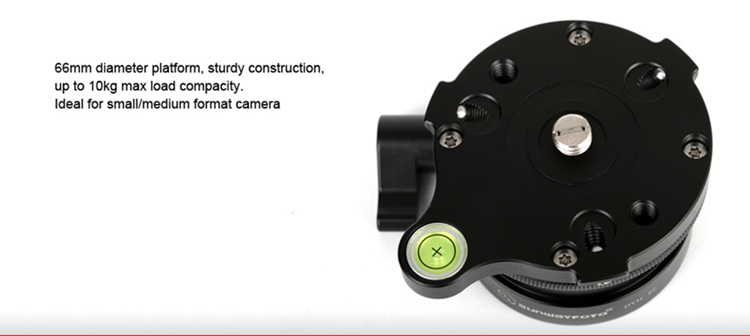

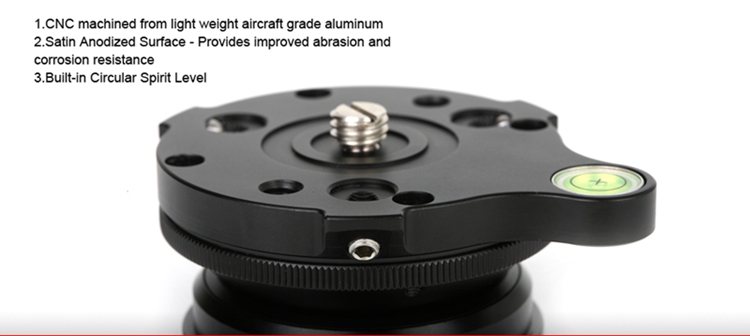

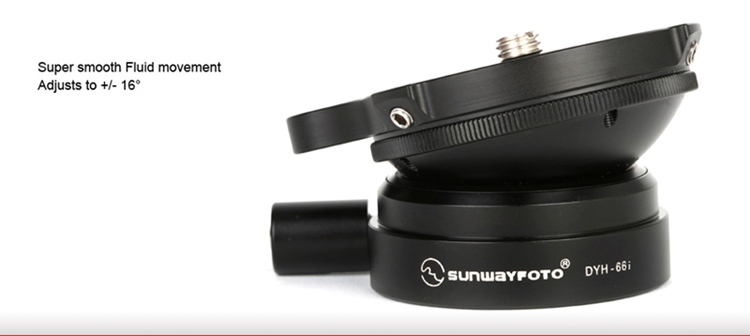

DYH-66i Leveling Base adopt CNC cutting machine from light weight aircraft-grade aluminum, stain anodized surface finish for better abrasion and corrosion resistant. Come with 66mm diameter platform, sturdy construction, up to 10kg max load capacity and super smooth fluid of adjust movement to +/-16 degree. It is ideal for small/medium format camera.
Features:
- Build-in bubble level.
- Three screws on the top base for stability.
- Two UNC 1/4" mounting thread for mounting the 64mm discal clamp.
Note: The base locking captive knob can be adjusted at different positions. If the Captive Locking Knob Lever interferes with other equipment when turned, you may pull out the knob, and relocate it in a more convenient position.
Specifications:
- Model: DYH-66i
- Platform Diameter: 66mm
- Bottom Base: 60mm
- Height: 45mm
- Mounting screw: 1/4"-20
- Mounting hole: UNC 3/8"
- Net. Weight: 295g
Package Included:
- 1 x Set of Leveling Base
